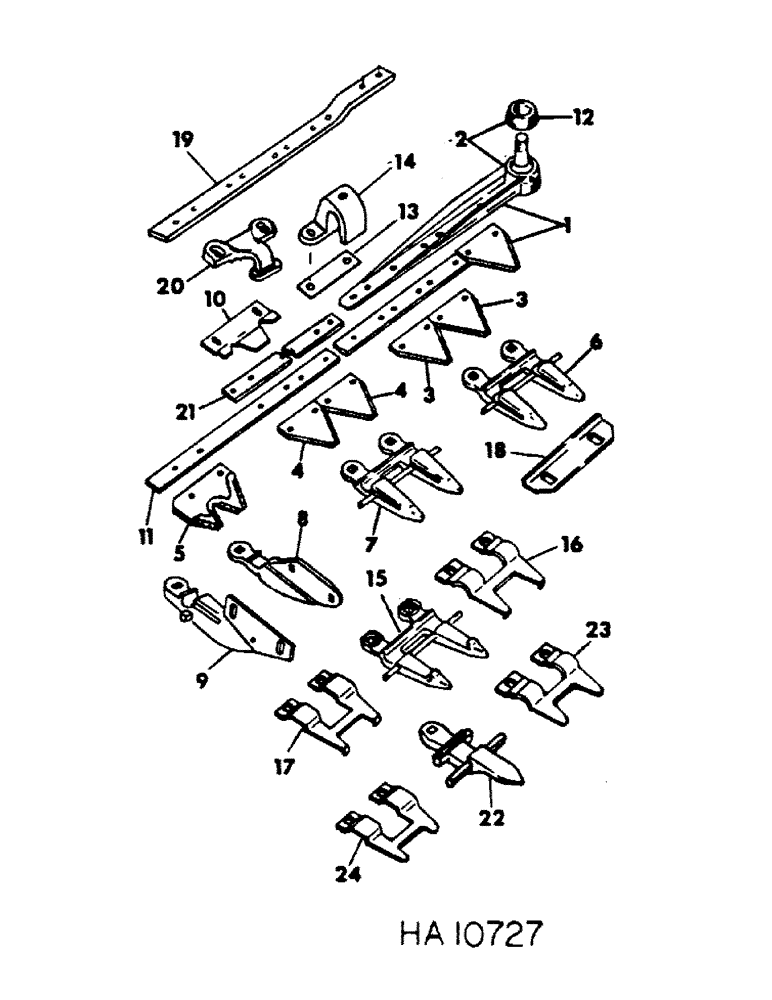

Запчасти Case IH DRAPER (B-20) - DRAPER HEADER, KNIFE AND GUARDS (14) - CROP CUTTING
№
Артикул
Название
Примечание
Количество
1
824704C94
KNIFE
ASSY, 10-1/2 ft w/chrome plated underserrated sections, for service order 827812C91 knife assy w/595648R1 guide, 2-595213R1 shim and 2-609826R1 bolt required for first conversion only, consists of
1шт.
824708C1
BAR
1шт.
824595C1
REINFORCEMENT
1шт.
824594C91
END ASSY.
END ASSY
1шт.
823711C2
KNIFE SECTION
SECTION
4шт.
457607R2
KNIFE SECTION
SECTION
36шт.
146200C1
SECTION
1шт.
990325R91
RIVET
1шт.
990727R91
RIVET
7шт.
990719R91
RIVET
RIVET
7шт.
991014R91
KIT
RIVET
67шт.
103386
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
1шт.
1
827812C91
KNIFE
ASSY, 10-1/2 ft w/chrome plated underserrated sections, consists of
1шт.
825073C1
BAR
1шт.
827733C1
REINFORCEMENT
1шт.
824594C91
END ASSY.
END ASSY
1шт.
823711C2
KNIFE SECTION
SECTION
4шт.
457607R2
KNIFE SECTION
SECTION
36шт.
148200C1
KNIFE SECTION
SECTION
1шт.
990727R91
RIVET
3шт.
990325R91
RIVET
1шт.
104087
RIVET,But Hd, 1/4" x 1 1/4"
4шт.
14765R1
RIVET,Oval Hd, .203" x 15/16"
17шт.
991014R91
KIT
RIVET
57шт.
103386
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
1шт.
1
824506C94
KNIFE
ASSY, 12-1/2 ft w/chrome plated underserrated sections, for service order 827813C91 knife assy w/595648R1 guide, 2-595213R1 shim and 2-609826R1 bolts required for first conversion only, consists of
1шт.
824708C1
BAR
1шт.
824595C1
REINFORCEMENT
1шт.
824594C91
END ASSY.
END ASSY
1шт.
823711C2
KNIFE SECTION
SECTION
4шт.
457607R2
KNIFE SECTION
SECTION
44шт.
148200C1
KNIFE SECTION
SECTION
1шт.
990325R91
RIVET
1шт.
990727R91
RIVET
7шт.
990719R91
RIVET
RIVET
7шт.
991014R91
KIT
RIVET
83шт.
103386
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
1шт.
1
827813C91
KNIFE ASSY
12-1/2 ft w/chrome plated underserrated sections, consists of
1шт.
825073C1
BAR
1шт.
827733C1
REINFORCEMENT
1шт.
824594C91
END ASSY.
END ASSY
1шт.
823711C2
KNIFE SECTION
SECTION
4шт.
457607R2
KNIFE SECTION
SECTION
44шт.
148200C1
KNIFE SECTION
SECTION
1шт.
990727R91
RIVET
3шт.
990325R91
RIVET
1шт.
104087
RIVET,But Hd, 1/4" x 1 1/4"
4шт.
14765R1
RIVET,Oval Hd, .203" x 15/16"
17шт.
991014R91
KIT
RIVET
73шт.
103386
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
1шт.
1
831606C93
KNIFE
ASSY, 12-1/2 ft w/chrome plated overserrated sections, for service order 827719C91 knife assy w/595648R1 guide, 2-595213R1 shim and 2-609826R1 bolt required for first conversion only, consists of
1шт.
824708C1
BAR
1шт.
824595C1
REINFORCEMENT
1шт.
824594C91
END ASSY.
END ASSY
1шт.
823713C2
KNIFE SECTION
SECTION
4шт.
596321R3
KNIFE SECTION
SECTION
44шт.
148200C1
KNIFE SECTION
SECTION
1шт.
990727R91
RIVET
7шт.
990325R91
RIVET
1шт.
990719R91
RIVET
RIVET
7шт.
991014R91
KIT
RIVET
83шт.
103386
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
1шт.
1
827719C91
KNIFE ASSY
12-1/2 ft w/chrome plated overserrated sections, consists of
1шт.
825073C1
BAR
1шт.
827733C1
REINFORCEMENT
1шт.
824594C91
END ASSY.
END ASSY
1шт.
823713C2
KNIFE SECTION
SECTION
4шт.
596321R3
KNIFE SECTION
SECTION
44шт.
148200C1
KNIFE SECTION
SECTION
1шт.
990727R91
RIVET
3шт.
990325R91
RIVET
1шт.
104087
RIVET,But Hd, 1/4" x 1 1/4"
4шт.
14765R1
RIVET,Oval Hd, .203" x 15/16"
17шт.
991014R91
KIT
RIVET
73шт.
103386
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
1шт.
1
824705C94
KNIFE
ASSY, 14-1/2 ft w/chrome plated underserrated sections, for service order 827814C91 knife assy w/595648R1 guide 2-595213R1 shim and 2-609826R1 bolt required for first conversion only, consists of
1шт.
824708C1
BAR
1шт.
824595C1
REINFORCEMENT
1шт.
824594C91
END ASSY.
END ASSY
1шт.
823711C2
KNIFE SECTION
SECTION
4шт.
457607R2
KNIFE SECTION
SECTION
52шт.
148200C1
KNIFE SECTION
SECTION
1шт.
990325R91
RIVET
1шт.
990727R91
RIVET
7шт.
990719R91
RIVET
RIVET
7шт.
991014R91
KIT
RIVET
99шт.
103386
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
1шт.
1
827814C91
KNIFE ASSY
14-1/2 ft w/chrome plated underserrated sections, consists of
1шт.
827073C1
BOLT,Hex, 7/16" - 14 x 4.52", Cl 12.9
BAR
1шт.
827733C1
REINFORCEMENT
1шт.
824594C91
END ASSY.
END ASSY
1шт.
823711C2
KNIFE SECTION
SECTION
4шт.
457607R2
KNIFE SECTION
SECTION
52шт.
148200C1
KNIFE SECTION
SECTION
1шт.
990727R91
RIVET
3шт.
990325R91
RIVET
1шт.
104087
RIVET,But Hd, 1/4" x 1 1/4"
4шт.
14765R1
RIVET,Oval Hd, .203" x 15/16"
52шт.
991014R91
KIT
RIVET
89шт.
103386
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
1шт.
1
831607C93
KNIFE
ASSY, 14-1/2 ft w/chrome plated overserrated sections, for service order 827721C91 knife assy w/595648R1 guide, 2-595213R1 shim and 2-609826R1 bolt, required for first conversion only, consists of
1шт.
824708C1
BAR
1шт.
824595C1
REINFORCEMENT
1шт.
824594C91
END ASSY.
END ASSY
1шт.
823713C2
KNIFE SECTION
SECTION
4шт.
596321R3
KNIFE SECTION
SECTION
52шт.
148200C1
KNIFE SECTION
SECTION
1шт.
990727R91
RIVET
7шт.
990325R91
RIVET
1шт.
990719R91
RIVET
RIVET
7шт.
991014R91
KIT
RIVET
99шт.
103386
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
1шт.
1
827721C91
KNIFE ASSY
14-1/2 ft w/chrome plated overserrated sections
1шт.
825073C1
BAR
1шт.
827733C1
REINFORCEMENT
1шт.
824594C91
END ASSY.
END ASSY
1шт.
823713C2
KNIFE SECTION
SECTION
4шт.
596321R3
KNIFE SECTION
SECTION
52шт.
148200C1
KNIFE SECTION
SECTION
1шт.
990727R91
RIVET
3шт.
990325R91
RIVET
1шт.
104087
RIVET,But Hd, 1/4" x 1 1/4"
4шт.
14765R1
RIVET,Oval Hd, .203" x 15/16"
17шт.
991014R91
KIT
RIVET
73шт.
103386
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
1шт.
1
824705C94
KNIFE
ASSY, 14-1/2 ft w/chrome plated underserrated sections, for service order 827814C91 knife assy w/595648R1 guide, 2-595213R1 shim and 2-609826R1 bolt required for first conversion only, consists of
1шт.
824708C1
BAR
1шт.
824595C1
REINFORCEMENT
1шт.
824594C91
END ASSY.
END ASSY
1шт.
823711C2
KNIFE SECTION
SECTION
4шт.
457607R2
KNIFE SECTION
SECTION
52шт.
148200C1
KNIFE SECTION
SECTION
1шт.
990325R91
RIVET
1шт.
990727R91
RIVET
7шт.
990719R91
RIVET
RIVET
7шт.
991014R91
KIT
RIVET
99шт.
103386
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
1шт.
1
827814C91
KNIFE ASSY
14-1/2 ft w/chrome plated underserrated sections, consists of
1шт.
827073C1
BOLT,Hex, 7/16" - 14 x 4.52", Cl 12.9
BAR
1шт.
827733C1
REINFORCEMENT
1шт.
824594C91
END ASSY.
END ASSY
1шт.
823711C2
KNIFE SECTION
SECTION
4шт.
457607R2
KNIFE SECTION
SECTION
52шт.
148200C1
KNIFE SECTION
SECTION
1шт.
990727R91
RIVET
3шт.
990325R91
RIVET
1шт.
104087
RIVET,But Hd, 1/4" x 1 1/4"
4шт.
14765R1
RIVET,Oval Hd, .203" x 15/16"
52шт.
991014R91
KIT
RIVET
89шт.
103386
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
1шт.
1
831607C93
KNIFE
ASSY, 14-1/2 ft w/chrome plated overserrated sections, for service order 827721C91 knife assy w/595648R1 guide, 2-595213R1 shim and 2-609826R1 bolt required for first conversion only, consists of
1шт.
824708C1
BAR
1шт.
824595C1
REINFORCEMENT
1шт.
824594C91
END ASSY.
END ASSY
1шт.
823713C2
KNIFE SECTION
SECTION
4шт.
596321R3
KNIFE SECTION
SECTION
52шт.
148200C1
KNIFE SECTION
SECTION
1шт.
990727R91
RIVET
7шт.
990325R91
RIVET
1шт.
990719R91
RIVET
RIVET
7шт.
991014R91
KIT
RIVET
99шт.
103386
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
1шт.
1
827721C91
KNIFE ASSY
14-1/2 ft w/chrome plated overserrated sections, consists of
1шт.
825073C1
BAR
1шт.
827733C1
REINFORCEMENT
1шт.
824594C91
END ASSY.
END ASSY
1шт.
823713C2
KNIFE SECTION
SECTION
4шт.
596321R3
KNIFE SECTION
SECTION
52шт.
148200C1
KNIFE SECTION
SECTION
1шт.
990727R91
RIVET
3шт.
990325R91
RIVET
1шт.
104087
RIVET,But Hd, 1/4" x 1 1/4"
4шт.
14765R1
RIVET,Oval Hd, .203" x 15/16"
17шт.
991014R91
KIT
RIVET
89шт.
103386
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
1шт.
1
824508C94
KNIFE
ASSY, 16-1/2 ft w/chrome plated underserrated sections, for service order 827815C91 knife assy w/595648R1 guide, 2-595213R1 shim and 2-609826R1 bolts required for first conversion only, consists of
1шт.
824765C1
BAR
1шт.
824595C1
REINFORCEMENT
1шт.
824594C91
END ASSY.
END ASSY
1шт.
823711C2
KNIFE SECTION
SECTION
4шт.
457607R2
KNIFE SECTION
SECTION
60шт.
148200C1
KNIFE SECTION
SECTION
1шт.
990727R91
RIVET
7шт.
990325R91
RIVET
1шт.
990719R91
RIVET
RIVET
7шт.
991014R91
KIT
RIVET
115шт.
103386
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
1шт.
1
827815C91
KNIFE ASSY
16-1/2 ft w/chrome plated underserrated sections, consists of
1шт.
825075C1
BAR
1шт.
827733C1
REINFORCEMENT
1шт.
824594C91
END ASSY.
END ASSY
1шт.
823711C2
KNIFE SECTION
SECTION
4шт.
990325R91
RIVET
1шт.
990727R91
RIVET
3шт.
104087
RIVET,But Hd, 1/4" x 1 1/4"
4шт.
14765R1
RIVET,Oval Hd, .203" x 15/16"
17шт.
457607R2
KNIFE SECTION
SECTION
60шт.
148200C1
KNIFE SECTION
SECTION
1шт.
991014R91
KIT
RIVET
115шт.
103386
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
1шт.
1
824706C94
KNIFE
ASSY, 19-1/2 ft w/chrome plated underserrated sections, for service order 827816C91 knife assy w/595648R1 guide, 2-595213R1 shim and 2-609826R1 bolts required for first conversion only, consists of
1шт.
824765C1
BAR
1шт.
824594C91
END ASSY.
END ASSY
1шт.
823711C2
KNIFE SECTION
SECTION
4шт.
990325R91
RIVET
1шт.
990727R91
RIVET
7шт.
990719R91
RIVET
RIVET
7шт.
457606R1
KNIFE SECTION
SECTION
72шт.
148200C1
KNIFE SECTION
SECTION
1шт.
991014R91
KIT
RIVET
139шт.
824595C1
REINFORCEMENT
1шт.
1
827816C91
KNIFE
ASSY, 16-1/2 ft w/chrome plated underserrated sections, consists of
1шт.
825075C1
BAR
1шт.
827733C1
REINFORCEMENT
1шт.
824594C91
END ASSY.
END ASSY
1шт.
823711C2
KNIFE SECTION
SECTION
4шт.
990325R91
RIVET
1шт.
990727R91
RIVET
3шт.
104087
RIVET,But Hd, 1/4" x 1 1/4"
4шт.
14765R1
RIVET,Oval Hd, .203" x 15/16"
17шт.
457607R2
KNIFE SECTION
SECTION
72шт.
148200C1
KNIFE SECTION
SECTION
1шт.
991014R91
KIT
RIVET
129шт.
103386
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
1шт.
1
827830C91
KNIFE
ASSY, 24-1/2 ft w/chrome plated underserrated sections, replaces 832011C93, consists of knife assy, LH (NSS), knife assy, RH (NSS), bar, LH & RH (NSS)
1шт.
824594C91
END ASSY.
END ASSY
1шт.
827733C1
REINFORCEMENT
1шт.
823711C2
KNIFE SECTION
SECTION
4шт.
990325R91
RIVET
1шт.
990727R91
RIVET
3шт.
104087
RIVET,But Hd, 1/4" x 1 1/4"
4шт.
14763R1
RIVET,Oval Hd, .203" x 7/8"
17шт.
457606R2
KNIFE SECTION
SECTION
92шт.
991014R91
KIT
RIVET
159шт.
148200C1
KNIFE SECTION
SECTION
1шт.
825929C1
BAR
1шт.
103386
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
1шт.
KNIFE ASSY, LH 24-1/2 ft w/underserrated cr-plated sections, for service order 1-827830C91 knife assy, consists of
1шт.
824594C91
END ASSY.
END ASSY
1шт.
BAR (NSS)
1шт.
823711C2
KNIFE SECTION
SECTION
2шт.
990325R91
RIVET
1шт.
990727R91
RIVET
3шт.
104087
RIVET,But Hd, 1/4" x 1 1/4"
4шт.
990719R91
RIVET
RIVET
7шт.
457606R2
KNIFE SECTION
SECTION
51шт.
991014R91
KIT
RIVET
84шт.
827733C1
REINFORCEMENT
1шт.
KNIFE ASSY, RH 24-1/2ft w/underserrated cr-plated sections, for service order 1-827 830C91 knife assy, consists of
1шт.
BAR (NSS)
1шт.
457606R2
KNIFE SECTION
SECTION
39шт.
148200C1
KNIFE SECTION
SECTION
1шт.
19869R1
RIVET Oval Hd, .211" x 9/16"
75шт.
14763R1
RIVET,Oval Hd, .203" x 7/8"
5шт.
2
824594C91
END ASSY.
END ASSY, knife head w/step, replaces 824812C94 end assy w/o step, consists of (1) head (NSS), (1) nut 102903H1, (1) seal 194690R1
1шт.
102903H1
NUT
5/8-18 slotted hex
1шт.
103386
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
1шт.
3
823711C2
KNIFE SECTION
SECTION, underserrated cr-pltd LH
4шт.
3
823713C2
KNIFE SECTION
SECTION, overserrated cr-pltd LH
4шт.
990727R91
RIVET
1/4 x 1-1/8 button hd small solid, 1 lb pkg
7шт.
990323R91
PACKAGE
RIVET, 1/4 x 3/4 pln but/hd sol, 1 lb pkg
1шт.
990325R91
RIVET
1/4 x 1 pln but/hd sol, 1 lb pkg
1шт.
990719R91
RIVET
RIVET, no. 6 x 7/8 pln o-hd, 1 lb pkg
7шт.
4
457606R2
KNIFE SECTION
SECTION, cr-pltd underserrated 19-1/2 & 24-1/2 ft, 72 used 19-1/2 ft, 92 used 24-1/2 ft
1шт.
4
457607R2
KNIFE SECTION
SECTION, cr-pltd underserrated, 10-1/2, 12-1/2, 14-1/2, & 16-1/2 ft, 36 used 10-1/2 ft, 44 used 12-1/2 ft, 52 used 14-1/2 ft, 60 used 16-1/2 ft
1шт.
4
596321R3
KNIFE SECTION
SECTION, overserrated 12-1/2 ft and 14-1/2 ft, 44 used 12-1/2 ft, 52 used 14-1/2 ft
1шт.
991014R91
KIT
RIVET, #5-1/2 x 9/16 small ov hd, 2 per section, 1 lb pkg
1шт.
5
467456R1
KNIFE SECTION
SECTION, cr-pltd underserrated triple RH, 120 ga, for service order 148200C1 section, 10-1/2, 12-1/2, 14-1/2 & 16-1/2 underserrated knife assy
1шт.
5
467458R1
X
SECTION, cr-pltd underserrated triple RH .083 ga, for service order 148200C1 section, 19-1/2 & 24-1/2 ft underserrated knife assy
1шт.
5
148200C1
KNIFE SECTION
SECTION, cr-pltd overserrated double
1шт.
991014R91
KIT
RIVET, #5-1/2 x 9/16 small ov hd, 1 lb pkg
2шт.
6
483500R3
GUARD
knife double, standard, LH
3шт.
187346A1
GUARD
double heat treatyed
3шт.
592722R1
BOLT,7/16"-14 x 1 5/16", G5
7/16-14 x 1-5/16 type 5 no. 3 plow
3шт.
592724R1
CARRIAGE BOLT,#3, 7/16" - 14 x 1 9/16", Gr 5
BOLT, 7/16-14 x 1-9/16 type 5 no. 3 plow
1шт.
609826R1
BOLT,7/16"-14 x 1 3/4", G5
7/16-14 x 1-3/4 type 5 no. 3 plow
1шт.
18696R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/2", Gr 2
BOLT, 7/16-14 x 1-1/2 type 1 crg
1шт.
271501
SOCKET
NUT, 7-16-14 hex
6шт.
7
613838R2
GUARD
knife double, standard, 17 used 10-1/2 ft, 21 used 12-1/2 ft, 25 used 14-1/2 ft, 29 used 16-1/2 ft, 35 used 19-1/2 ft, 45 used 24-1/2 ft
1шт.
187350A1
GUARD
double heat treated
1шт.
592722R1
BOLT,7/16"-14 x 1 5/16", G5
7/16-14 x 1-5/16 type 5 no. 3 plow, 19 used 10-1/2 ft, 19 used 12-1/2 ft, 23 used 14-1/2 ft, 27 used 16-1/2 ft, 33 used 19-1/2 ft, 43 used 24-1/2 ft
1шт.
592724R1
CARRIAGE BOLT,#3, 7/16" - 14 x 1 9/16", Gr 5
BOLT, 7/16-14 x 1-9/16 type 5 no. 3 plow, 16 used 10-1/2 ft, 18 used 12-1/2 ft, 22 used 14-1/2 ft, 26 used 16-1/2 ft, 32 used 19-1/2 ft, 38 used 24-1/2 ft
1шт.
NLS
NO LONGER SERVICED
NUT, 7/16-14 hex, 1 per bolt
1шт.
8
540603R2
FINGER
GUARD, knife single RH prior to serial no. 2501
1шт.
9
831487C2
GUARD
knife single RH serial no. 2501 and since
1шт.
495967R1
CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd
BOLT, 3/8-16 x 1 crg bolt
2шт.
18696R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/2", Gr 2
BOLT, 7/16-14 x 1-1/2 type 1 crg
1шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
271501
SOCKET
NUT, 7/16-14 hex
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
10
613842R2
GUIDE
CLIP, knife hold down, 8 used 10-1/2 ft, 9 used 12-1/2 ft, 11 used 14-1/2 ft, 13 used 16-1/2 ft, 16 used 19-1/2 ft and 19 used 24-1/2 ft
1шт.
11
BAR, knife back, for service for 10-1/2, 12-1/2 & 14-1/2 ft order 1-824708C1 knife bar, for service for 16-1/2 & 19-1/2 ft order 1-824765C1 knife bar for service on 24-1/2 ft order knife assy
1шт.
12
194690R1
SEAL ASSY.
SEAL, knife head end
1шт.
13
595213R1
STRIP
SHIM, hold down clip and guide
1шт.
14
824981C1
GUIDE
high arch
1шт.
609826R1
BOLT,7/16"-14 x 1 3/4", G5
7/16-14 x 1-3/4 type 5 no. 3 plow
2шт.
NLS
NO LONGER SERVICED
NUT, 7/16-14 hex
2шт.
15
58600C1
GUARD ASSY.
GUARD, strut, 17 used 10-1/2 ft, 21 used 12-1/2 ft. 25 used 14-1/2 ft, 29 used 16-1/2 ft. 35 used 19-1/2 ft and 45 used 24-1/2 ft, for use in extremely rock conditions
1шт.
16
58601C1
CLIP
low arch, strut, 1 per guard, for use in extremely rocky conditions
1шт.
17
58602C1
CLIP
high arch, strut, for used in extremely rock conditions
2шт.
18
179759C1
PLATE
knife wear, for strut and stub guards
1шт.
19
824595C1
REINFORCEMENT
knife back, 42 in. length, for service order 827733C1 reinforcement w/595648C1 guide, 2-595213R1 shim and 2-609826R1 bolts, required for first conversion only
1шт.
19
827733C1
REINFORCEMENT
knife back, 32 in. length
1шт.
20
595648R1
GUIDE
HOLDER, knife high arch, 2 used 10-1/2 ft, 12-1/2 ft, 14-1/2 ft, 16-1/2 ft and 19-1/2 ft, 4 used 24-1/2 ft, not for use w/strut or stub guards
1шт.
14763R1
RIVET,Oval Hd, .203" x 7/8"
#6 x 7/8 small oval hd
5шт.
21
825929C1
BAR
extension connection, 24-1/2 ft.
1шт.
22
472717R2
GUARD
single, stub, 38 used 10-1/2 ft, 46 used 12-1/2 ft, 54 used 14-1/2 ft, 62 used 16-1/2 ft, 74 used 19-1/2 ft and 94 use 24-1/2 ft, for used when excessive plugging of standard guards occurs
1шт.
23
101831C2
CLIP
low arch, stub, 1 per two guard, for use when excessive plugging of standard guards occurs
1шт.
24
101832C2
CLIP
high arch, stub, 2 used 10-1/2 ft, 12-1/2 ft, 14-1/2 ft, 16-1/2 ft and 19-1/2 ft, 7 used 24-1/2 ft, for used when excessive plugging of standard guards occurs
1шт.
Выбрано товаров: 328
