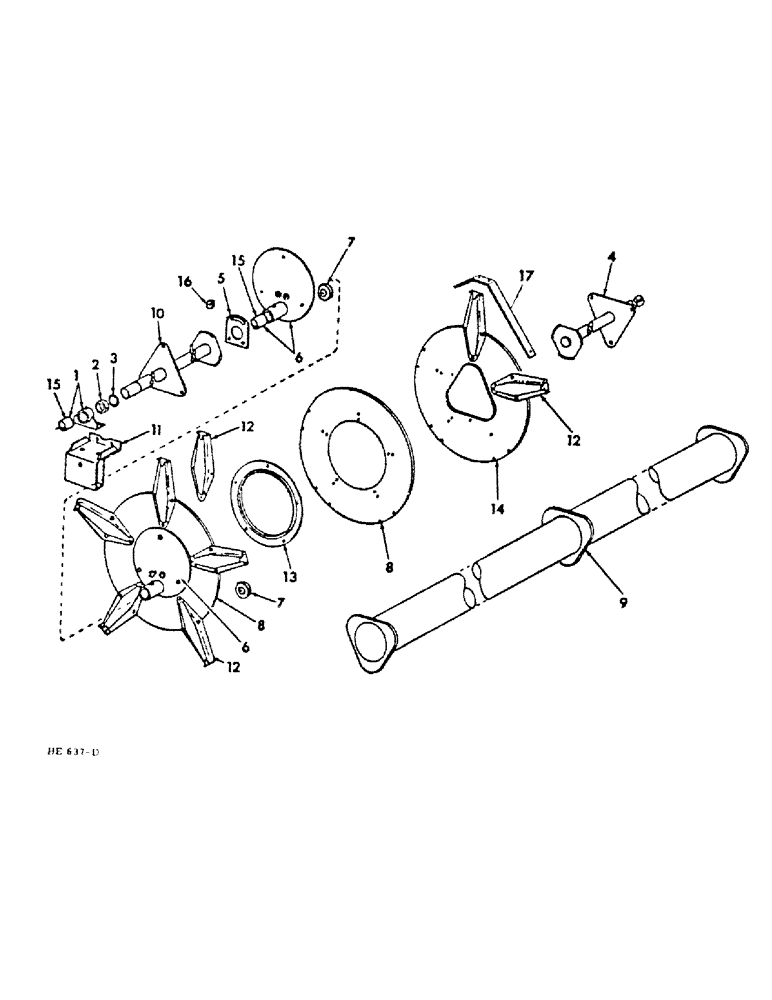

Запчасти Case IH DRAPER (B-31) - DRAPER HEADER, PICK-UP REEL CENTER SHAFT, 10-1/2, 12-1/2, 14 (13) - REEL

1

598215R21

BEARING ASSY,1.575" ID

ASSY, reel end shaft support, includes 1-109461 fitting and 1-167666C1 bushing

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

2

180400C91

COLLAR

W/SET SCREW, locking

2шт.

84-65

SET SCREW,Hex Soc, 3/8"-24 x 5/16"

3/8-24 x 5/16 hex skt cup pt set

4шт.

3

47411H

WASHER, 1.656 x 2.250 x .105

4шт.

4

598213R2

SHAFT

reel end drive LH

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 crg

3шт.

385525R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 hex-lock

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

619856R1

WASHER

.406 x 1.000 x .056

3шт.

5

827703C1

BAR

PLATE, eccentric adjustment

2шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

BOLT, 7/16-14 x 1-1/4 hex hd

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 hex

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

6

180507C1

HUB ASSY.

FRAME ASSY, eccentric roller, includes 2-167666C1 bushing

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT, 1/2-13 x 1-3/4 carriage

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

20601R1

WASHER

.531 x 1.250 x .105

2шт.

7

598242R91

ROLLER BEARING,0.376" ID x 2.25" OD x 1"

BEARING, eccentric roller frame

6шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

8

598238R1

RETAINER

PLATE, eccentric roller frame

2шт.

9

598209R1

TUBE

SHAFT, reel center 10-1/2 ft

1шт.

9

598210R1

TUBE

SHAFT, reel center 12-1/2 ft

1шт.

9

598211R1

TUBE

SHAFT, reel center 14-1/2 ft

1шт.

9

598212R1

TUBE

SHAFT, reel center 16-1/2 ft

1шт.

10

598214R2

SHAFT

reel end driven RH

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 crg

3шт.

385525R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 hex-lock

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

619856R1

WASHER

.406 x 1.000 x .056

3шт.

11

598216R2

BRACKET

eccentric adjusting

2шт.

22804R1

HEADED PIN,1/2" x 2 1/2"

PIN, 1/2 x 2.500 hd type 1

2шт.

599744R1

AXLE PIN

PIN, Q.A. Cotter

2шт.

12

167654C1

ARM

reel bat and finger support, replaces 167657C1, 25 used 10-1/2 & 12-1/2 ft, 30 used 14-1/2 & 16-1/2 ft

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 hex-hd

10шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

65 used 10-1/2 & 12-1/2 ft, 80 used 14-1/2 & 16-1/2ft Hex, 5/16"-18 x 1/2", G5, Full Thd

1шт.

120376

NUT,5/16"-18, G5

1 per bolt 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 per bolt 5/16"

1шт.

13

598240R1

RETAINER

RING, eccentric control

2шт.

14

598219R1

SHIELD

PLATE, spider, 3 used 10-1/2 & 12-1/2 ft, 4 used 14-1/2 & 16-1/2 ft

4шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex hd

6шт.

385525R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 hex-lock

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

619856R1

WASHER

.406 x 1.000 x .056

6шт.

15

167666C1

BUSHING

bearing and eccentric frame assy

6шт.

16

378792C1

BAR

eccentric slot adj spacer

2шт.

17

(Not used this application)

1шт.
