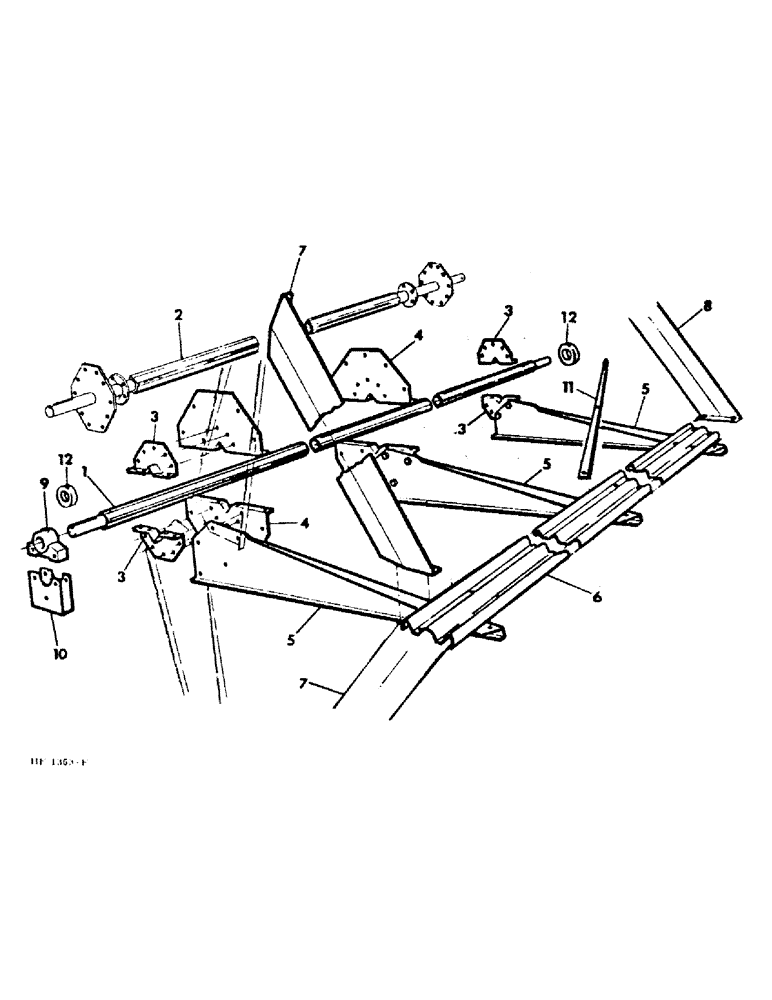

Запчасти Case IH DRAPER (B-29) - DRAPER HEADER, BAT REEL (13) - REEL
№
Артикул
Название
Примечание
Количество
1
824847C1
REEL,129.7" Length
TUBE ASSY, reel center 10-1/2 ft
1шт.
1
824848C1
REEL
TUBE ASSY, reel center 12-1/2 ft
1шт.
1
824849C1
REEL
TUBE ASSY, reel center 14-1/2 ft
1шт.
2
824850C3
REEL
TUBE ASSY, reel center 16-1/2 ft
1шт.
2
824851C3
REEL
TUBE ASSY, reel center 19-1/2 ft
1шт.
2
830111C3
REEL
TUBE ASSY, reel center 24-1/2 ft
1шт.
22812R1
WASHER
1.469 x 2.000 x .054
12шт.
432-1640
COTTER PIN,1/4" x 2 1/2"
Pin, Split (Cotter), 1/4" x 2 1/2"
1шт.
3
825762C1
SUPPORT
reel bat clamping end
4шт.
120377
NUT,3/8" - 16, Gr 5
8шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
8шт.
4
824839C1
SUPPORT
reel bat clamping center, 4 used 10-1/2 ft, 6 used 12-1/2, 14-1/2 & 16-1/2 ft, 8 used 19-1/2 ft, 10 used 24-1/2 ft
1шт.
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
3/8-16 x 3/4 hex-hd, 16 used 10-1/2 ft, 12 used 16-1/2 ft, 16 used 19-1/2 ft, 20 used 24-1/2 ft, 20 used 12-1/2 and 14-1/2 ft
1шт.
120377
NUT,3/8" - 16, Gr 5
1 per bolt 3/8"-16, G5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, , 1 per bolt 3/8"
1шт.
5
824838C2
SUPPORT
reel bat, 15 used 10-1/2 ft, 20 used 12-1/2, 14-1/2 & 16-1/2 ft, 25 used 19-1/2 ft, 30 used 24-1/2 ft
1шт.
202107C1
BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"
SCREW, 5/16-18 x 3/4 hex-hd flange lock type 40 used 10-1/2 ft, 55 used 12-1/2, 14-1/2 & 16-1/2 ft, 70 used 19-1/2 ft, 90 used 24-1/2 ft
1шт.
155807C1
BOLT,Hex Serr, 5/16" - 18 x 1"
5 used 19-1/2 ft Hex Flg, 5/16"-18 x 1", Serr
1шт.
231-5315
FLANGE NUT,Flg, 5/16"-18
NUT, 5/16-18 hex flange lock, 1 per screw
1шт.
20803R1
WASHER
.406 x 1,000 x .105, 5 used 19-1/2 ft
1шт.
6
823136C1
BAR
BAT, reel 10-1/2 ft
5шт.
6
823137C1
BAR
BAT, reel 12-1/2 ft
5шт.
6
823139C1
BAR
BAT, reel 14-1/2 ft
5шт.
6
823140C1
BAT
reel 16-1/2 ft
5шт.
6
823141C2
BAR
BAT, reel 19-1/2 ft
5шт.
6
830080C1
BAT
reel 24-1/2 ft
5шт.
202107C1
BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"
SCREW, 5/16-18 x 3/4 hex-hd flange lock type 30 used 10-1/2 ft, 40 used 12-1/2 & 14-1/2 ft, 30 used 16-1/2 ft, 40 used 19-1/2 ft, 50 used 24-1/2 ft
1шт.
231-5315
FLANGE NUT,Flg, 5/16"-18
NUT, 5/16-18 hex flange lock, 1 per screw
1шт.
7
827553C1
GUARD
reel end LH
5шт.
8
827554C1
GUARD
reel end RH w/round hole
5шт.
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
20шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
20шт.
21801R1
WASHER
.281 x .784 x .056
40шт.
9
824537C1
BEARING CARRIER,1.46" ID x 2"
reel support
2шт.
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
2шт.
10
824538C1
SUPPORT
reel support bearing
2шт.
113-257
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
3/8-16 x 2-1/2 hex-hd
3шт.
180138
BOLT,Hex, 3/8" - 16 x 3", Gr 5
3/8-16 x 3 hex-hd, LH
1шт.
120377
NUT,3/8" - 16, Gr 5
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
11
831245C1
ROD
ASSY, truss 16-1/2 ft, w/7/16 in thread, for service order 1-823447C1 rod assy and 2-120378 nuts
10шт.
11
823447C1
ROD
ASSY, truss 16-1/2 ft, w/1/2 in thread
10шт.
11
830323C1
ROD
ASSY, truss 19-1/2 ft, w/7/16 in thread, for service order 1-823448C1 rod assy and 2-120378 nuts
10шт.
11
823448C1
ROD
ASSY, truss 19-1/2 ft w/1/2 in thread
10шт.
11
830179C2
ROD
ASSY, truss 24-1/2 ft, w/7/16 in thread, for service order 1-823449C1 rod assy and 2-120378 nuts
1шт.
11
823449C1
ROD
ASSY, truss 24-1/2 ft w/1/2 in thread
10шт.
202107C1
BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"
SCREW, 5/16-18 x 3/4 hex flange lock 10 used 16-1/2 ft, 20 used 24-1/2 ft
1шт.
155807C1
BOLT,Hex Serr, 5/16" - 18 x 1"
10 used 19-1/2 ft Hex Flg, 5/16"-18 x 1", Serr
1шт.
231-5315
FLANGE NUT,Flg, 5/16"-18
NUT, 5/16-18 hex flange lock, per screw
1шт.
20803R1
WASHER
.406 x 1.000 x .105, 30 used 16-1/2 & 24-1/2 ft, 20 used 19-1/2 ft
1шт.
271501
SOCKET
NUT, 7/16-14
20шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
20шт.
12
557113R11
COLLAR
W/SET SCREW, shaft locking
2шт.
