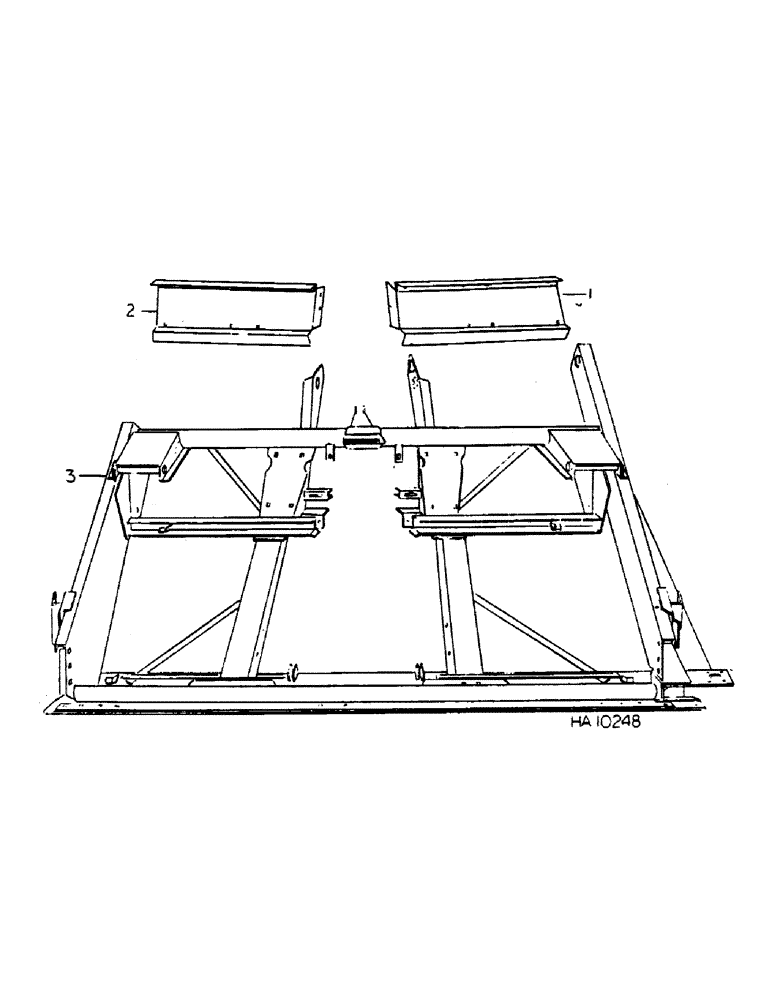

Запчасти Case IH DRAPER (B-04) - DRAPER HEADER, HEADER MAIN FRAME (12) - MAIN FRAME

1

829306C1

SIDE ASSY, header LH 12-1/2 ft

1шт.

1

829308C1

SIDE ASSY.

SIDE ASSY, header LH 14-1/2 ft

1шт.

1

829310C1

SIDE ASSY.

SIDE ASSY, header LH 16-1/2 ft

1шт.

1

831290C1

SIDE ASSY.

SIDE ASSY, header LH 19-1/2 ft

1шт.

1

830743C1

SIDE ASSY.

SIDE ASSY, header LH 24-1/2 ft

1шт.

2

823171C1

SIDE ASSY.

SIDE ASSY, header RH 12-1/2 ft

1шт.

2

829305C1

SIDE ASSY, header RH 14-1/2 ft

1шт.

2

829307C1

SIDE ASSY.

SIDE ASSY, header RH 16-1/2 ft

1шт.

2

831291C1

SIDE ASSY.

SIDE ASSY, header RH 19-1/2 ft

1шт.

2

830744C1

SIDE ASSY.

SIDE ASSY, header RH 24-1/2 ft

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 crg 14 used 12-1/2, 14-1/2 & 16-1/2 ft, 16 used 19-1/2 ft, 26 used 24-1/2 ft

1шт.

598801R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT, 5/16-18 x 1/2 crg 4 used 12-1/2 ft, 6 used 14-1/2 ft, 8 used 16-1/2 ft, 10 used 19-1/2 ft, 14 used 24-1/2 ft

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 flange lock 1, per bolt

1шт.

106969R1

WASHER

.344 x 1.250 x .054, per bolt w/598801R1 bolt

1шт.

3

823193C93

FRAME

W/PRODUCT GRAPHIC, header 12-1/2 ft

1шт.

3

823194C93

FRAME

W/PRODUCT GRAPHIC, header 14-1/2 ft

1шт.

3

823195C94

FRAME

W/PRODUCT GRAPHIC, header 16-1/2 ft

1шт.

3

823196C94

FRAME

W/PRODUCT GRAPHIC, header 19-1/2 ft

1шт.

3

823197C93

FRAME

W/PRODUCT GRAPHIC, header 24-1/2 ft, 1979 season and below, order w/1-829300C3 support

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

830235C1

PRODUCT GRAPHIC

caution

1шт.
