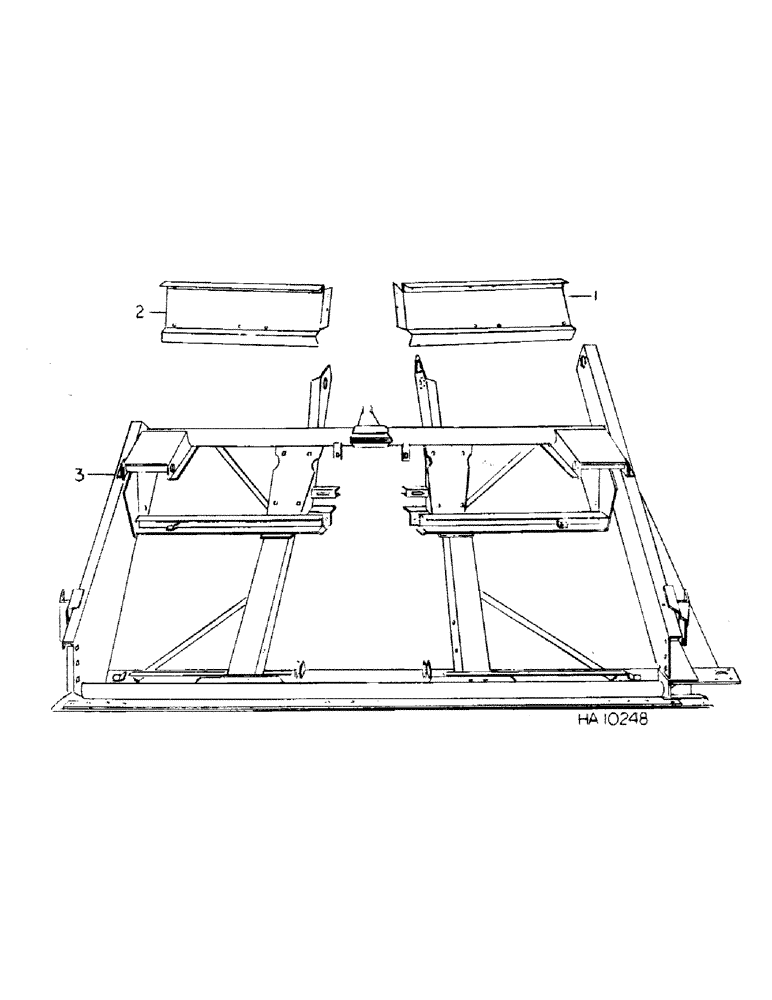

Запчасти Case IH DRAPER (B-02) - DRAPER HEADER, HEADER MAIN FRAME (12) - MAIN FRAME

1

829303C1

SIDE ASSY, header LH 10-1/2 & 12-1/2 ft

1шт.

1

829306C1

SIDE ASSY, header LH 14-1/2 ft

1шт.

1

829308C1

SIDE ASSY.

SIDE ASSY, header LH 16-1/2 ft

1шт.

1

829310C1

SIDE ASSY.

SIDE ASSY, header LH 19-1/2 ft

1шт.

1

830067C1

SIDE ASSY.

SIDE ASSY, header LH 24-1/2 ft

1шт.

2

829304C1

SIDE ASSY, header RH 10-1/2 ft

1шт.

2

829305C1

SIDE ASSY, header RH 12-1/2 ft

1шт.

2

829307C1

SIDE ASSY.

SIDE ASSY, header RH 14-1/2 ft

1шт.

2

829309C1

SIDE ASSY, header RH 16-1/2 ft

1шт.

2

829311C1

SIDE ASSY, header RH 19-1/2 ft

1шт.

2

830068C1

SIDE ASSY, header RH 24-1/2 ft

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5 14 used 10-1/2, 12-1/27, 14-1/2 and 16-1/2 ft, 16 used 19-1/2 ft, 21 used 24-1/2 ft

1шт.

598801R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT, 5/16 x 1/2 crg type 5, 2 used 10-1/2 ft, 4 used 12-1/2 ft, 6 used 14-1/2 ft, 8 used 16-1/2 ft, 10 used 19-1/2 ft, 11 used 24-1/2 ft

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock, 1 per bolt

1шт.

106969R1

WASHER

.344 x 1.250 x .054 1 per bolt w/598801R1

1шт.

3

829274C2

FRAME ASSY, header 10-1/2 ft

1шт.

3

829275C2

FRAME ASSY, header 12-1/2 ft

1шт.

3

829276C3

FRAME

ASSY, header 14-1/2 ft

1шт.

3

829277C3

FRAME ASSY, header 16-1/2 ft

1шт.

3

829278C3

FRAME ASSY, header 19-1/2 ft

1шт.

3

830071C2

FRAME ASSY, header 24-1/2 ft order w/1-829300C3 support

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.
