(B-60) - DRAPER HEADER, CYLINDER, HEADER LIFT SLAVE, 1.5 X 11.7 RAM

Запчасти Case IH DRAPER (B-60) - DRAPER HEADER, CYLINDER, HEADER LIFT SLAVE, 1.5 X 11.7 RAM (07) - HYDRAULICS

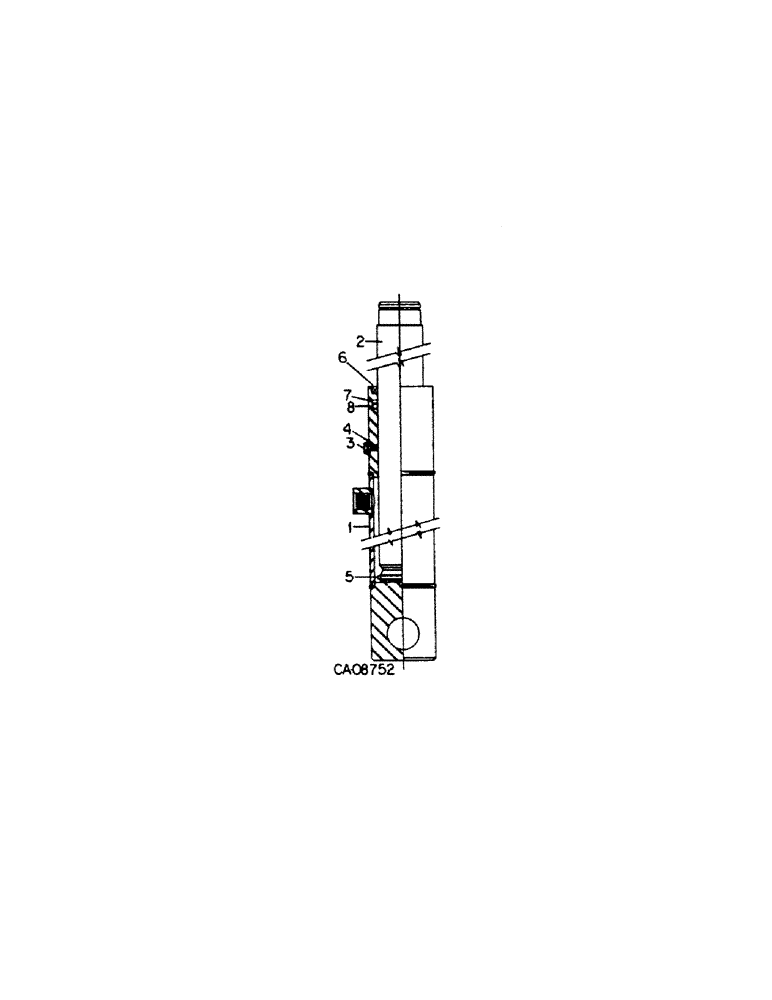

Схема запчастей Case IH DRAPER - (B-60) - DRAPER HEADER, CYLINDER, HEADER LIFT SLAVE, 1.5 X 11.7 RAM (07) - HYDRAULICS
6
1
4
5
8
3
2
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

832042C91

CYLINDER

ASSY, header lift slave

1шт.

1

BODY ASSY, cylinder, order cylinder assy (NSS)

1шт.

2

825535C1

ROD

piston

1шт.

3

825536C1

FLANGE BOLT,Hex, #10 - 24 x 15/64"

SCREW, bleeder

1шт.

4

WASHER, Dyna-Seal (NSS)

1шт.

5

RING, rod lock (NSS)

1шт.

6

WIPER, piston rod (NSS)

1шт.

7

WASHER, o-ring back-up (NSS)

1шт.

8

O-RING, 1-1/2 x 1-7/8 (NSS)

1шт.

823375C3

SEAL KIT

o-ring and seal service, consists of ref no. 4 thru 8

1шт.

599221R92

CYLINDER

ASSY, header lift hyd

2шт.
