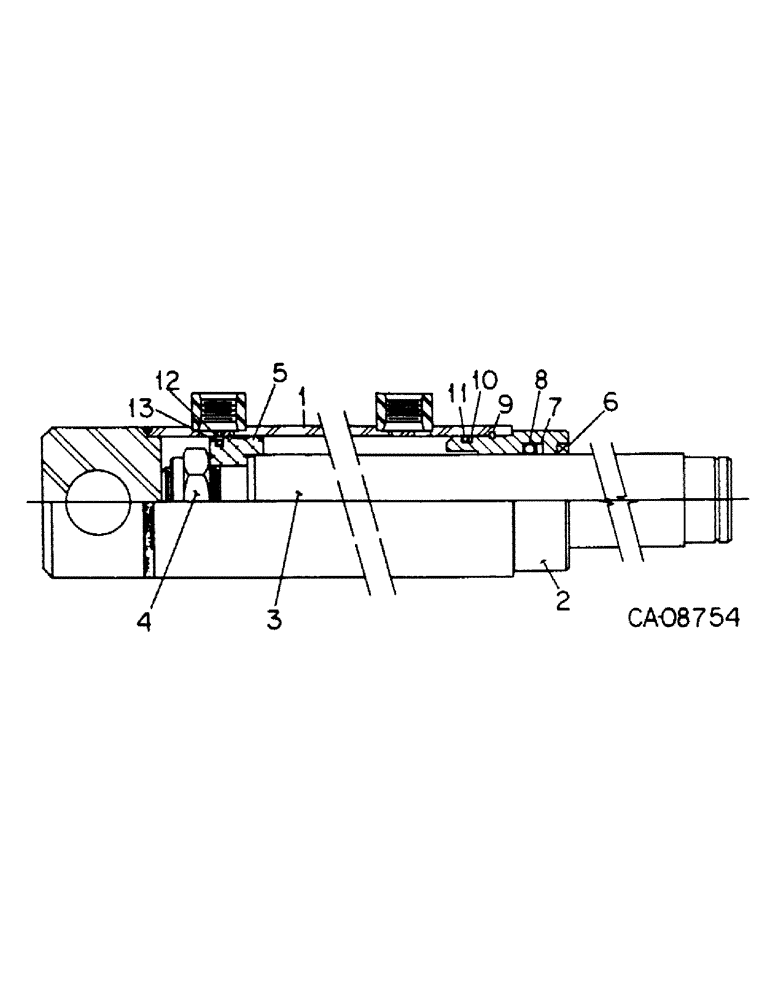

Запчасти Case IH DRAPER (B-59) - DRAPER HEADER, CYLINDER-HEADER LIFT MASTER, 2/12 X 11.7 (07) - HYDRAULICS

832104C92

CYLINDER ASSY.

CYLINDER ASSY, header lift master

1шт.

BODY ASSY, cylinder, order cylinder assy (NSS)

1шт.

2

825538C1

GLAND,1.62" ID x 1.876" OD x 2"

HEAD, front

1шт.

3

825539C1

ROD

piston

1шт.

4

823323C1

NUT

1-1/8-12 hex lock

1шт.

5

825537C1

PISTON

cylinder

1шт.

6

WIPER, piston rod (NSS)

1шт.

7

WASHER, o-ring back-up (NSS)

1шт.

8

O-RING, 1-1/2 x 1-7/8 (NSS)

1шт.

9

RING, head locking (NSS)

1шт.

10

WASHER, o-ring back-up (NSS)

1шт.

11

O-RING, 1-15/16 x 2-1/8 (NSS)

1шт.

12

RING, slipper (NSS)

1шт.

13

O-RING, 1-13/16 x 2 (NSS)

1шт.

825541C2

SEAL KIT

o-ring and seal service, consists of ref no. 6 thru 13

1шт.
