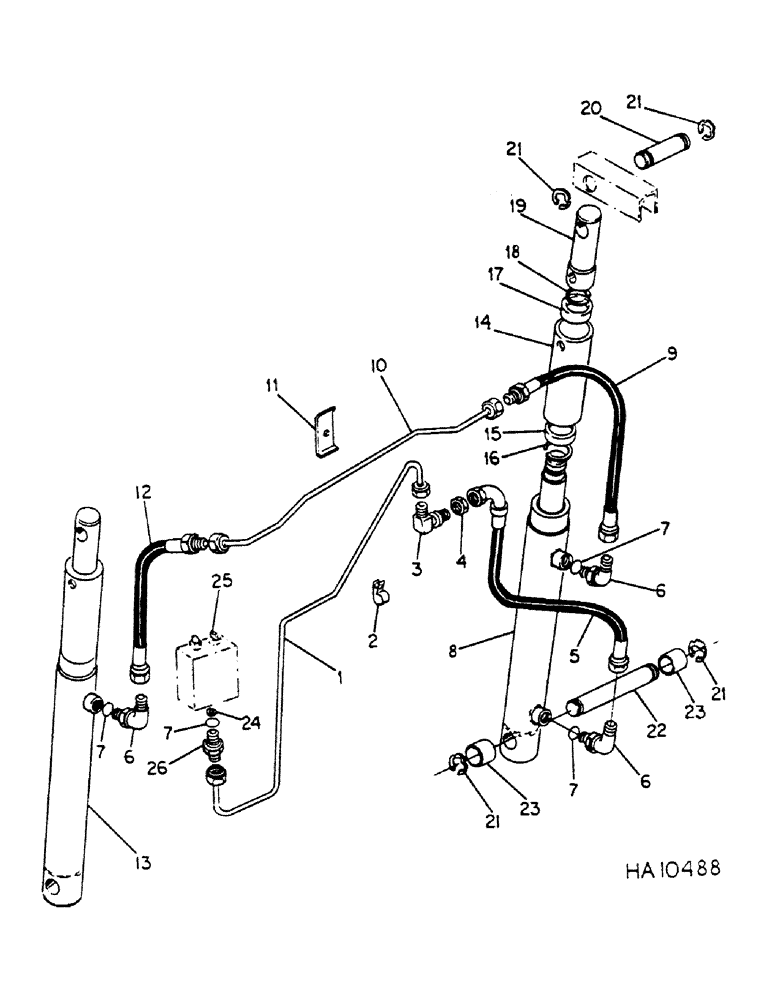

Запчасти Case IH DRAPER (B-57) - DRAPER HEADER, HEADER HYDRAULIC LIFT SYSTEM, WITH RH MASTER (07) - HYDRAULICS

1

826778C1

TUBE,220, 128 mm Length

valve to elbow

1шт.

2

595432R1

CLAMP

tube

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

3

671943R1

ELBOW

9/16 hyd 37 deg flared tube 90 deg adj str thrd bulkhead

1шт.

4

9403293

LOCK NUT,Blkhd, 9/16"-18

NUT, 3/8 C-Z bulkhead union lock

1шт.

5

826777C1

HOSE

16.9 in master cylinder inlet

1шт.

6

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

3/8 C-Z hyd fld adj 90D

3шт.

7

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

4шт.

8

832104C92

CYLINDER ASSY.

CYLINDER ASSY, header lift master hyd, for service parts refer to cylinder-header lift master

1шт.

9

611937R91

HOSE ASSY.

HOSE, 15.6 in master cylinder outlet

1шт.

10

832123C1

TUBE

master to slave cylinder

1шт.

11

594005R2

CLAMP

tube

1шт.

850681C1

SELF-TAP SCREW,5/16" - 18 x 7/8"

5/16 x 7/8 hex taptite

1шт.

12

832489C1

HOSE

9 in. slave cylinder

1шт.

13

832042C91

CYLINDER

ASSY, header lift slave hyd, for service parts refer to cylinder, header lift slave

1шт.

14

832036C1

TUBE,1.75" ID, 2.25" OD, 6.8" Length

cylinder piston rod extension

2шт.

15

832038C1

BUSHING

extension tube lower

2шт.

16

968898R1

SNAP RING,1.938", Int, #193

RING, 2.141 int ret

2шт.

17

832037C1

BUSHING

extension tube upper

2шт.

18

659380R1

SNAP RING,#137, Ext

Ring, Snap, #137, Ext

2шт.

19

832035C1

PIN

cylinder piston rod extension

2шт.

19998R1

PIN,1/2" x 2 1/2", Coiled

2шт.

20

828150C1

PIN,25.4mm OD x 71.88mm L

cylinder upper

2шт.

614451R1

WASHER

1.031 x 1.750 x .105

1шт.

21

827695C1

CIRCLIP

RING, pin retaining

8шт.

22

828151C1

PIN

cylinder lower

2шт.

23

557056R1

SPACER,1" Pipe x 1"

cylinder lower

4шт.

24

824544C1

PLATE

VALVE, orifice, Cessna, w/.1093 dia hole or

1шт.

24

596300R1

PLATE

VALVE, orifice, Cessna, w/.0935 dia hole

1шт.

24

1261081C1

VALVE

orifice, Victor

1шт.

25

VALVE ASSY, hydraulic control, for service parts refer to chassis parts catalog

1шт.

26

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/8 C-Z hyd fld short swivel

1шт.
