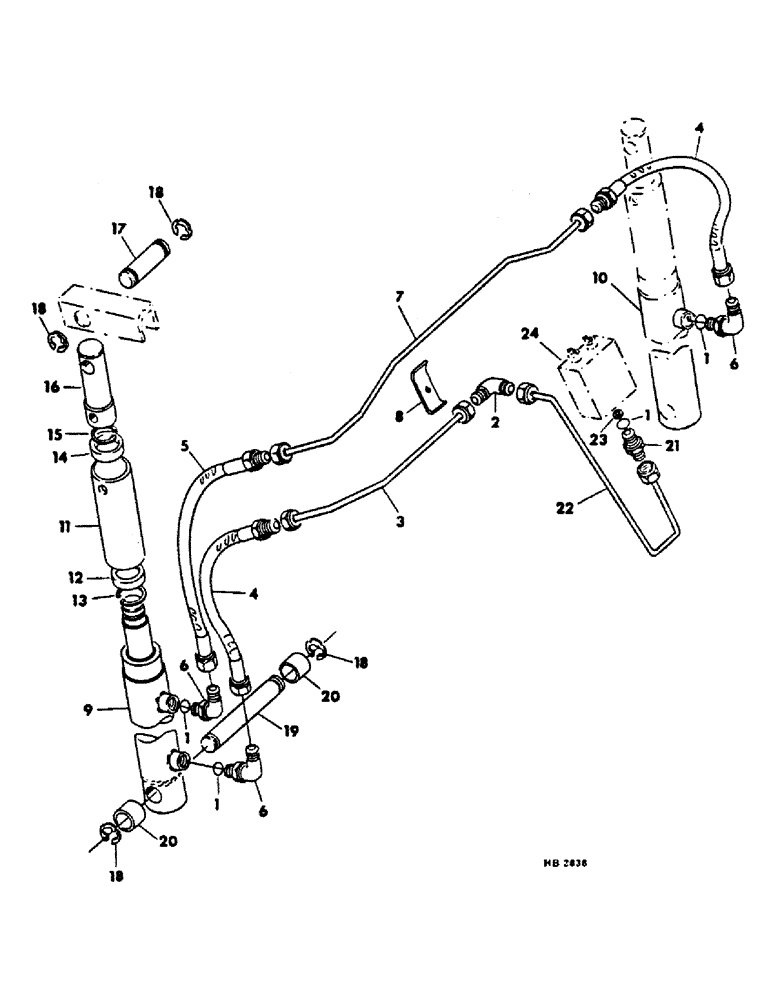

Запчасти Case IH DRAPER (B-55) - DRAPER HEADER, HEADER HYDRAULIC LIFT SYSTEM, WITH LH MASTER (07) - HYDRAULICS

1

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

4шт.

2

9402942

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

37 deg flared 90 deg

1шт.

3

832124C1

TUBE

ASSY, header lift cylinder

1шт.

4

611937R91

HOSE ASSY.

HOSE, 15.6 in. header lift cylinder

2шт.

5

832489C1

HOSE

9 in. header lift cylinder

1шт.

6

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

adj str thr 90 deg

3шт.

7

832123C1

TUBE

ASSY, header lift cylinder

1шт.

8

594005R2

CLAMP

hydraulic tube

1шт.

850681C1

SELF-TAP SCREW,5/16" - 18 x 7/8"

5/16-18 x 7/8 hex washer hd self tapping

1шт.

9

832104C92

CYLINDER ASSY.

CYLINDER ASSY, header lift master hyd, for service parts refer to cylinder-header lift master

1шт.

10

832042C91

CYLINDER

ASSY, header lift slave hyd, for service parts refer to cylinder, head lift slave

1шт.

11

832036C1

TUBE,1.75" ID, 2.25" OD, 6.8" Length

cylinder piston rod extension

2шт.

12

832038C1

BUSHING

extension tube lower

2шт.

13

968898R1

SNAP RING,1.938", Int, #193

RING, lower bushing retaining

2шт.

14

832037C1

BUSHING

extension tube upper

2шт.

15

659380R1

SNAP RING,#137, Ext

Ring, Snap, , upper bushing #137, Ext

2шт.

16

832035C1

PIN

cylinder piston rod extension

2шт.

19998R1

PIN,1/2" x 2 1/2", Coiled

2шт.

17

828150C1

PIN,25.4mm OD x 71.88mm L

cylinder upper

2шт.

614451R1

WASHER

1.031 x 1.750 x .105, 4 or as required

4шт.

18

827695C1

CIRCLIP

RING, pin retaining

8шт.

19

828151C1

PIN

cylinder lower

2шт.

20

557056R1

SPACER,1" Pipe x 1"

cylinder lower

4шт.

21

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

UNION, 9/16-18 short swivel

1шт.

22

828344C2

TUBE

, Serial Range: valve-elbow

1шт.

23

824544C1

PLATE

VALVE, orifice, Cessna, with .1093 dia hole or

1шт.

23

596300R1

PLATE

VALVE, orifice, Cessna, with .0935 dia hole

1шт.

23

1261081C1

VALVE

orifice, Victor

1шт.

24

VALVE ASSY, hydraulic control for service parts refer to chassis parts catalog

1шт.
