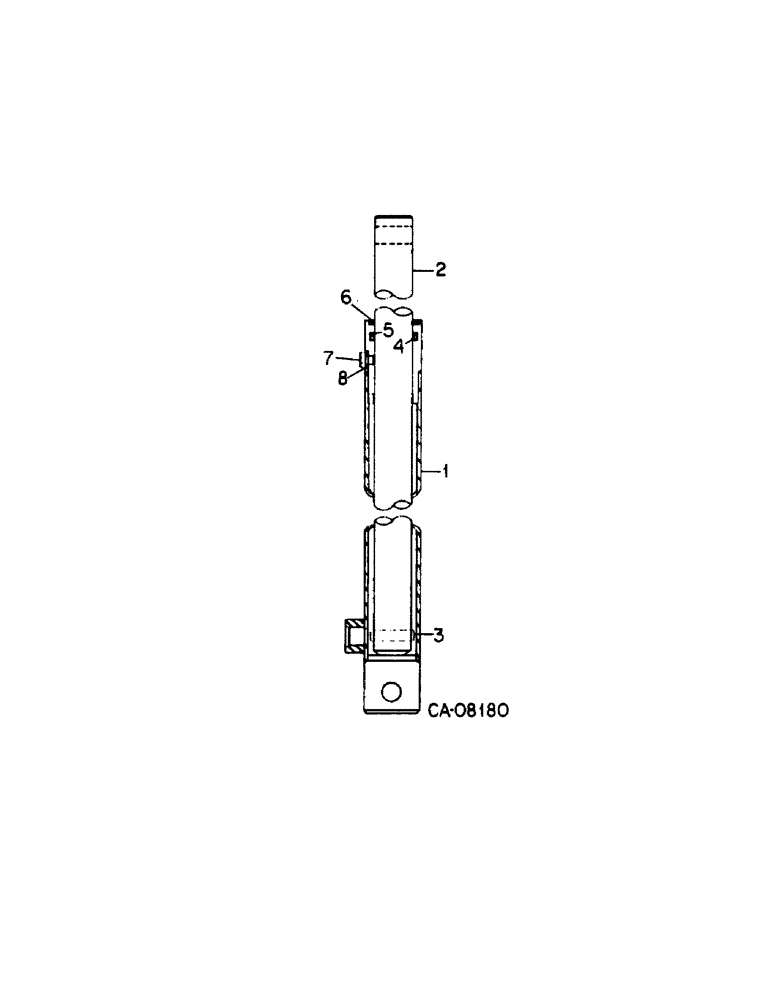

Запчасти Case IH DRAPER (B-47[1]) - SLAVE REEL LIFT CYLINDER 1.0 X 9.38 RAM TYPE IH (07) - HYDRAULICS

1

BODY ASSY, cylinder, order cylinder assy (NSS)

1шт.

2

532771R1

ROD

piston

1шт.

3

532774R1

PIN

stop

1шт.

4

O-RING, 1 x 1-1/4 class 6 (NSS)

1шт.

5

WASHER, back-up (NSS)

1шт.

6

WIPER, rod (NSS)

1шт.

7

24535R1

SCREW

10-24 x 1/4 znd hex-hd mach, air bleed

1шт.

8

WASHER, rubber bonded (NSS)

1шт.

532531R91

PACKAGE, REPAIR

KIT, o-ring and seal service, consists of ref no. 4, 5, 6 & 8

1шт.
