(B-46) - DRAPER HEADER, MASTER REEL LIFT CYLINDER, 1.5 X 9.38

Запчасти Case IH DRAPER (B-46) - DRAPER HEADER, MASTER REEL LIFT CYLINDER, 1.5 X 9.38 (07) - HYDRAULICS

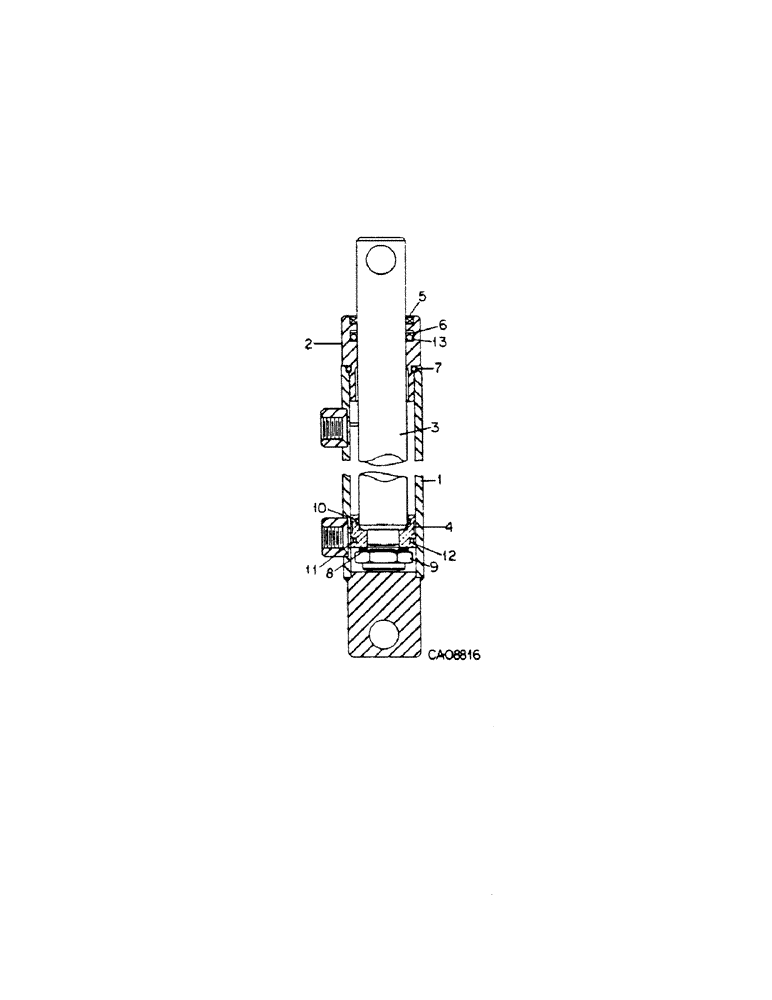

Схема запчастей Case IH DRAPER - (B-46) - DRAPER HEADER, MASTER REEL LIFT CYLINDER, 1.5 X 9.38 (07) - HYDRAULICS
2
1
7
4
3
10
13
8
9
12
11
6
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

158749C91

CYLINDER

ASSY, reel lift master

1шт.

1

BODY ASSY, cylinder, order cylinder assy (NSS)

1шт.

2

161333C1

HEAD

front

1шт.

3

161131C1

ROD, piston

1шт.

4

161132C1

PISTON, cylinder

1шт.

5

WIPER, piston rod (NSS)

1шт.

6

WASHER, o-ring back-up (NSS)

1шт.

7

O-RING, 1-3/8 x 1-9/16 (NSS)

1шт.

8

WASHER, .78 x 1.125 x .048

1шт.

9

NUT, 3/4-16 thin

1шт.

10

O-RING, 1-1/8 x 1-1/4 (NSS)

1шт.

11

RING, slipper (NSS)

1шт.

12

O-RING, 1-1/4 x 1-3/8 (NSS)

1шт.

13

O-RING, 1-1/8 x 1-3/8 (NSS)

1шт.

826021C91

SEAL KIT

KIT, o-ring and seal service, consists of ref nos. 5, 6, 7, 10, 11, 12 & 13

1шт.

547358R92

CYLINDER ASSY.

CYLINDER ASSY, reel lift master

1шт.
