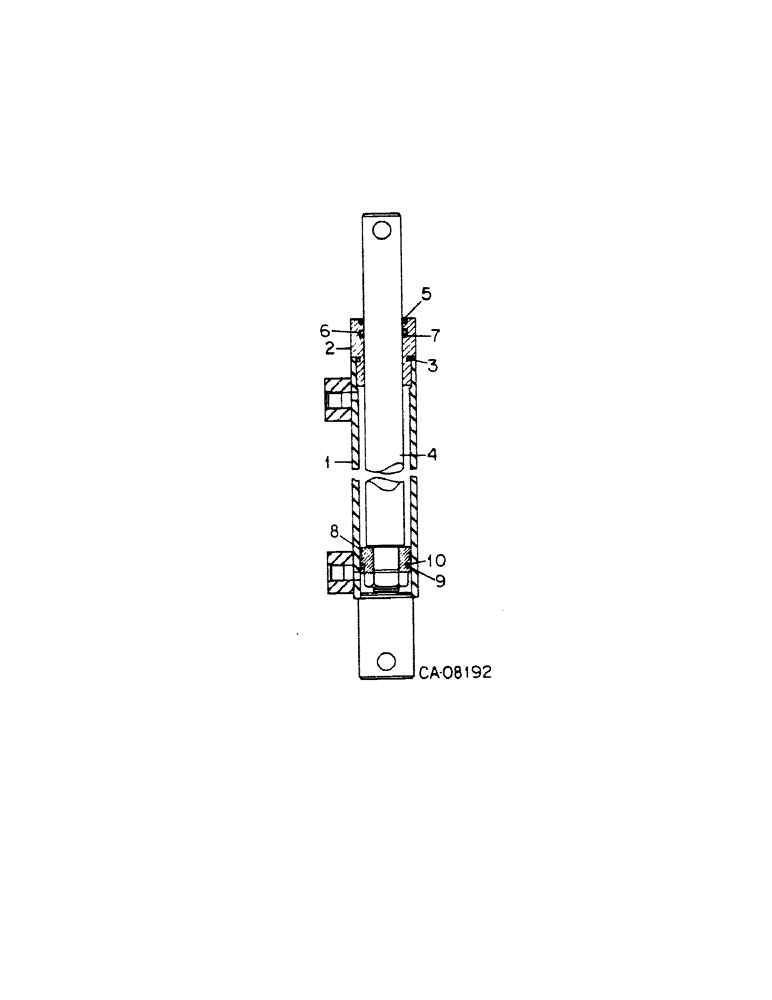

Запчасти Case IH DRAPER (B-46[1]) - MASTER REEL LIFT CYLINDER 1.5 X 9.38 IH (07) - HYDRAULICS

1

547328R2

BODY

ASSY, cylinder

1шт.

2

547384R1

CYLINDER HEAD

HEAD, front

1шт.

3

O-RING, 1-3/8 x 1-9/16 class 6 (NSS)

1шт.

4

547332R1

ROD

piston

1шт.

548033R1

JAM NUT

NUT, lock

1шт.

5

WIPER, rod (NSS)

1шт.

6

O-RING, 1-1/8 x 1-3/8 class 6 (NSS)

1шт.

7

WASHER, o-ring back-up (NSS)

1шт.

8

547333R1

PISTON

cylinder

1шт.

9

O-RING, 1-3/16 x 1-3/8 class 5 (NSS)

1шт.

10

SEAL, piston (NSS)

1шт.

547388R91

PACKAGE, REPAIR

KIT, o-ring and seal service, consists of ref nos. 3, 5, 6, 7, 9 & 10

1шт.
