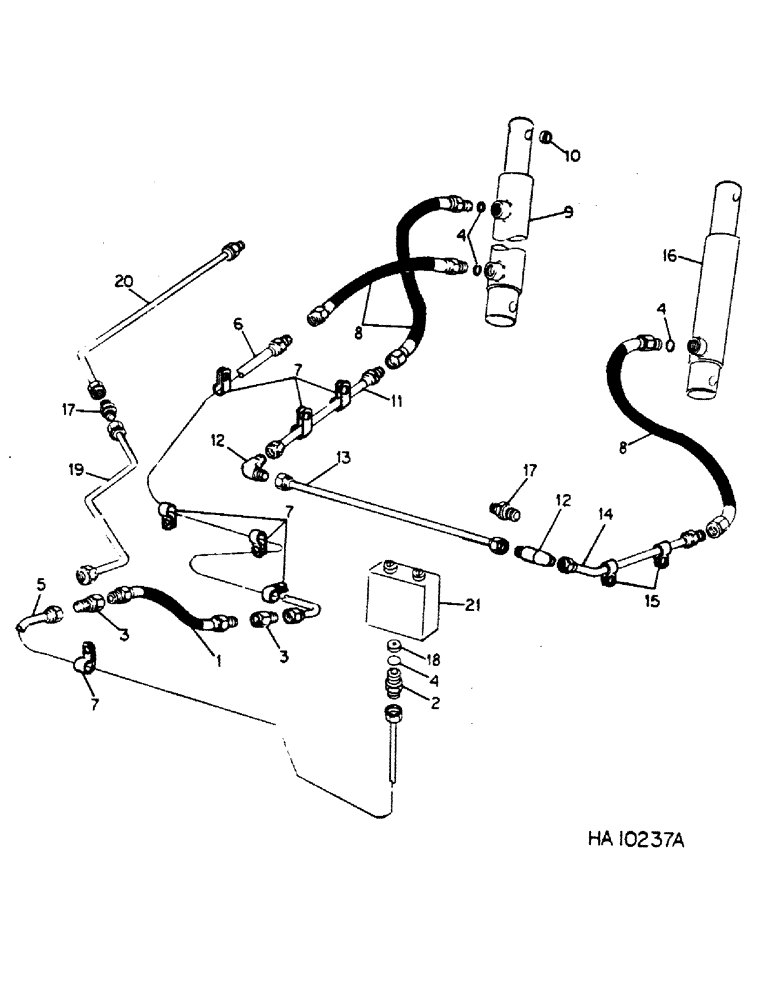

Запчасти Case IH DRAPER (B-14) - DRAPER HEADER, REEL HYDRAULICS (07) - HYDRAULICS

1

531886R1

HYDRAULIC HOSE,0.25" ID x 28.00", SAE 100R1 Class 7

HOSE, 28 in header to valve

1шт.

2

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

UNION, 9/16-18 short swivel

1шт.

3

9402747

HYD CONNECTOR,9/16"-18, 37 Degree x 1/4"-18, Fem Pipe

CONNECTOR, internal pipe thread

2шт.

4

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

4шт.

5

829503C2

TUBE

valve to header hose

1шт.

6

829386C2

TUBE

master cylinder inlet rear 10-1/2 ft

1шт.

6

829386C2

TUBE

master cylinder inlet rear, 12-1/2 ft prior to serial no. 2501

1шт.

6

829387C2

TUBE

master cylinder inlet rear 12-1/2 ft serial no. 2501 and since

1шт.

6

829387C2

TUBE

master cylinder inlet rear 14-1/2 ft prior to serial no. 2501

1шт.

6

829388C2

TUBE

master cylinder inlet rear 14-1/2 ft serial no. 2501 and since

1шт.

6

829388C2

TUBE

master cylinder inlet rear 16-1/2 ft prior to serial no. 2501

1шт.

6

829389C2

TUBE

master cylinder inlet rear 16-1/2 ft serial no. 2501 and since

1шт.

6

829389C2

TUBE

master cylinder inlet rear 19-1/2 ft prior to serial no. 2501

1шт.

6

831296C1

TUBE

master cylinder inlet rear 19-1/2 ft serial no. 2501 and since

1шт.

6

830062C2

TUBE

master cylinder inlet rear 24-1/2 ft prior to serial no. 3101

1шт.

6

832193C1

TUBE

master cylinder inlet rear 24 -1/2 ft serial no. 3101 & since for service order 1-823594C1 & 1-823595C1 tube, w/1-9402786 union

1шт.

7

795432R1

CLAMP, tube

6шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 hex-hd

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

8

826519C91

HOSE

15-1/2 in hydraulic

3шт.

9

158749C91

CYLINDER

ASSY, Cessna, reel lift master use w/825295C91 slave cylinder opt w/1-547358R92 master cylinder and 1-532763R91 slave cylinder

1шт.

9

547358R92

CYLINDER ASSY.

CYLINDER ASSY, I.H., reel lift master use w/532763R91 slave cylinder opt w/1-158749C91 master cylinder and 1-825295C91 slave cylinder, for service parts refer to master reel lift cylinder

1шт.

23173R1

CLEVIS PIN

PIN, 1/2 x 2-3/4 type 5 std hd dld

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

599744R1

AXLE PIN

PIN, Q. A. Cotter

1шт.

10

217779R1

SPACER

cylinder

1шт.

11

829391C2

TUBE,0.375" OD, 10.7, 6" Length

master cylinder outlet

1шт.

12

9402942

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

37 deg flared tube 90 deg

2шт.

13

824648C11

TUBE

slave cylinder center 10-1/2 ft

1шт.

13

824715C11

TUBE,0.375" OD, 143.2" Length

slave cylinder center 12-1/2 ft

1шт.

13

824716C11

TUBE

slave cylinder center 14-1/2 ft

1шт.

13

824717C11

TUBE

slave cylinder center 16-1/2 ft

1шт.

13

824718C1

TUBE

slave cylinder center 19-1/2 ft

1шт.

13

824715C11

TUBE,0.375" OD, 143.2" Length

slave cylinder center, 24 -1/2 ft

2шт.

14

829392C1

TUBE,0.375" OD, 14.5, 4.7" Length

slave cylinder RH

1шт.

15

595432R1

CLAMP

tube

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 hex-hd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

16

825295C91

CYLINDER

ASSY, Cessna, reel lift slave use w/158749C91 master cylinder opt w/1-532763R91 slave cylinder and 1-547358C92 master cylinder

1шт.

16

532763R91

CYLINDER

ASSY, I.H, reel lift slave use w/547358C92 master cylinder opt w/1-825295C91, slave cylinder and 1-158749C91 master cylinder, for service parts refer to slave reel lift cylinder

1шт.

21899R1

HEADED PIN

PIN, 1/2 x 2-1/2 type 5 std hd dld

2шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

599744R1

AXLE PIN

PIN, Q. A. Cotter

1шт.

17

9402786

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

tube, for used w/24-1/2 ft header tube connecting

2шт.

18

403967R1

VENT

VALVE, orifice, Cessna

1шт.

18

1261082C1

VALVE

orifice, Victor

1шт.

19

823594C1

TUBE

master cylinder inlet rear 24-1/2 ft

1шт.

20

823595C1

TUBE

master cylinder inlet side 24-1/2 ft

1шт.

21

VALVE ASSY, hydraulic control, for service parts refer to chassis parts catalog

1шт.
