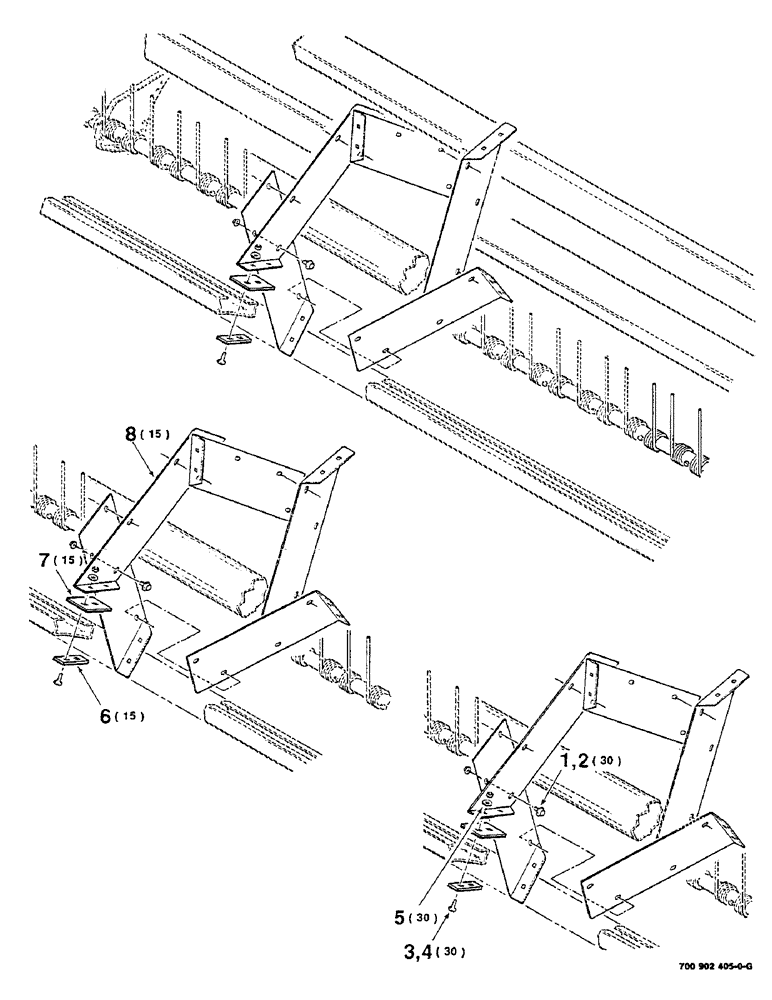

Запчасти Case IH 8840 (9-20) - REEL SPIDER HEAVY CROP KIT, (HK60575 REEL SPIDER HEAVY CROP (88) - ACCESSORIES

HK60575

REEL SPIDER HEAVY CROP KIT COMPLETE

1шт.

1

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

30шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

30шт.

3

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5

30шт.

4

425-105

NUT,5/16"-18, G5

30шт.

5

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

30шт.

6

700114543

RETAINER

15шт.

7

700114544

LARGE PLATE

PLATE

15шт.

8

700121769

SUPPORT

- spider

15шт.
