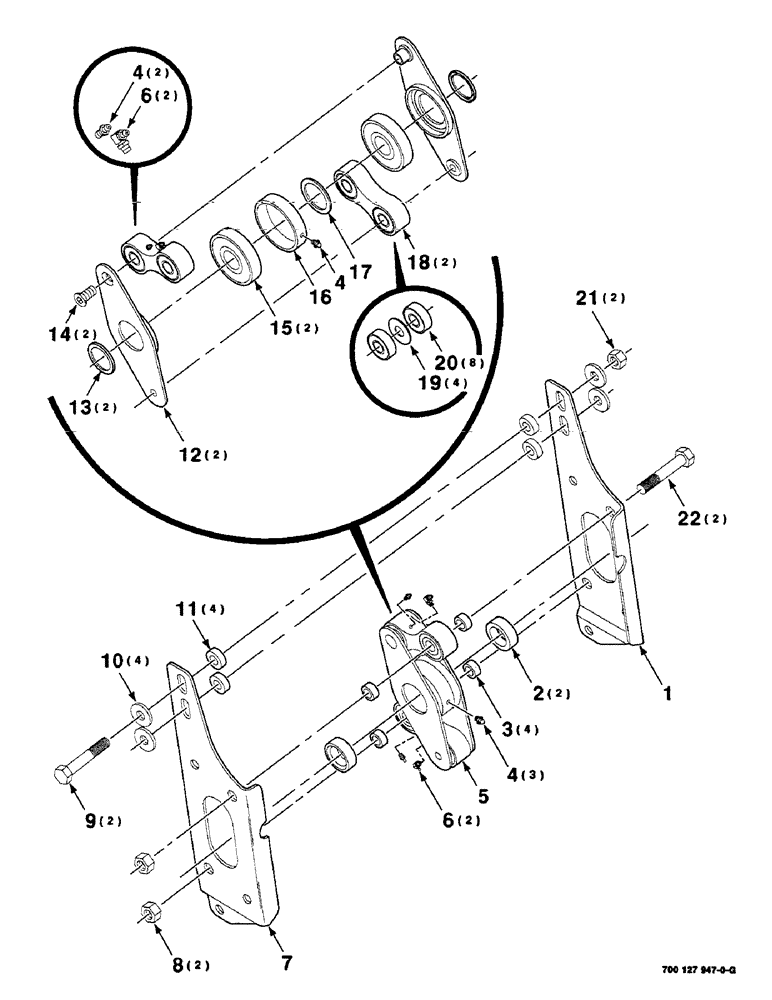

Запчасти Case IH 8840 (9-16) - SWAYBAR ASSEMBLY KIT, (700127947 SWAY BAR ASSEMBLY KIT (88) - ACCESSORIES

700127947

KIT

- sway bar assembly, less crank

1шт.

1

700124298

LARGE PLATE

PLATE - swaybar

1шт.

2

700124303

SPACER

2шт.

3

700124304

SPACER

4шт.

4

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

6шт.

5

700124300

LINK

ASSEMBLY (includes items 12 thru 18)

1шт.

6

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

4шт.

7

700124296

LARGE PLATE

PLATE - swaybar

1шт.

8

425-1412

JAM NUT,Jam, 3/4"-10, G5

3/4-10 HJN GR2

2шт.

9

26-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 8

5/8-11 X 3-3/4 C GR 8

2шт.

10

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

4шт.

11

700124306

SPACER

4шт.

12

700127948

LARGE PLATE

PLATE - pivot

2шт.

13

700706005

OIL SEAL

SEAL - oil

2шт.

14

700712806

BOLT,1/2" - 20 x 2-1/8"

1/2-20 X 2-1/8 HSFCHCS

2шт.

15

ST291

BEARING, BALL,35mm ID x 80mm OD x 21mm W

BEARING

2шт.

16

700124302

SPACER

1шт.

17

195-2139

WASHER,36.52mm ID x 57.15mm OD x 2.03mm Thk

1-3/8 X 18 GAUGE NRMB

1шт.

18

700124301

LINK

ASSEMBLY (includes items 5, 7, 25 and 26)

2шт.

19

195-2089

WASHER,25/32" x 1 1/2" x .083"

3/4 X 18 GAUGE WRMB

4шт.

20

T39594

BALL BEARING,0.7505" ID x 1.7805" OD x 0.61"

BEARING

8шт.

21

429-1010

NUT,5/8"-11, G8

2шт.

22

413-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

3/4-10 X 3-1/4 C

2шт.
