Запчасти Case IH 8840 (9-14) - SWAYBAR ASSEMBLY KIT (700129383 SWAY BAR ASSEMBLY KIT (88) - ACCESSORIES

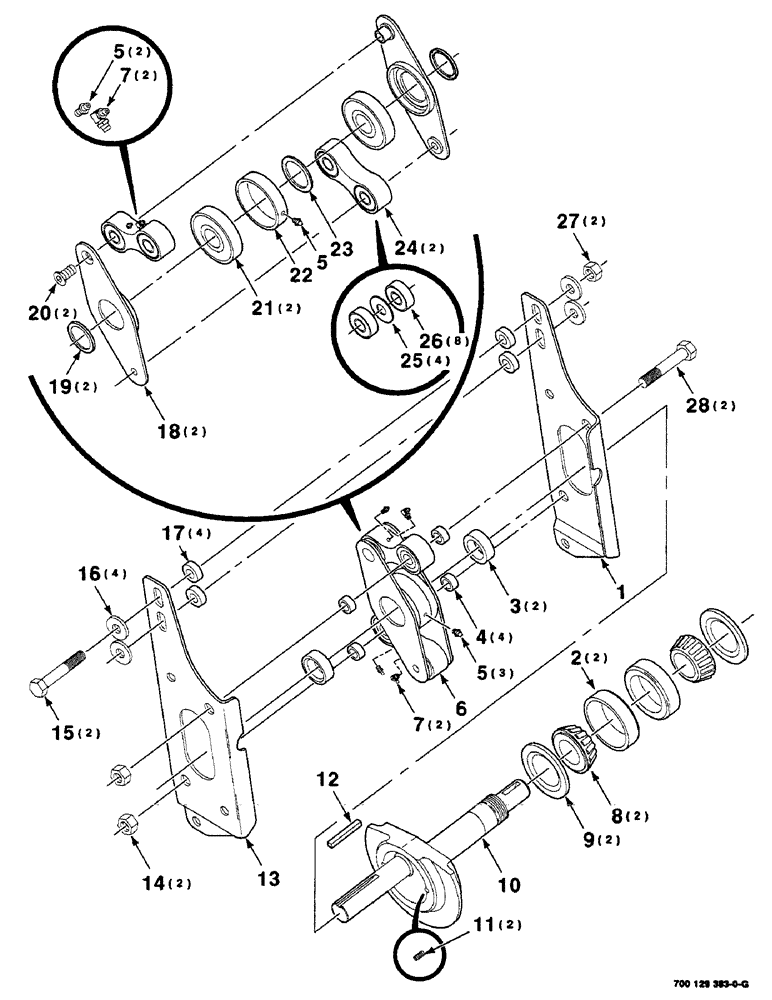

Схема запчастей Case IH 8840 - (9-14) - SWAYBAR ASSEMBLY KIT (700129383 SWAY BAR ASSEMBLY KIT (88) - ACCESSORIES
22
20
11
14
7
16
28
27
10
26
3
25
15
7
5
8
17
23
19
1
24
13
9
12
4
6
18
21
5
2
5

Артикул

Название

Примечание

Количество

700129383

KIT

SWAY BAR ASSEMBLY

1шт.

1

700124298

LARGE PLATE

PLATE - swaybar

1шт.

2

170254R1

BEARING, CUP

BEARING CUP

2шт.

3

700124303

SPACER

2шт.

4

700124304

SPACER

4шт.

5

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

6шт.

6

700124300

LINK

ASSEMBLY (includes items 18 thru 24)

1шт.

7

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

4шт.

8

298194R91

ROLLER BEARING,44.45mm ID x 29.37mm W

BEARING CONE

2шт.

9

700706454

SEAL

2шт.

10

700124293

PINION

PITMAN ASSEMBLY (includes item 11)

1шт.

11

483-13812

SET SCREW,Hex Soc, 3/8"-16 x 3/4"

3/8-16 X 3/4 CPHSSS

2шт.

12

761312

KEY

5/16 X 2-1/2 STRAIGHT KEY

1шт.

13

700124296

LARGE PLATE

PLATE - swaybar

1шт.

14

425-1412

JAM NUT,Jam, 3/4"-10, G5

3/4-10 HJN GR2

2шт.

15

26-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 8

5/8-11 X 3-3/4 C GR 8

2шт.

16

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

4шт.

17

700124306

SPACER

4шт.

18

700127948

LARGE PLATE

PLATE - pivot

2шт.

19

700706005

OIL SEAL

SEAL - oil

2шт.

20

700712806

BOLT,1/2" - 20 x 2-1/8"

1/2-20 X 2-1/8 HSFCHCS

2шт.

21

ST291

BEARING, BALL,35mm ID x 80mm OD x 21mm W

BEARING

2шт.

22

700124302

SPACER

1шт.

23

195-2139

WASHER,36.52mm ID x 57.15mm OD x 2.03mm Thk

1-3/8 X 18 GAUGE NRMB

1шт.

24

700124301

LINK

ASSEMBLY (includes items 5, 7, 25 and 26)

2шт.

25

195-2089

WASHER,25/32" x 1 1/2" x .083"

3/4 X 18 GAUGE WRMB

4шт.

26

T39594

BALL BEARING,0.7505" ID x 1.7805" OD x 0.61"

BEARING

8шт.

27

429-1010

NUT,5/8"-11, G8

2шт.

28

413-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

3/4-10 X 3-1/4 C

2шт.

Выбрано товаров: 29
