Запчасти Case IH 8840 (9-08) - GAUGE WHEEL KIT, (HK60562 GAUGE WHEEL KIT COMPLETE - TO BE (88) - ACCESSORIES

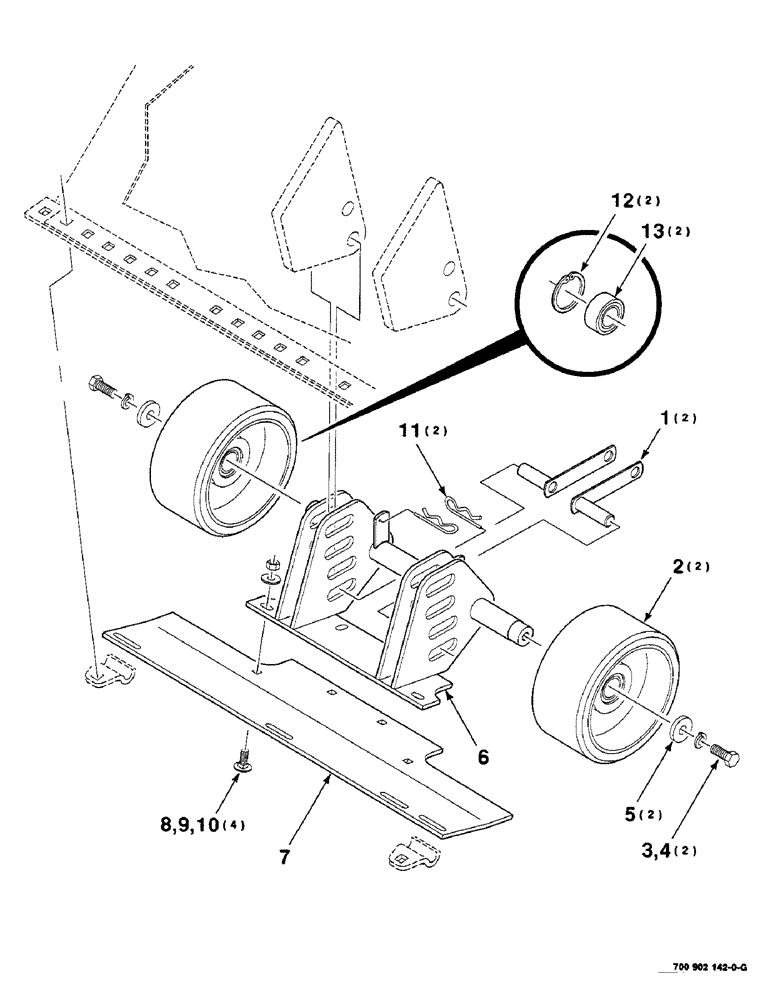

Схема запчастей Case IH 8840 - (9-08) - GAUGE WHEEL KIT, (HK60562 GAUGE WHEEL KIT COMPLETE - TO BE (88) - ACCESSORIES
3
9
13
7
11
1
12
5
2
4
8
10
6

Артикул

Название

Примечание

Количество

HK60562

GAUGE

WHEEL KIT COMPLETE

1шт.

1

700119703

PIN

WA

2шт.

2

700119691

WHEEL

ASSEMBLY - gauge (includes items 12 and 13)

2шт.

3

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

5

6223374

WASHER

2шт.

6

700121450

SUPPORT

- wheel

1шт.

7

700121449

SKID/SHOE

SKID

1шт.

8

707042

BOLT,#3, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 PLOW BOLT

4шт.

9

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

4шт.

10

425-106

NUT,3/8"-16, Cl 5

4шт.

11

T54573

PIN

.120 WIRE HAIRPIN COTTER

2шт.

12

100-21218

SNAP RING,2.165", Int, #216

Ring, Snap, 2.165", Int, #216

2шт.

13

700709106

BEARING, ROLLER, CYL,29.99mm ID x 55mm OD x 23.02mm W

BEARING - cylindrical

2шт.

Выбрано товаров: 14
