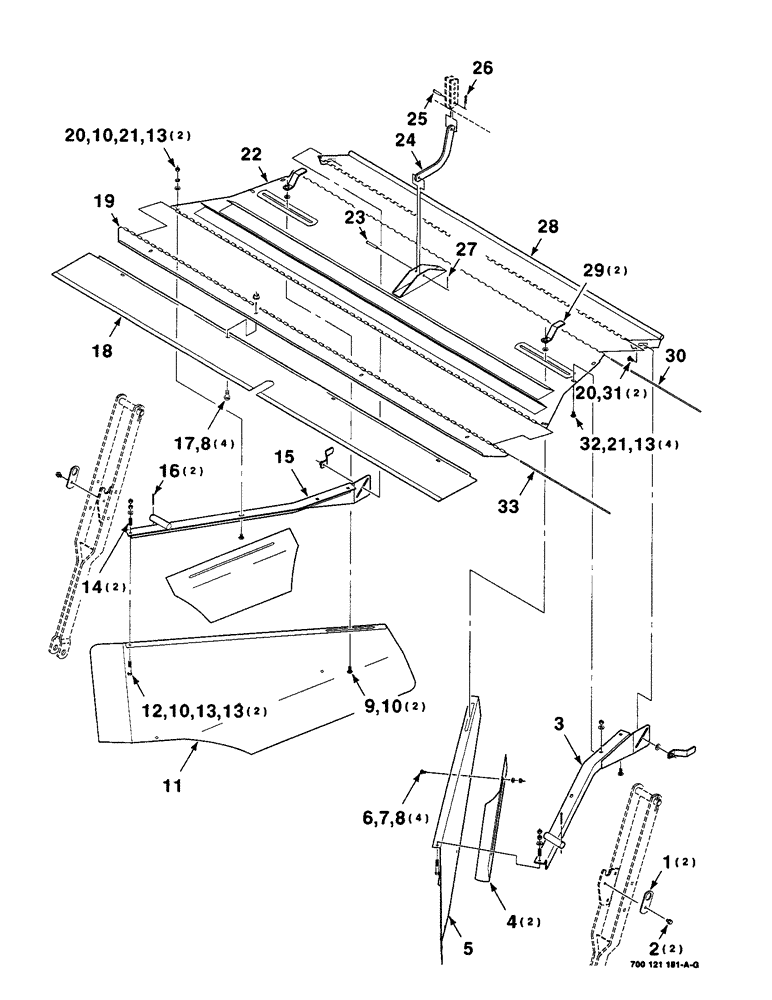

Запчасти Case IH 8840 (7-28) - WINDROW FORMING SHIELD ASSEMBLIES (S.N. CFH0032418 AND LATER (58) - ATTACHMENTS/HEADERS

1

700110223

STRAP

RETAINER STRAP

2шт.

2

7883366

SCREW,Hex Washer, 3/8" - 16 x 1/2"

3/8-16 X 1/2 HWHMS

2шт.

3

700110761

ANGLE

- mounting, left

1шт.

4

700115447

SHIELD

EXTENSION - shield forming

2шт.

5

700110903

SHIELD

- forming, left

1шт.

6

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

4шт.

7

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

4шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

8шт.

9

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

2шт.

10

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

6шт.

11

700110904

SHIELD

- forming, right

1шт.

12

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

13

425-106

NUT,3/8"-16, Cl 5

10шт.

14

58644

SPRING

- compression

2шт.

15

700110762

ANGLE

- mounting, right

1шт.

16

432-1228

COTTER PIN,3/16" x 1 3/4"

3/16" x 1 3/4"

2шт.

17

1270468C1

SELF-TAP SCREW,Cross Pan Hd, 5/16" - 18 x 1/2"

5/16 X 1/2 CRPHMS

4шт.

18

700115776

COVER

- forming shields

1шт.

19

700115778

HINGE

1шт.

20

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 X 3/4 RHSSNB

4шт.

21

492-11038

LOCK WASHER,3/8"

6шт.

22

700121181

PANEL

- deflector

1шт.

23

63644

CLEVIS PIN

3/8 X 2-1/8 CLEVIS PIN

1шт.

24

700114795

HANGER

1шт.

25

141-11

CLEVIS PIN,3/8" x 1 1/4"

3/8 X 1-1/4 CLEVIS PIN

1шт.

26

T54573

PIN

.120 HAIR PIN COTTER

1шт.

27

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

28

700111945

DEFLECTOR

- rear

1шт.

29

6232532

NUT

- nut

2шт.

30

6177794

PIN

- hinge

1шт.

31

496-21047

WASHER

7/16 HARDENED PLAIN WASHER

2шт.

32

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

4шт.

33

700115779

PIN

- hinge

1шт.
