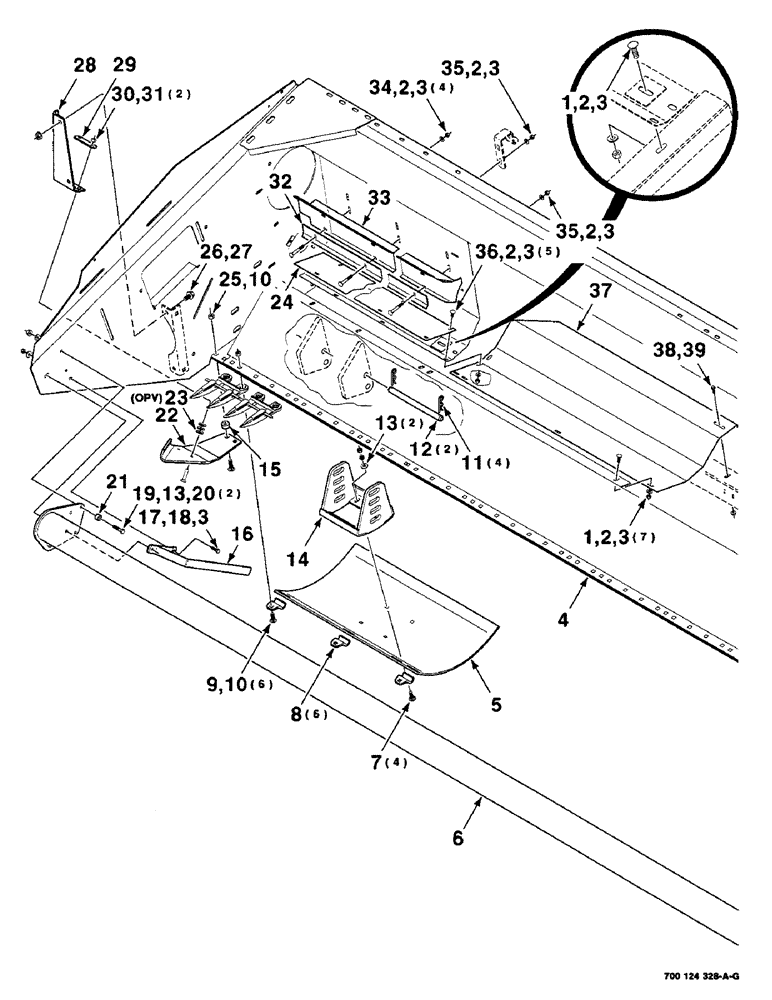

Запчасти Case IH 8840 (7-24) - AUGER PAN, DIVIDER AND SKID SHOE ASM - RIGHT (16 FOOT), (S.N. CFH0095053 AND LATER) (58) - ATTACHMENTS/HEADERS

1

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5

8шт.

2

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

19шт.

3

425-105

NUT,5/16"-18, G5

20шт.

4

700124308

FRAME

HEADER

1шт.

5

700110219

SKID PLATE

SKID SHOE

1шт.

6

700124286

BAR

LEAN BAR

1шт.

7

118-140

PLOW BOLT,3/8"-16 x 1 1/8", G5

3/16-18 X 1-1/4 PLOW BOLT

4шт.

8

6453799

CLIP

6шт.

9

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1 1/4", G5

6шт.

10

425-107

NUT,7/16"-14, G5

7/16-14 H

7шт.

11

S120261

PIN

HAIRPIN COTTER

4шт.

12

700110222

PIN

2шт.

13

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

4шт.

14

700110220

SUPPORT

- skid shoe

1шт.

15

700110561

SPACER

1шт.

16

700111947

DEFLECTOR

STRAP - deflector

1шт.

17

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

C Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

18

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

1шт.

19

26-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

3/8-16 X 1-1/2 C GR8 NP

2шт.

20

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

2шт.

21

6605752

SPACER

1шт.

22

700114711

DIVIDER

- right

1шт.

23

495-21044

WASHER,3/8"

1шт.

24

700124326

STRAP

1шт.

25

433-724

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

7/16-14 X 1-1/2 RHSNB

1шт.

26

360-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1/2-13 X 1 HFS GR8

1шт.

27

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

28

700114713

SUPPORT

- divider shoe, right

1шт.

29

700114716

COVER PLATE

PLATE - reinforcement

1шт.

30

419-2624

CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/2", Gr 5

3/8-16 X 1-1/2 PLOW BOLT

2шт.

31

425-106

NUT,3/8"-16, Cl 5

2шт.

32

700114693

ANGLE BAR

ANGLE - stripper

1шт.

33

700114689

STRIPPER

- right

1шт.

34

433-536

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/4", Gr 5

5/16-18 X 2-1/4 RHSNB

4шт.

35

433-540

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/2", Gr 5

5/16-18 X 2-1/2 RHSNB

2шт.

36

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G5, Full Thd

5шт.

37

700124319

PAN

- auger, right

1шт.

38

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

1шт.

39

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

1шт.
