Запчасти Case IH 8840 (7-20) - AUGER PAN, DIVIDER AND SKID SHOE ASM - RIGHT (14 & 16 FT.), (S.N. CFH0032001 THRU CFH0095149) (58) - ATTACHMENTS/HEADERS

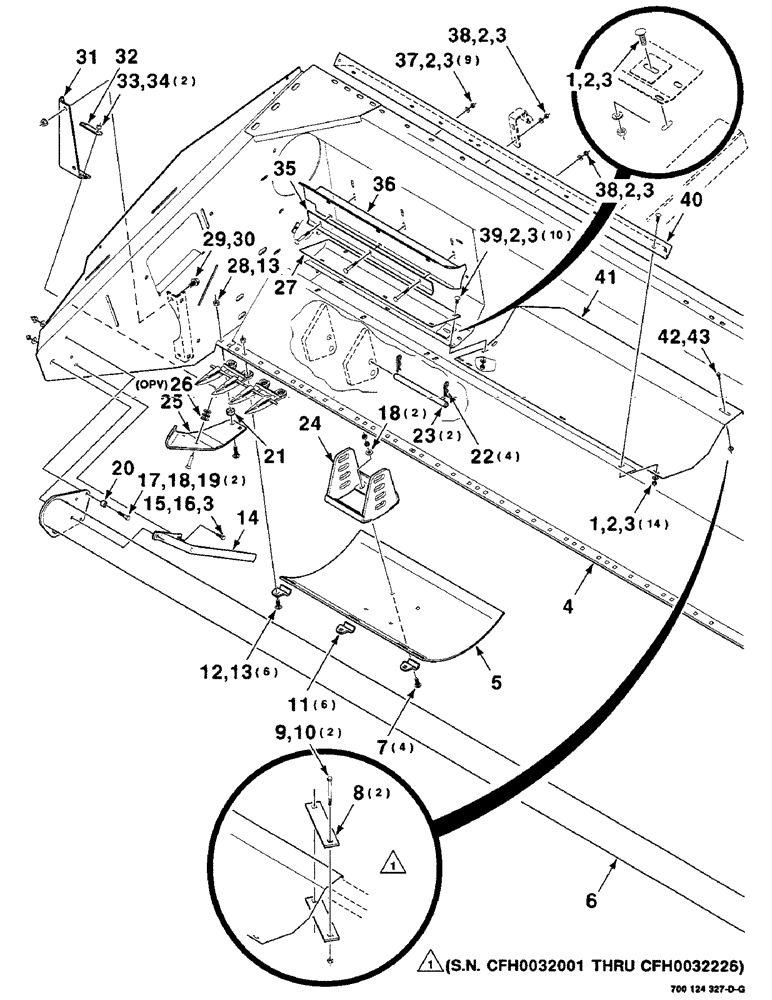

Схема запчастей Case IH 8840 - (7-20) - AUGER PAN, DIVIDER AND SKID SHOE ASM - RIGHT (14 & 16 FT.), (S.N. CFH0032001 THRU CFH0095149) (58) - ATTACHMENTS/HEADERS
25
2
13
8
28
29
42
10
30
27
9
3
2
3
20
3
12
13
15
36
31
6
2
23
22
5
14
2
2
38
16
18
41
7
24
3
40
34
32
3
3
26
37
2
1
33
1
21
38
43
35
4
3
39
17
11
19
18

Артикул

Название

Примечание

Количество

1

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5

15шт.

2

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

36шт.

3

425-105

NUT,5/16"-18, G5

37шт.

4

700124307

FRAME

HEADER

1шт.

5

700110219

SKID PLATE

SKID SHOE

1шт.

6

700124285

BAR

LEAN BAR

1шт.

Re: #6 lean bar.....700124286 is 16 feet long...700124285 is 14 feet long.

1шт.

7

118-140

PLOW BOLT,3/8"-16 x 1 1/8", G5

3/16-18 X 1-1/4 PLOW BOLT

4шт.

8

6839252

STRAP

- mounting

2шт.

9

113-252

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

2шт.

10

230-4216

LOCK NUT,3/8"-16, GA

3/8-16 HCLN

2шт.

11

6453799

CLIP

6шт.

12

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1 1/4", G5

6шт.

13

425-107

NUT,7/16"-14, G5

7/16-14 H

7шт.

14

700111947

DEFLECTOR

STRAP - deflector

1шт.

15

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

C Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

16

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

1шт.

17

26-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

3/8-16 X 1-1/2 C GR8 NP

2шт.

18

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

4шт.

19

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

2шт.

20

6605752

SPACER

1шт.

21

700110561

SPACER

1шт.

22

S120261

PIN

HAIRPIN COTTER

4шт.

23

700110222

PIN

2шт.

24

700110220

SUPPORT

- skid shoe

1шт.

25

700114711

DIVIDER

- right

1шт.

26

495-21044

WASHER,3/8"

1шт.

27

700124326

STRAP

1шт.

28

433-724

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

7/16-14 X 1-1/2 RHSNB

1шт.

29

360-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1/2-13 X 1 HFS GR8

1шт.

30

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

31

700114713

SUPPORT

- divider shoe, right

1шт.

32

700114716

COVER PLATE

PLATE - reinforcement

1шт.

33

419-2624

CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/2", Gr 5

3/8-16 X 1-1/2 PLOW BOLT

2шт.

34

425-106

NUT,3/8"-16, Cl 5

2шт.

35

700109704

ANGLE

- stripper, right

1шт.

36

700109700

STRIPPER

- right

1шт.

37

433-536

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/4", Gr 5

5/16-18 X 2-1/4 RHSNB

9шт.

38

433-540

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/2", Gr 5

5/16-18 X 2-1/2 RHSNB

2шт.

39

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G5, Full Thd

10шт.

40

700111552

STRIPPER

(14 foot)

1шт.

700114703

STRIPPER

(16 foot)

1шт.

41

700124319

PAN

- auger, right

1шт.

42

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

1шт.

43

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

1шт.

Выбрано товаров: 45
