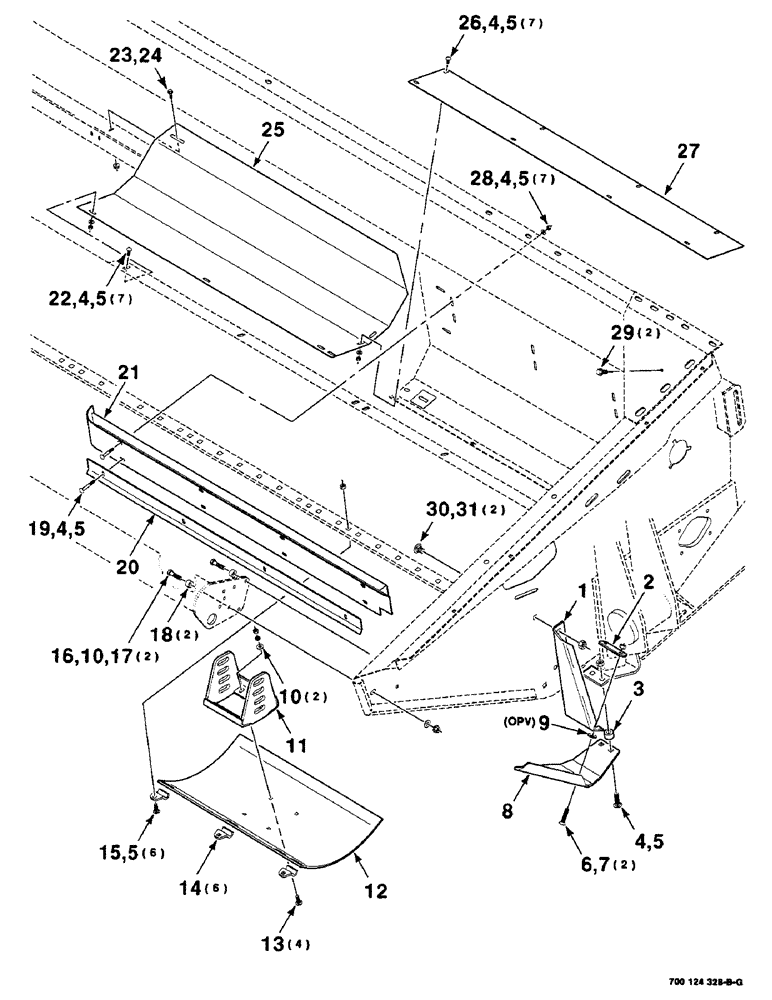

Запчасти Case IH 8840 (7-18) - AUGER PAN, DIVIDER AND SKID SHOE ASM - LEFT (16 FOOT), (S.N. CFH0095053 AND LATER) (58) - ATTACHMENTS/HEADERS

1

700114712

SUPPORT

- divider shoe, left

1шт.

2

700114716

COVER PLATE

PLATE - reinforcement

1шт.

3

700114717

SPACER

1шт.

4

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

23шт.

5

425-105

NUT,5/16"-18, G5

29шт.

6

419-2624

CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/2", Gr 5

PLOW BOLT

1шт.

7

425-106

NUT,3/8"-16, Cl 5

2шт.

8

700114709

DIVIDER

- left

1шт.

9

495-21044

WASHER,3/8"

1шт.

10

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

4шт.

11

700110220

SUPPORT

- skid shoe

1шт.

12

700110219

SKID PLATE

SKID SHOE

1шт.

13

118-140

PLOW BOLT,3/8"-16 x 1 1/8", G5

3/16-18 X 1-1/4 PLOW BOLT

4шт.

14

6453799

CLIP

6шт.

15

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1 1/4", G5

6шт.

16

26-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

3/8-16 X 1-1/2 C GR8 NP

2шт.

17

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

2шт.

18

6605752

SPACER

2шт.

19

433-540

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/2", Gr 5

5/16-18 X 2-1/2 RHSNB

1шт.

20

700114693

ANGLE BAR

ANGLE - stripper

1шт.

21

700114688

STRIPPER

WA - left

1шт.

22

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5

7шт.

23

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

1шт.

24

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

1шт.

25

700124320

PAN

- auger, left

1шт.

26

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G5, Full Thd

7шт.

27

700124316

STRAP

1шт.

28

433-536

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/4", Gr 5

5/16-18 X 2-1/4 RHSNB

7шт.

29

281-34912

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 X 3/4 HWHTCTS

2шт.

30

7870702

BOLT (MACHINE),Sq Nk, 1/2" - 13 x 3/4"

1/2-13 X 3/4 RHSNB

2шт.

31

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.
