(7-10) - WEAR PLATE ASSEMBLIES (14 FOOT) (S.N. CFH0032227 AND LATER)

Запчасти Case IH 8840 (7-10) - WEAR PLATE ASSEMBLIES (14 FOOT) (S.N. CFH0032227 AND LATER) (58) - ATTACHMENTS/HEADERS

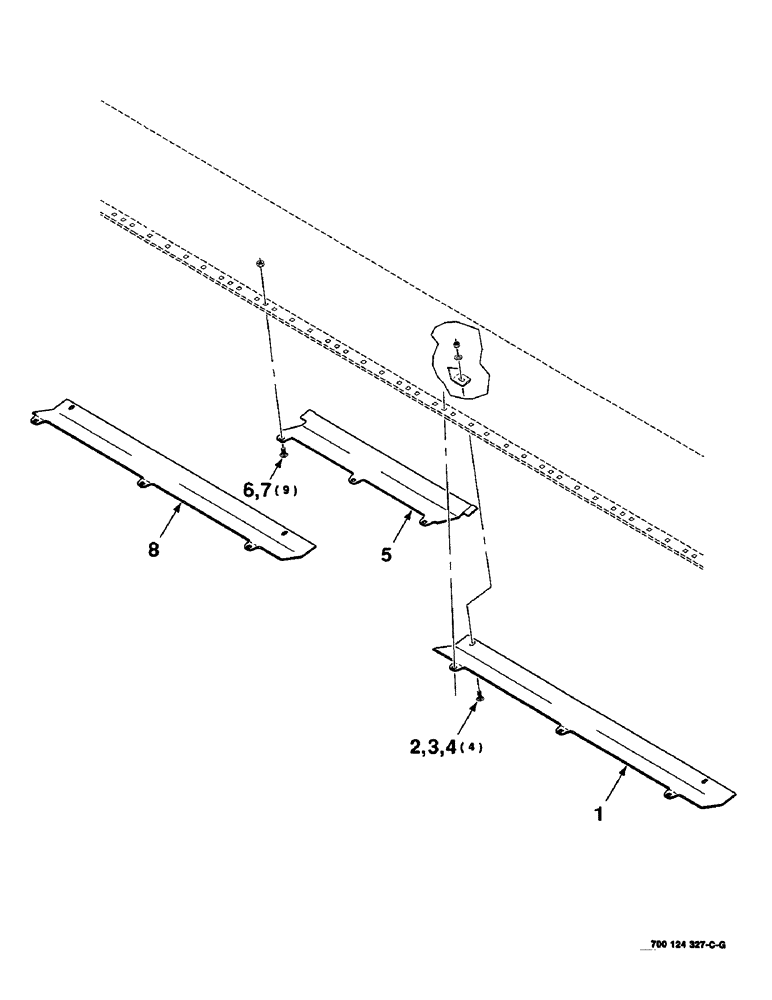

Схема запчастей Case IH 8840 - (7-10) - WEAR PLATE ASSEMBLIES (14 FOOT) (S.N. CFH0032227 AND LATER) (58) - ATTACHMENTS/HEADERS
1
5
8
2
7
3
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700114698

WEAR PLATE

- left

1шт.

2

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

4шт.

3

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

4шт.

4

425-106

NUT,3/8"-16, Cl 5

4шт.

5

700120999

WEAR PLATE

- center

1шт.

6

434-716

CARRIAGE BOLT,Sht Sq Nk, 7/16" - 14 x 1", Gr 5

7/16-14 X 1 RHSNB

9шт.

7

425-107

NUT,7/16"-14, G5

7/16-14 H

9шт.

8

700114699

WEAR PLATE

- right

1шт.
