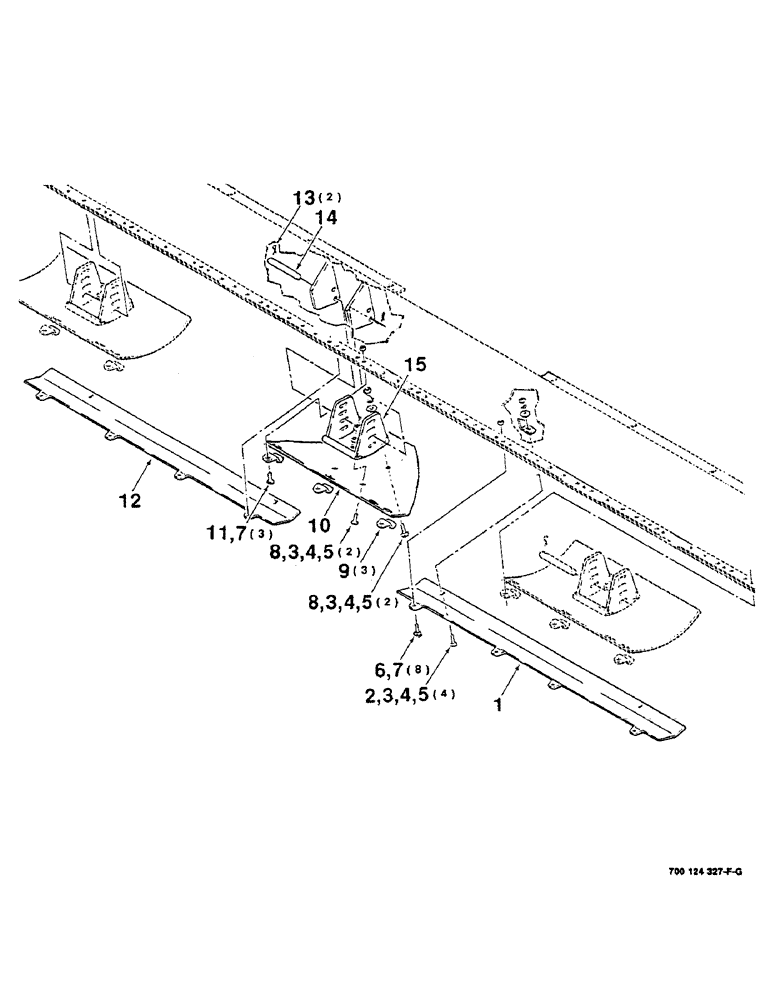

Запчасти Case IH 8840 (7-08) - SKID SHOE AND WEAR PLATE ASSEMBLY (S.N. CFH0032001 THRU (58) - ATTACHMENTS/HEADERS

1

700114698

WEAR PLATE

PLATE - wear, left (14 foot)

1шт.

700114700

PLATE

- wear, left (16 foot)

1шт.

2

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

4шт.

3

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

8шт.

4

492-11038

LOCK WASHER,3/8"

8шт.

5

425-106

NUT,3/8"-16, Cl 5

8шт.

6

434-716

CARRIAGE BOLT,Sht Sq Nk, 7/16" - 14 x 1", Gr 5

7/16-14 X 1 RHSNB

8шт.

7

425-107

NUT,7/16"-14, G5

7/16-14 H

11шт.

8

118-140

PLOW BOLT,3/8"-16 x 1 1/8", G5

3/8-16 X 1-1/4 PB

4шт.

9

6453799

CLIP

- shoe, center

3шт.

10

700115322

SHOE

- skid, center

1шт.

11

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1 1/4", G5

3шт.

12

700114699

WEAR PLATE

PLATE - wear, right (14 foot)

1шт.

700114701

PLATE

- wear, right (16 foot)

1шт.

13

S120261

PIN

.148 WIRE HAIR PIN COTTER

2шт.

14

700110222

PIN

1шт.

15

700110220

SUPPORT

- adjustable

1шт.
