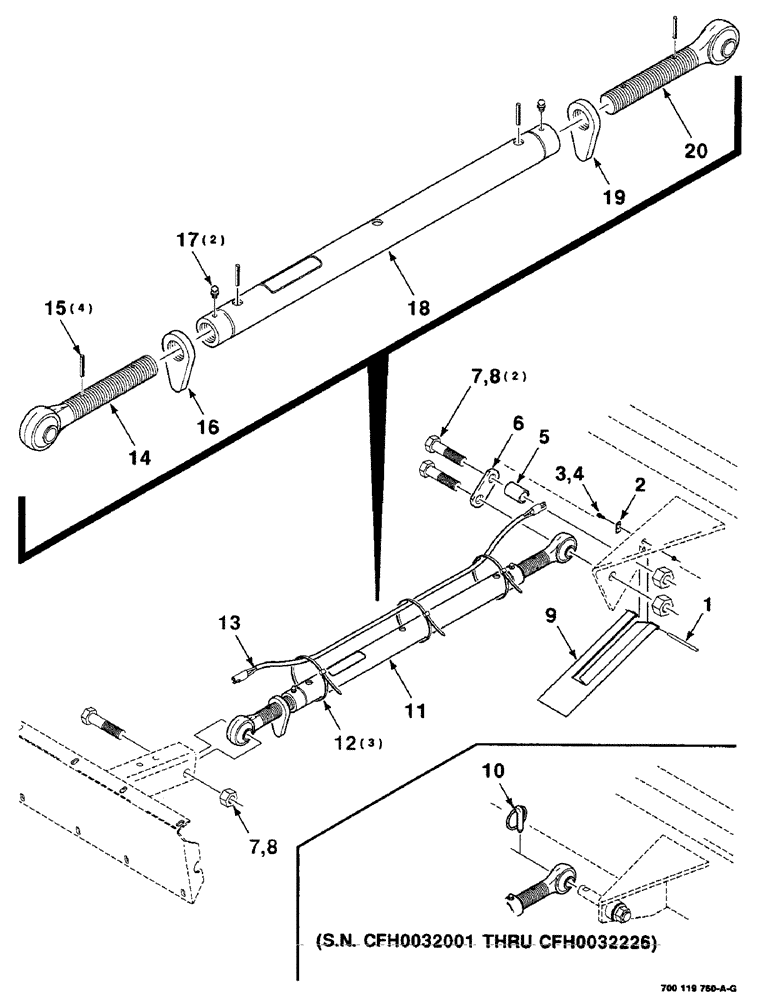

Запчасти Case IH 8840 (7-06) - HEADER SUPPORT LINKAGE ASSEMBLY (UPPER) (58) - ATTACHMENTS/HEADERS

1

700114528

PIN

- cover

1шт.

2

700114529

LUG

1шт.

3

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

1шт.

4

231-5146

FLANGE NUT,3/8"-16

1шт.

5

700114925

BUSHING

1шт.

6

700117954

STRAP

1шт.

7

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

.75 X 3 UNC GR5 YZD

3шт.

8

425-1012

NUT,3/4"-10, G5

3/4-10 H

3шт.

9

700114530

COVER

1шт.

10

D130037

HEADED PIN,8.73mm OD

7/16 X 1-1/2 LINCH PIN

1шт.

11

700119760

TIE-ROD

HEADER SUPPORT LINK COMPLETE

1шт.

12

529070

CABLE TIE,368.3mm L

TIE - cable

3шт.

13

700706637

FLEXIBLE HOSE

HARNESS - wire

1шт.

14

700117693

TIE-ROD

LINK END - right hand thread

1шт.

15

438-11220

LOCK PIN,3/16" x 1 1/4", Slotted

Pin, 3/16" x 1 1/4", Slotted

4шт.

16

700117684

HANDLE

- lock, right hand thread

1шт.

17

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

18

700116671

TUBE

WA - center

1шт.

19

700117683

HANDLE

- lock, left hand thread

1шт.

20

700117692

TIE-ROD

LINK END - left hand thread

1шт.
