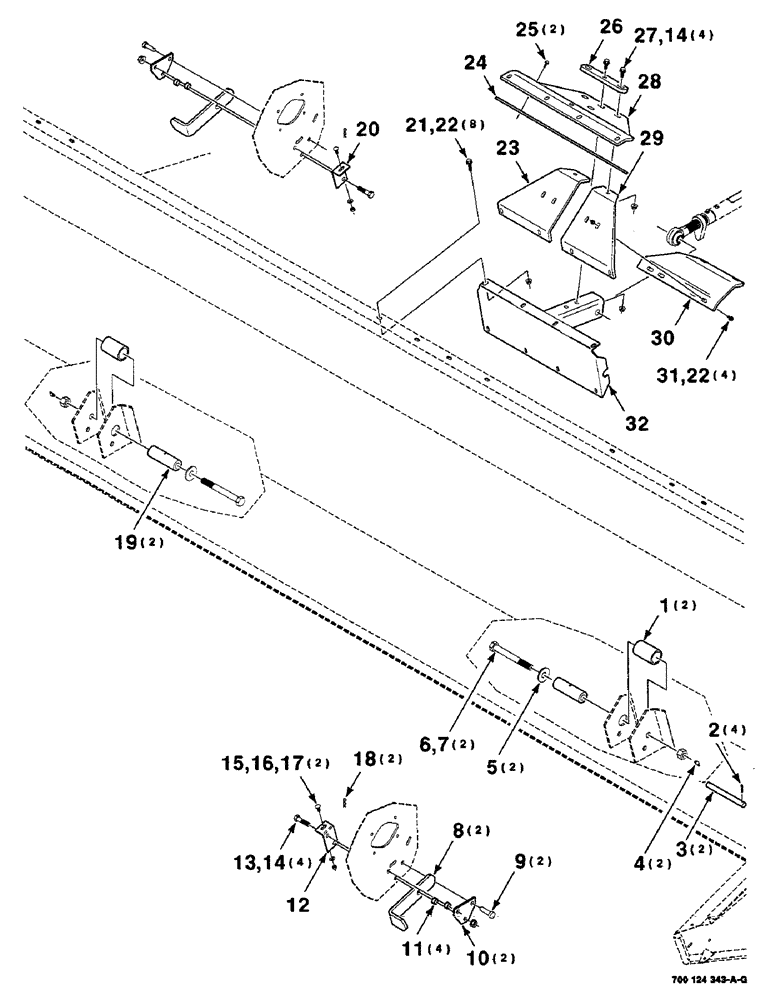

Запчасти Case IH 8840 (7-04) - HEADER MOUNTING ASSEMBLY (S.N. CFH0032661 AND LATER) (58) - ATTACHMENTS/HEADERS

1

6185508

BUSHING

HUB - outer

2шт.

2

432-1016

COTTER PIN,5/32" x 1"

5/32" x 1"

4шт.

3

700111961

PIN

- safety

2шт.

4

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1/4-28 X 45 DEGREE ZERK

2шт.

5

495-21081

WASHER,3/4"

2шт.

6

700110562

SCREW

- special

2шт.

7

425-1012

NUT,3/4"-10, G5

3/4-10 H

2шт.

8

700114714

KNIFE HEAD

ARM

2шт.

9

14145H

CLEVIS PIN,1/2" x 2.094"

1/2 X 1-3/4 CLEVIS PIN

2шт.

10

700114715

COVER PLATE

PLATE

2шт.

11

6555320

BUSHING

4шт.

12

700124318

ANGLE

- left

1шт.

13

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

14

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

15

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

16

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

17

425-105

NUT,5/16"-18, G5

2шт.

18

T54573

PIN

.125 HAIRPIN COTTER

2шт.

19

700110563

BUSHING

- inner

2шт.

20

700124317

ANGLE

- right

1шт.

21

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

8шт.

22

231-5146

FLANGE NUT,3/8"-16

12шт.

23

700124342

ANGLE

- right

1шт.

24

700124331

STRAP

1шт.

27

700710984

SCREW,Hex Flg, 1/2" x 1 1/4", G8 NC

1/2-13 X 1-1/4 HFS GR8

4шт.

28

700124333

GUSSET

1шт.

29

700124341

ANGLE

- left

1шт.

30

700124336

ANGLE

- mounting

1шт.

31

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

4шт.

32

700124337

SUPPORT

1шт.
