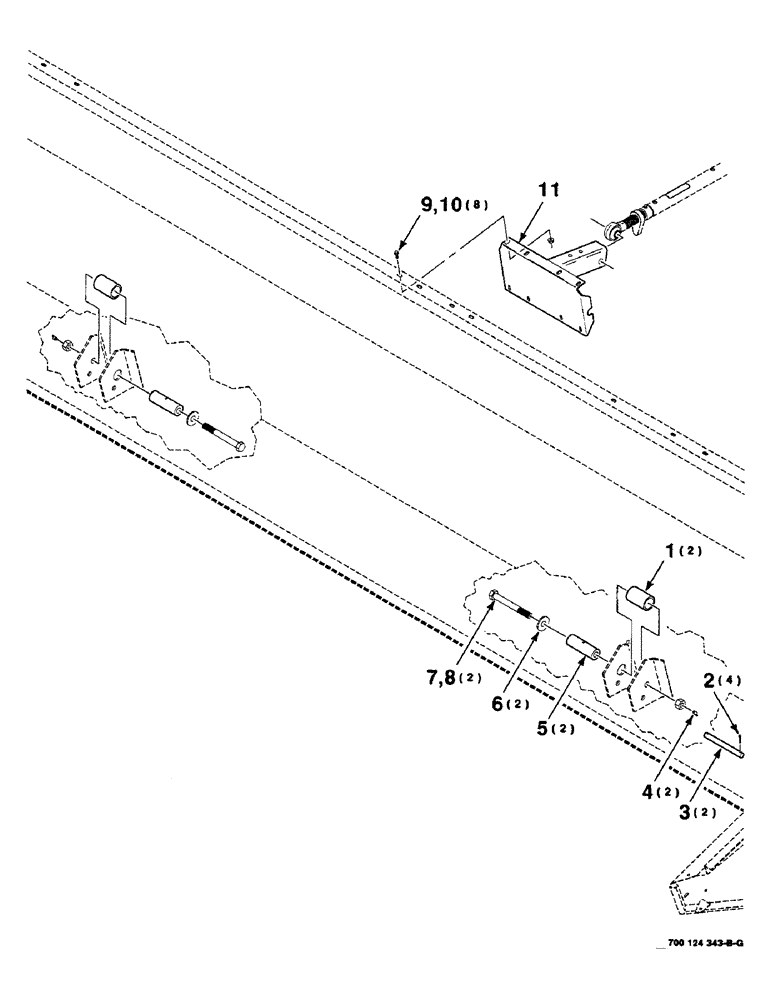

Запчасти Case IH 8840 (7-02) - HEADER MOUNTING ASSEMBLY (S.N. CFH0032001 THRU CFH0032660) (58) - ATTACHMENTS/HEADERS

1

6185508

BUSHING

HUB - outer

2шт.

2

432-1016

COTTER PIN,5/32" x 1"

5/32" x 1"

4шт.

3

700111961

PIN

- safety

2шт.

4

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1/4-28 X 45 DEGREE ZERK

2шт.

5

700110563

BUSHING

- inner

2шт.

6

495-21081

WASHER,3/4"

2шт.

7

700110562

SCREW

- special

2шт.

8

425-1012

NUT,3/4"-10, G5

3/4-10 H

2шт.

9

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

8шт.

10

231-5146

FLANGE NUT,3/8"-16

8шт.

11

700110226

SUPPORT

- upper

1шт.
