Запчасти Case IH 8840 (6-20) - REEL BAT AND TINE TUBE ASSEMBLY (16 FOOT), (S.N. CFH0032227 AND LATER) (58) - ATTACHMENTS/HEADERS

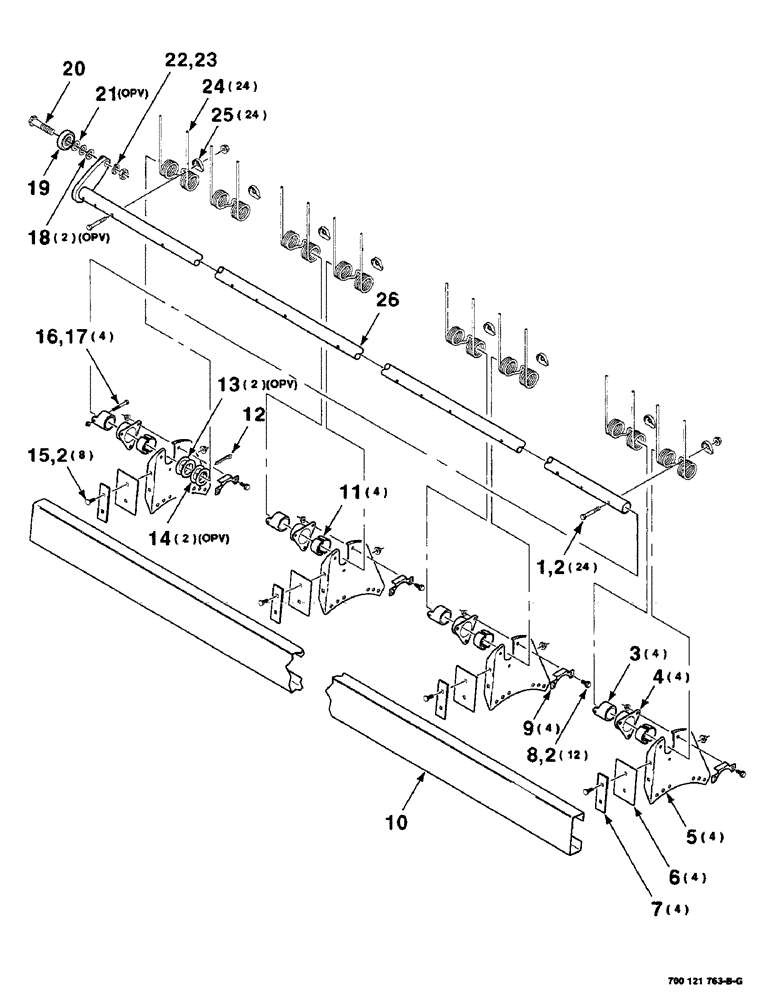

Схема запчастей Case IH 8840 - (6-20) - REEL BAT AND TINE TUBE ASSEMBLY (16 FOOT), (S.N. CFH0032227 AND LATER) (58) - ATTACHMENTS/HEADERS
12
16
25
2
24
18
4
22
13
1
20
15
23
9
7
5
21
19
2
10
14
17
26
8
2
6
11
3

Артикул

Название

Примечание

Количество

1

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

24шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

44шт.

3

6105159

NYLON BEARING,1.75"

BEARING - tine

4шт.

4

700708643

BEARING HOUSING

HOUSING - bearing

4шт.

5

700114555

SUPPORT

- bearing

4шт.

6

700114544

LARGE PLATE

PLATE - reel

4шт.

7

700114543

RETAINER

4шт.

8

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

12шт.

9

6831986

COVER

- bearing

4шт.

10

700124069

BAT

- reel

1шт.

11

700708642

BEARING HALF

WEDGE - half bearing

4шт.

12

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

13

195-2139

WASHER,36.52mm ID x 57.15mm OD x 2.03mm Thk

1-3/8 X 14 GAUGE NRMB

2шт.

14

195-2139

WASHER,36.52mm ID x 57.15mm OD x 2.03mm Thk

1-3/8 X 18 GAUGE NRMB

2шт.

15

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5

8шт.

16

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

4шт.

17

232-4114

LOCK NUT,1/4"-20, GC

1/4-20 HTLN GR B

4шт.

18

52233

BUSHING

5/8 X 14 GAUGE NRMB

2шт.

19

667925R91

ROLLER BEARING,0.628" ID x 2" OD x 15 mm

1шт.

20

8701005

SPECIAL BOLT,Hex, 5/8" - 18 x 2 1/4", Gr 5

5/8-18 X 2-1/4 C SPECIAL

1шт.

21

52175

BUSHING,25.48mm ID x 38.2mm OD x 3.17mm L

5/8 X 18 GAUGE NRMB

1шт.

22

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

23

425-1510

JAM NUT,Jam, 5/8"-18, G5

5/8-18 HEX JAM NUT GR 2

1шт.

24

7895642

TINE

- double

24шт.

25

261024

CLIP

- tine

24шт.

26

700121761

TUBE ASSY.

TUBE WA - tine, 14 foot "A"

1шт.

Выбрано товаров: 26
