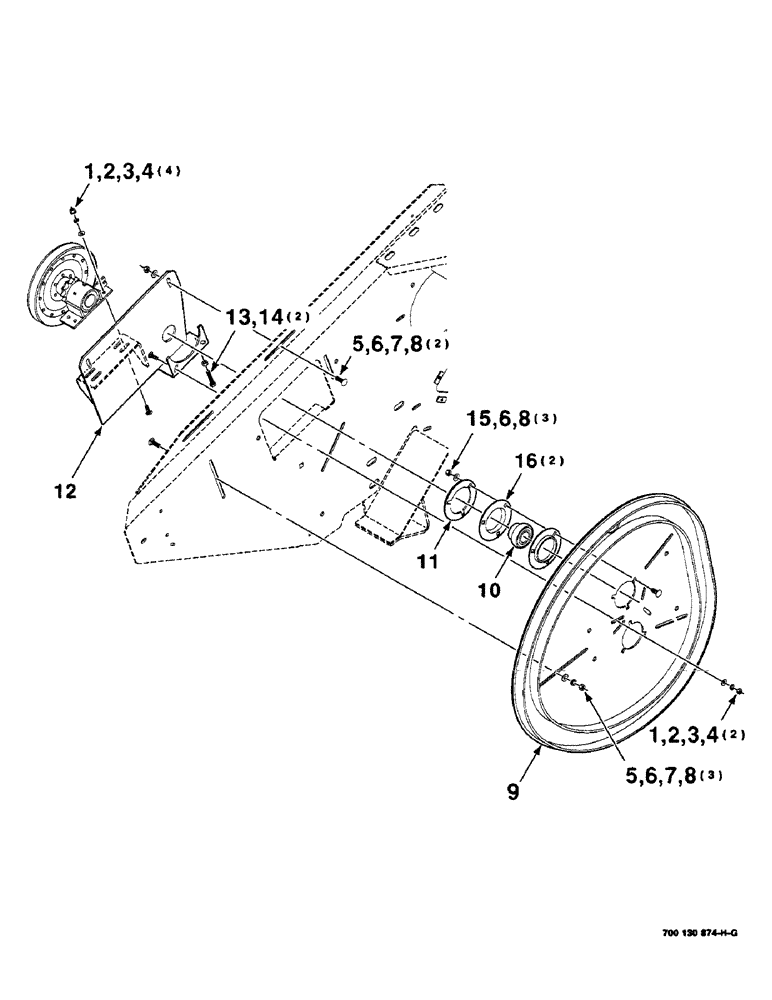

Запчасти Case IH 8840 (6-04) - REEL MOUNTING AND CAMTRACK ASSEMBLY (S.N. CFH0032001 THRU CFH0032226) (58) - ATTACHMENTS/HEADERS

1

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5

6шт.

2

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

6шт.

3

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

4

425-105

NUT,5/16"-18, G5

6шт.

5

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

5шт.

6

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

8шт.

7

492-11038

LOCK WASHER,3/8"

5шт.

8

425-106

NUT,3/8"-16, Cl 5

8шт.

9

700120804

ECCENTRIC

CAMTRACK WA

1шт.

10

700708091

SPHERICAL BEARING,34.93 mm ID x 72 mm OD x 38.89 mm

BEARING

1шт.

11

700117899

SHIM

1шт.

12

700114732

SUPPORT

MOUNTING - reel, right

1шт.

13

113-235

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5, Full Thd

2шт.

14

425-146

JAM NUT,3/8" - 16, Gr 5

3/8-16 J GR 2

2шт.

15

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

3шт.

16

T27207

FLANGED BEARING

FLANGE - bearing

2шт.
