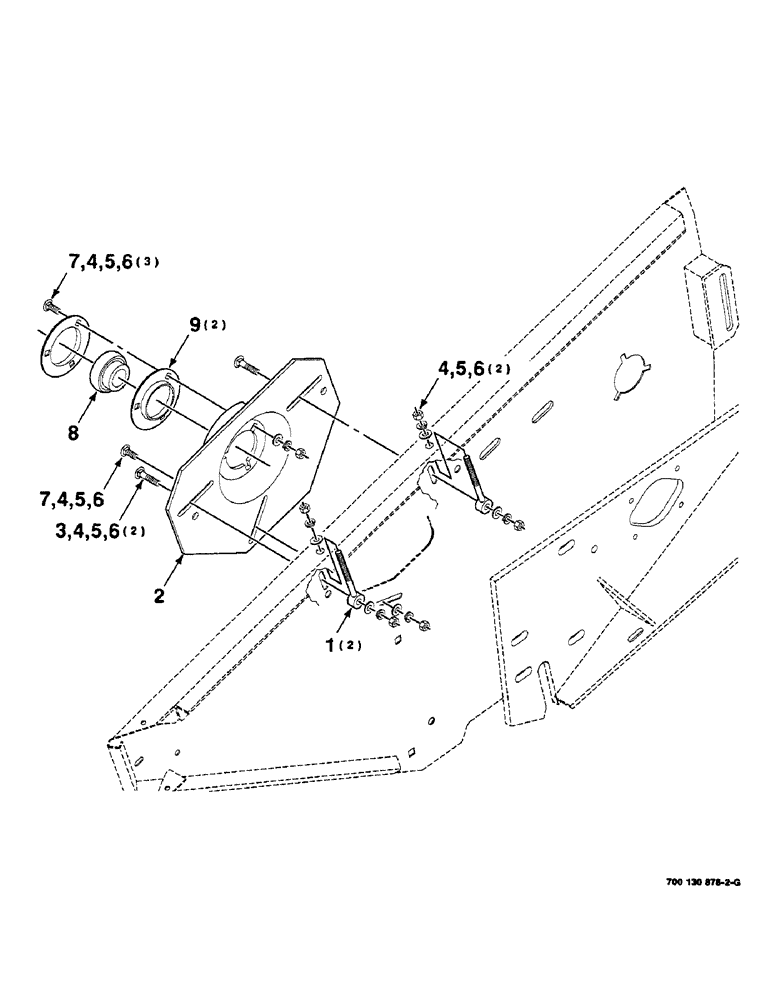

Запчасти Case IH 8840 (6-02) - REEL MOUNTING ASSEMBLY (LEFT) (58) - ATTACHMENTS/HEADERS

1

700110578

ROD

WA

2шт.

2

700110586

LARGE PLATE

PLATE WA

1шт.

3

433-628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

3/8-16 X 1-3/4 RHSNB

2шт.

4

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

8шт.

5

492-11038

LOCK WASHER,3/8"

8шт.

6

425-106

NUT,3/8"-16, Cl 5

8шт.

7

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

4шт.

8

619737R91

BEARING ASSY,31.76mm ID x 62mm OD x 18mm W

- spherical

1шт.

9

H747188

FLANGED BEARING,112.73 mm OD x 8.74 mm

FLANGE - bearing

2шт.
