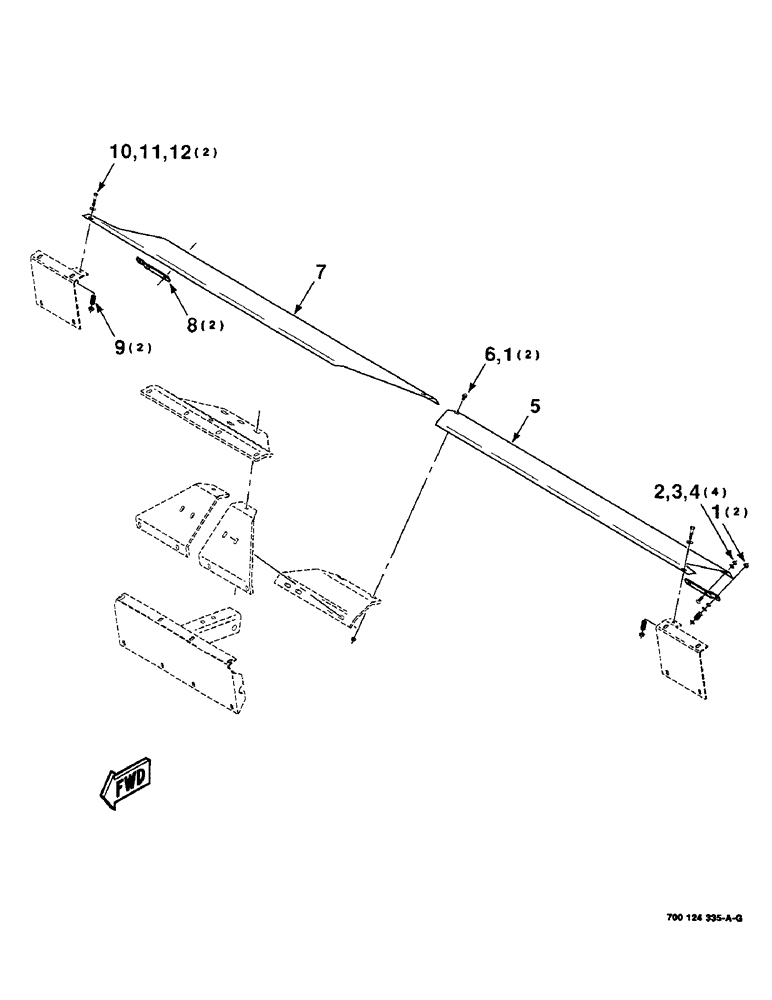

Запчасти Case IH 8840 (5-20) - HAY CONDITIONER SHIELD ASSEMBLIES (S.N. CFH0032661 AND LATER (58) - ATTACHMENTS/HEADERS

1

231-5146

FLANGE NUT,3/8"-16

4шт.

2

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

4шт.

3

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

4

425-105

NUT,5/16"-18, G5

4шт.

5

700124334

SHIELD

- left

1шт.

6

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

2шт.

7

700124335

SHIELD

- right

1шт.

8

700119749

STRAP

- shield

2шт.

9

7758212

SPRING

- compression

2шт.

10

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

11

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

12

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

2шт.
