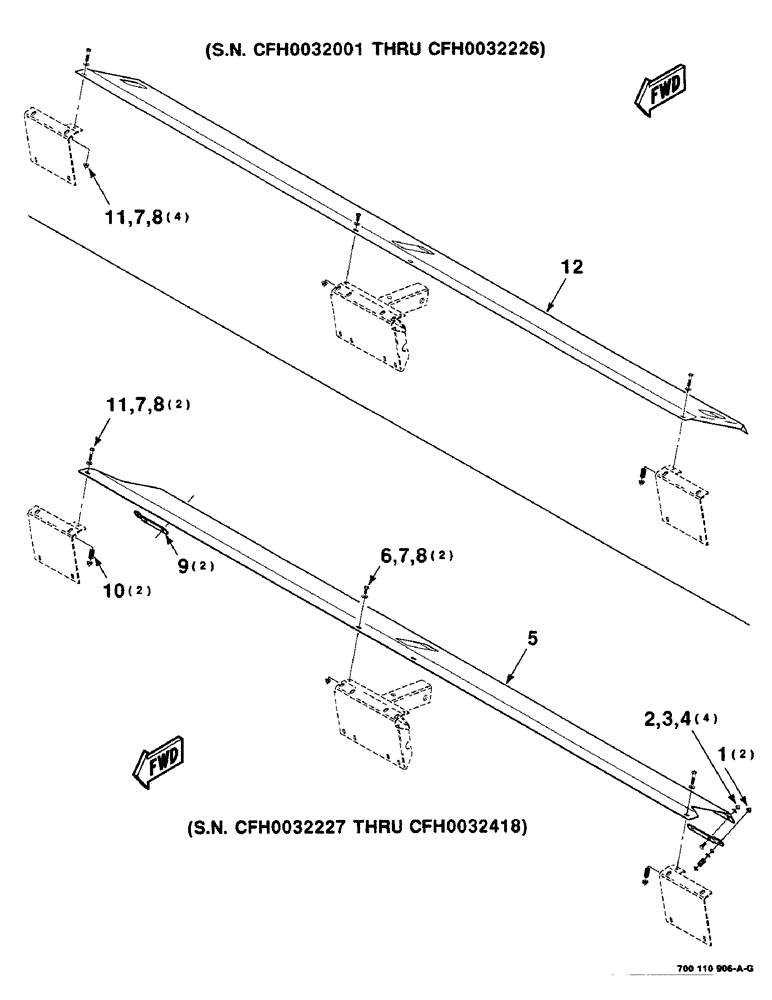

Запчасти Case IH 8840 (5-18) - HAY CONDITIONER SHIELD ASSEMBLIES, (S.N. CFH0032001 THRU CFH0032226) (58) - ATTACHMENTS/HEADERS

1

231-5146

FLANGE NUT,3/8"-16

2шт.

2

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

4шт.

3

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

4

425-105

NUT,5/16"-18, G5

4шт.

5

700119748

SHIELD

- conditioner

1шт.

6

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

C Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

7

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

8шт.

8

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

8шт.

9

700119749

STRAP

- shield

2шт.

10

7758212

SPRING

- compression

2шт.

11

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

6шт.

12

700110906

SHIELD

- hay conditioner (superseded by 700119748 and 700119749)

1шт.
