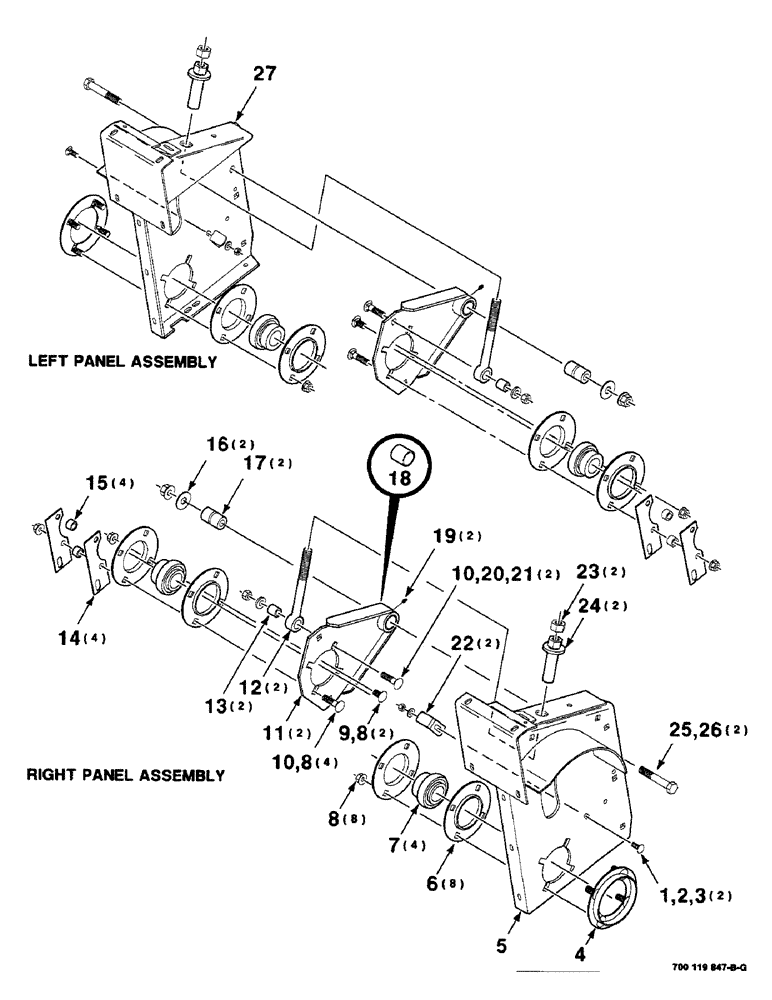

Запчасти Case IH 8840 (5-16) - HAY CONDITIONER PANEL ASSEMBLIES (LEFT AND RIGHT), (S.N. CFH0032227 AND LATER) (58) - ATTACHMENTS/HEADERS

1

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

2шт.

2

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

3

425-106

NUT,3/8"-16, Cl 5

2шт.

4

700115294

RING

WA - grass

1шт.

5

700130345

PANEL

- conditioner, right

1шт.

6

663562R1

FLANGE

8шт.

7

50328

SPHERICAL BEARING,38.1 mm ID x 80 mm OD x 18, 56.36 mm

- spherical

4шт.

8

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

16шт.

9

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 X 1 RHSNB

2шт.

10

433-832

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

1/2-13 X 2 RHSNB

6шт.

11

700109404

ARM ASSY.

ARM ASSEMBLY (includes item 18)

2шт.

12

700108789

EYEBOLT

2шт.

13

700108790

SPACER

2шт.

14

700119854

SUPPORT

STRAP

4шт.

15

428938

SPACER

4шт.

16

6834402

WASHER

- special

2шт.

17

6834394

BUSHING,17.46mm ID x 31.75mm OD x 53.5mm L

2шт.

18

87010285

GUARD

- bronze

1шт.

19

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

20

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

2шт.

21

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

22

700109432

STOP

2шт.

23

425-1112

NUT,3/4"-16, G5

3/4-16 H

2шт.

24

700108786

STOP

2шт.

25

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

2шт.

26

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

2шт.

27

700130343

PANEL

- conditioner, left

1шт.
