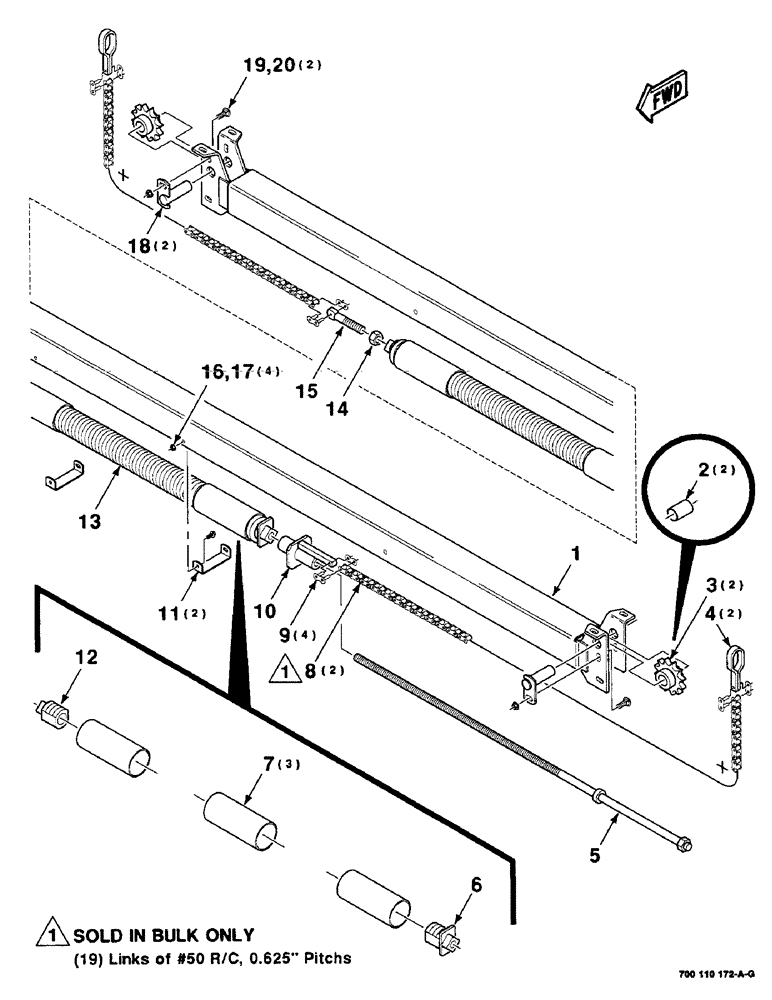

Запчасти Case IH 8840 (5-08) - HAY CONDITIONER SPRING ASSEMBLY (S.N. CFH0032001 THRU CFH0032226) (58) - ATTACHMENTS/HEADERS

1

700110173

CHANNEL

WA

1шт.

2

740803

BUSHING

- oilite

2шт.

3

6111496

SPROCKET ASSY.

SPROCKET ASSEMBLY - 12 tooth (includes item 2)

2шт.

4

6835896

STRAP

2шт.

5

700110182

ROD

DRAWBAR

1шт.

6

451328

PLUG

- spring

1шт.

7

727537

TUBE,2.25" OD, 6" Length

- neoprene

3шт.

8

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

#50 ROLLER CHAIN (10 foot bulk)

1шт.

9

47530

LINK, CONNECTING

#50 CONNECTOR LINK (with pins)

4шт.

10

700110179

SPARE PART

ADAPTER

1шт.

11

700110185

SUPPORT

STRAP - support

2шт.

12

299230

PLUG

- spring

1шт.

13

453498

SPRING

ASSEMBLY (includes items 6, 7 and 12)

1шт.

14

425-1510

JAM NUT,Jam, 5/8"-18, G5

5/8-11 HEX JAM NUT

1шт.

15

700110184

ROD

DRAWBOLT

1шт.

16

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

17

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

18

6831069

PIN

WA

2шт.

19

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

2шт.

20

231-5146

FLANGE NUT,3/8"-16

2шт.
