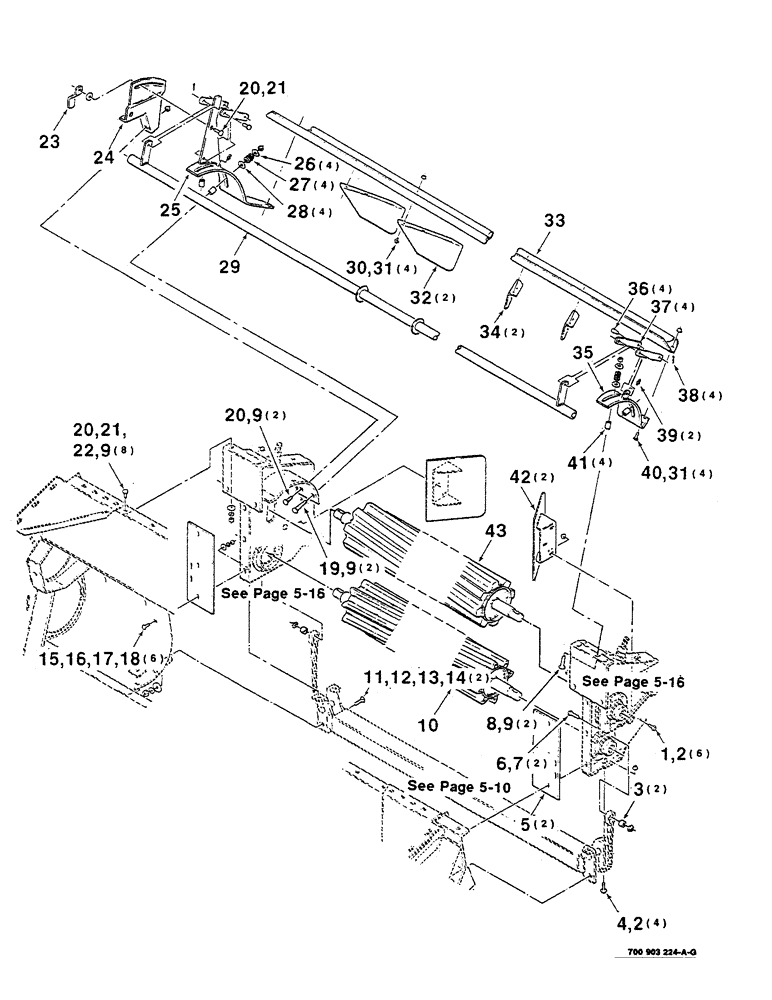

Запчасти Case IH 8840 (5-06) - HAY CONDITIONER ASSEMBLY (S.N. CFH0032227 AND LATER) (58) - ATTACHMENTS/HEADERS

1

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

6шт.

2

231-5146

FLANGE NUT,3/8"-16

10шт.

3

428938

SPACER

2шт.

4

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

5

700110186

STEEL PLATE

SHIM

2шт.

6

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

7

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

8

433-628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

3/8-16 X 1-3/4 RHSNB

2шт.

9

425-106

NUT,3/8"-16, Cl 5

14шт.

10

700115122

ROLLER

ROLL WA - lower

1шт.

11

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 RHSNB

2шт.

12

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

2шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

14

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

15

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5

6шт.

16

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

6шт.

17

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

18

425-105

NUT,5/16"-18, G5

6шт.

19

433-636

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 5

3/8-16 X 2-1/4 RHSNB

2шт.

20

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

11шт.

21

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

9шт.

22

492-11038

LOCK WASHER,3/8"

8шт.

23

6232532

NUT

ASSEMBLY

1шт.

24

700119751

SUPPORT

MOUNTING

1шт.

25

700119757

SUPPORT

MOUNTING WA - deflector, right

1шт.

26

496-81010

WASHER

3/8 HARDENED WIDE PLAIN WASHER

4шт.

27

700709215

SPRING

4шт.

28

495-11066

WASHER,5/8", SAE

5/8 NARROW PLAIN WASHER

4шт.

29

700119753

FLEXIBLE HOSE

PIPE ASSEMBLY (S.N. CFH0032227 thru CFH0032660)

1шт.

700124668

PIPE

ASSEMBLY (S.N. CFH0032661 and later)

1шт.

30

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

31

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

8шт.

32

700110909

FIN

- right

2шт.

33

700110706

SHIELD

1шт.

34

700110907

FIN

- left

2шт.

35

700119755

SUPPORT

MOUNTING WA - deflector, left

1шт.

36

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

4шт.

37

700111936

STRAP

4шт.

38

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

4шт.

39

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

40

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

4шт.

41

700119752

SPACER

4шт.

42

700110202

SHIELD

WA - forming

2шт.

43

700706617

ROLL

- rubber, upper

1шт.

700121385

ROLL

- steel, upper (extra equipment)

1шт.
