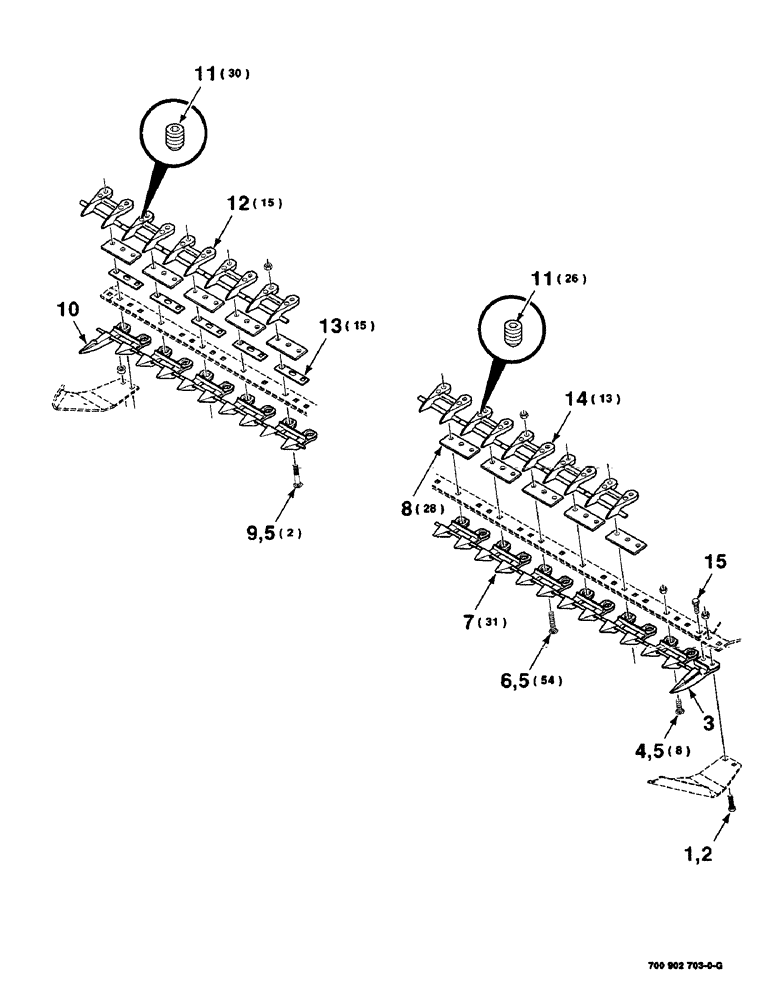

Запчасти Case IH 8840 (3-28) - ADJUSTABLE STUB GUARD ASSEMBLY (16 FOOT) (58) - ATTACHMENTS/HEADERS

1

700706821

SCREW

7/16-20 X 1-1/2 FTC

1шт.

2

425-117

NUT,7/16"-20, G5

1шт.

3

NLS

NO LONGER SERVICED

- single

1шт.

4

433-724

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

7/16-14 X 1-1/2 RHSNB

8шт.

5

425-107

NUT,7/16"-14, G5

7/16-14 H

64шт.

6

433-736

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2 1/4", Gr 5

7/16-14 X 2-1/4 RHSNB

54шт.

7

49312

GUARD

- double, stub (packaged 25 per box)

31шт.

8

700106256

PLATE

SHIM - upper

28шт.

9

1707215

BOLT

7/16-14 X 2-1/2 RHSNB

2шт.

10

748335

GUARD

- double, end, right

1шт.

11

700703319

SET SCREW,1/2" - 13 x 1/2"

1/2-13 X 1/2 OVAL POINT SOCKET SET SCREW (with patch lock)

56шт.

12

700127872

GUARD

- double, stub, top adjustable (includes item 11)

15шт.

700133232

GUARD

- double, stub, top adjustable (includes item 11)

15шт.

Ref # 12- These are for the right side of the header. Have slightly higher clearance to accomodate overlap bar.

1шт.

13

700111956

PLATE

SHIM - lower

15шт.

Ref # 14- These are for the left side of the header.

1шт.

14

700106782

FINGER

GUARD - double, stub, top adjustable (includes item 11)

13шт.

15

414-716

BOLT,Hex, 7/16" - 20 x 1", Gr 5

1шт.

NOTE: No top guards are used on the first two sets of holes on either end of the header because of the knife head p/n 700114594. The drawing shown here is not correct.

1шт.
