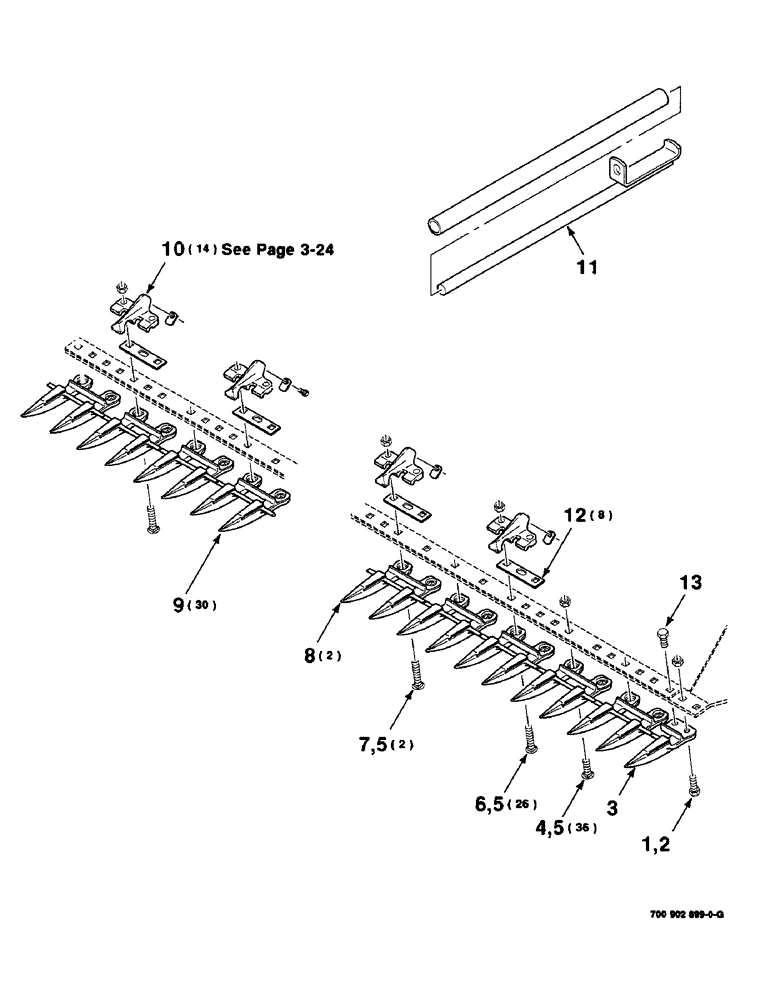

Запчасти Case IH 8840 (3-22) - HOLDDOWN AND GUARD ASSEMBLY - RANGE GUARD (16 FOOT) (58) - ATTACHMENTS/HEADERS

1

700706821

SCREW

7/16-20 X 1-1/2 FTC

1шт.

2

425-117

NUT,7/16"-20, G5

1шт.

3

049395

FINGER

- single

1шт.

4

433-724

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

7/16-14 X 1-1/2 RHSNB

36шт.

5

425-107

NUT,7/16"-14, G5

7/16-14 H

64шт.

6

111-416

CARRIAGE BOLT,Short NK, 7/16"-14 x 2", G5

7/16-14 X 2 RHSNB

26шт.

7

433-736

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2 1/4", Gr 5

7/16-14 X 2-1/4 RHSNB

2шт.

8

700707464

GUARD

- double, center

2шт.

9

700707147

GUARD

- double

30шт.

10

700117849

PACKAGE

HOLDDOWN - with hardware

14шт.

11

6135081

GUARD

STRAIGHTENER TOOL

1шт.

12

700111956

PLATE

SHIM

8шт.

13

414-716

BOLT,Hex, 7/16" - 20 x 1", Gr 5

1шт.
