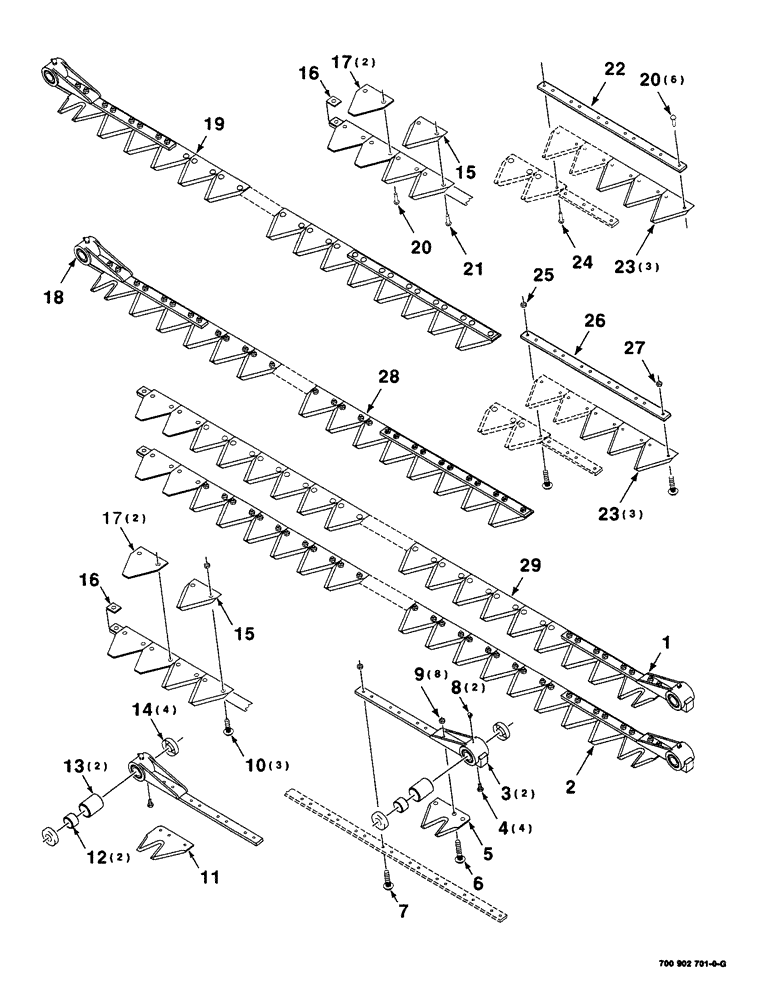

Запчасти Case IH 8840 (3-16) - SICKLE ASSEMBLIES (14 FOOT) (58) - ATTACHMENTS/HEADERS

1

700114590

KNIFE

SICKLE ASSEMBLY - left, riveted

1шт.

2

700715165

KNIFE ASSY

SICKLE ASSEMBLY - left, bolted

1шт.

3

700114594

KNIFE HEAD

SICKLE HEAD ASSEMBLY

2шт.

4

28-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 8

1/4-28 X 1/2 C GR8 NP

4шт.

5

700705462

KNIFE SECTION

DOUBLE END SECTION, left

1шт.

6

700706479

BOLT AND NUT

PACKAGE OF 50 #12-24 X 1-1/4 BOLTS AND NUTS

1шт.

7

700705297

KIT

PACKAGE OF 50 #12-24 X 1 BOLTS AND NUTS

1шт.

8

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

2шт.

9

1954816C1

LOCK NUT

12-24 SPECIAL LOCK NUT

8шт.

10

700705296

BOLT AND NUT

PACKAGE OF 50 #12-24 X 5/8 BOLTS AND NUTS

3шт.

11

700705463

KNIFE SECTION

DOUBLE END SECTION, right

1шт.

12

B18254

NEEDLE BEARING,Needle, 25.4mm ID x 31.75mm OD x 25.4mm W

NEEDLE - bearing

2шт.

13

700114599

BUSHING,16.27mm ID x 25.55mm OD x 38mm L

INNER RACE

2шт.

14

697494R91

OIL SEAL

SEAL

4шт.

15

700705300

KNIFE SECTION

PACKAGE OF 25 TOP SERRATED SECTIONS

2шт.

16

6821052

SHIM

2шт.

17

V94766

SPARE PART

BLUNT SERRATED SECTION

4шт.

18

700715166

KNIFE ASSY

SICKLE ASSEMBLY - right, bolted

1шт.

19

700114591

KNIFE

SICKLE ASSEMBLY - right, riveted

1шт.

20

64923

RIVET

NO. 5-1/2 X 7/16 OVAL HEAD RIVET

7шт.

21

990817R91

RIVET

NO. 5-1/2 X 9/16 OVAL HEAD RIVET

1шт.

22

700114605

EXTENSION

BAR - extension, riveted

1шт.

23

51200281

KNIFE SECTION

TAPERED HOLE SECTION

6шт.

24

51200830

RIVET

NO. 5-1/2 X 7/8 OVAL HEAD RIVET

1шт.

25

700715170

BOLT

12-24 X 3/4 BOLTS AND NUTS

1шт.

Ref #25 There are 5 of these bolts used to hold bar #26 onto the main right sickle bar. There are then 6 of #27 bolts that hold the 3 sickle sections onto the end of the bar #26.

1шт.

Item#25-Changed from screw-countersunk to round head standard. Bulletin NHFSB00996 is incorrect for description. See quality comments for more info on the 700715170 and 700715160.

1шт.

26

700715218

BAR

- reinforcement, bolted

1шт.

27

700715160

HARDWARE,Flat Hd, CSK, #12 - 24 x 0.50", Spcl

12-24 X 1/2 BOLTS AND NUTS

1шт.

28

700114897

KNIFE

SICKLE ASSEMBLY - right, (less head) (includes items 4, 6, 7, 9, 11, 15, and 21)

1шт.

29

700114896

KNIFE

SICKLE ASSEMBLY - left (less head) (includes items 4, 5, 6, 7, 9, 15, and 21)

1шт.

FOR BOLT ON SECTIONS:

1шт.

P/N 700715170 are round head bolts and P/N 700715160 are allen head-countersunk bolts. 5 of item #27 are also used on the left sickle to hold on two sickle sections and shim, ref #16

1шт.

re 748210 sickle section. this part comes from production w/countersunk rivet. per hfi engr the sickle section vendor has a machine that can apply this rivet in prod. but for service, there probably is not a machine out in the field to do this, and normal field installation of the rivet laying loose in the countersunk hole when it is peened from the opposite side. For field repairs, engineer wants to use the oval head rivet and peen the rivet into the countersunk hole which will result in a secure file. p

1шт.

APPLIES TO RIVETED SECTIONS ONLY!!!!!!

1шт.
