(3-12) - SWAYBAR LINK ASSEMBLY (S.N. CFH0032227 THRU CFH0032417)

Запчасти Case IH 8840 (3-12) - SWAYBAR LINK ASSEMBLY (S.N. CFH0032227 THRU CFH0032417) (58) - ATTACHMENTS/HEADERS

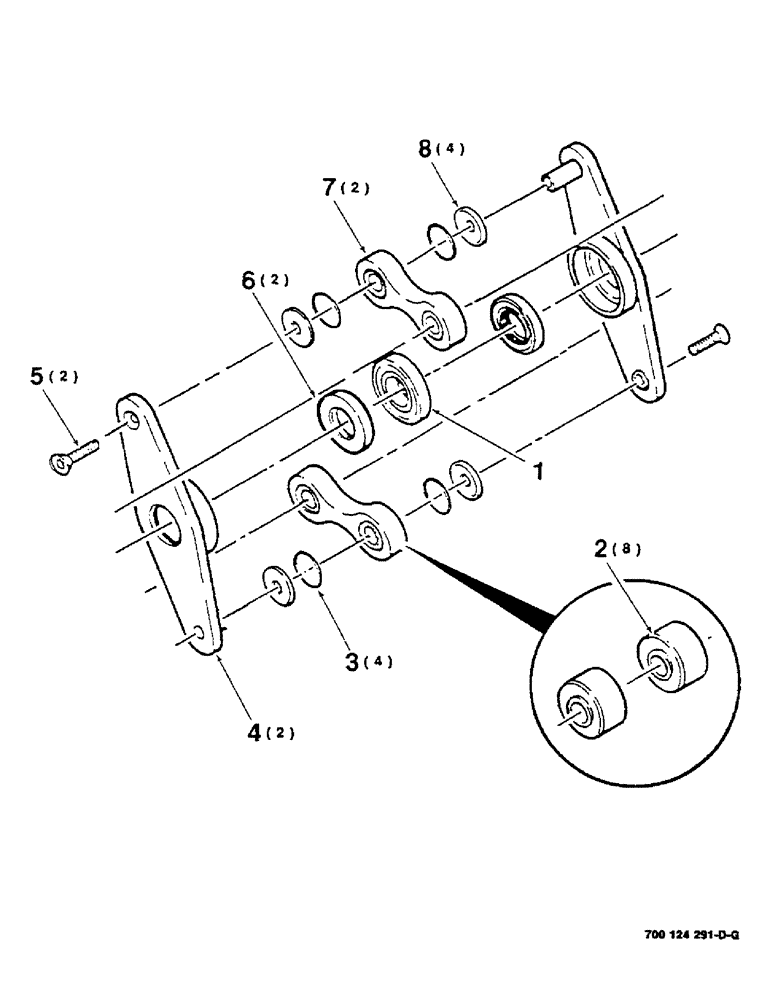

Схема запчастей Case IH 8840 - (3-12) - SWAYBAR LINK ASSEMBLY (S.N. CFH0032227 THRU CFH0032417) (58) - ATTACHMENTS/HEADERS
5
6
3
8
1
4
2
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

173809C91

BEARING ASSY,35mm ID x 80mm OD x 21mm W

BEARING

1шт.

2

7714629

BALL BEARING,17mm ID x 40mm OD x 20.64mm W

BEARING

8шт.

3

8744187

O-RING,39.7mm ID x 44.93mm OD x 2.69mm

4шт.

4

700121401

COVER PLATE

PLATE - link

2шт.

5

164-130

HEX SOC SCREW,Flat Hd, 1/2" - 20 x 1 1/4"

1/2-13 X 1-1/4 HSFCSHCS

2шт.

6

700709813

SEAL

- grease

2шт.

7

700114630

LINK ASSY.

LINK ASSEMBLY (includes item 2)

2шт.

8

700709814

WASHER

WASHER

4шт.
