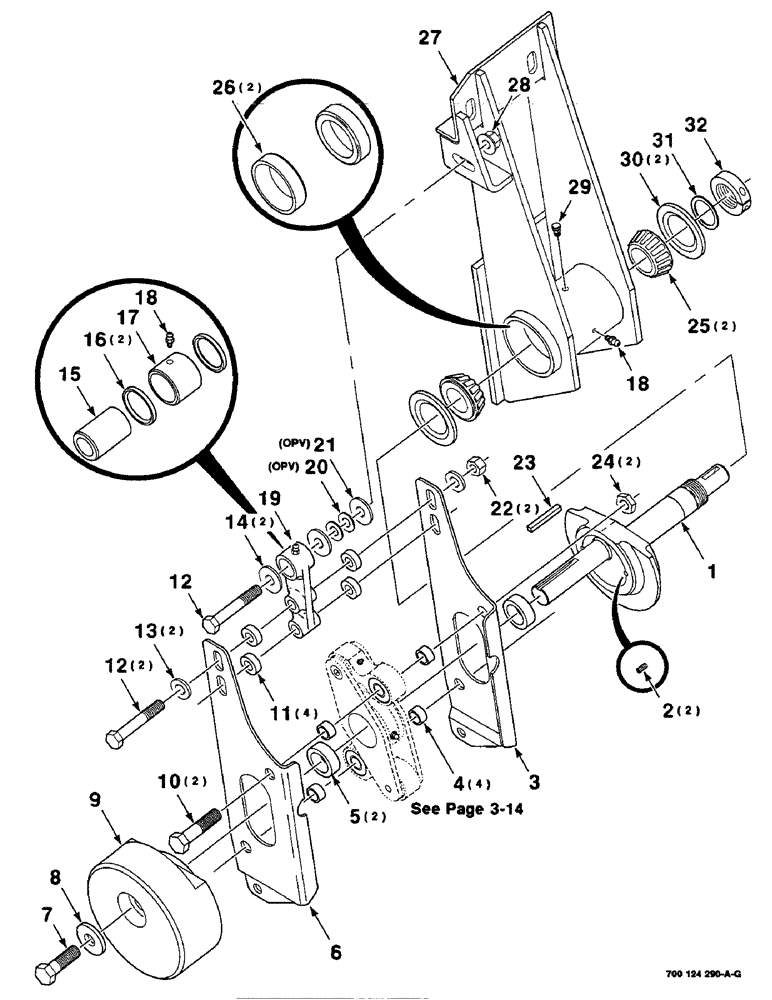

Запчасти Case IH 8840 (3-09) - SWAYBAR ASSEMBLY (LEFT) (S.N CFH0032661 AND LATER) (58) - ATTACHMENTS/HEADERS

1

700124293

PINION

PITMAN ASSEMBLY (includes item 2)

1шт.

2

483-13812

SET SCREW,Hex Soc, 3/8"-16 x 3/4"

3/8-16 X 3/4 CPHSSS

2шт.

3

700124296

LARGE PLATE

SWAYBAR PLATE

1шт.

4

700124304

SPACER

4шт.

5

700124303

SPACER

2шт.

6

700124298

LARGE PLATE

SWAYBAR PLATE

1шт.

7

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

1шт.

8

700114639

WASHER

1шт.

9

700124299

FLYWHEEL

1шт.

10

413-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

3/4-10 X 3-1/4 C

2шт.

11

700124306

SPACER

4шт.

12

26-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 8

5/8-11 X 3-3/4 C GR8

3шт.

13

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

2шт.

14

700119659

WASHER,16.66mm ID x 44.45mm OD x 6.35mm Thk

5/8 HARDENED WASHER

2шт.

15

700114599

BUSHING,16.27mm ID x 25.55mm OD x 38mm L

- needle bearing

1шт.

16

697494R91

OIL SEAL

SEAL

2шт.

17

B18254

NEEDLE BEARING,Needle, 25.4mm ID x 31.75mm OD x 25.4mm W

BEARING - needle

1шт.

18

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

19

700114625

LINK

ASSEMBLY (includes items 15, 16, 17 and 18)

1шт.

20

495-11066

WASHER,5/8", SAE

5/8 X 14 GAUGE WRMB

1шт.

21

495-21069

WASHER,5/8"

5/8 WIDE PLAIN WASHER

1шт.

22

429-1010

NUT,5/8"-11, G8

2шт.

23

761312

KEY

5/16 X 2-1/2 STRAIGHT KEY

1шт.

24

425-1412

JAM NUT,Jam, 3/4"-10, G5

3/4-10 J

2шт.

25

298194R91

ROLLER BEARING,44.45mm ID x 29.37mm W

BEARING CONE

2шт.

26

170254R1

BEARING, CUP

BEARING CUP

2шт.

27

700114608

HOUSING

ASSEMBLY - left (includes item 26)

1шт.

28

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

1шт.

29

152127H1

BREATHER,1/8"-27, Short

VENT PLUG

1шт.

30

700706454

SEAL

2шт.

31

52290

BUSHING

1-3/4 X 14 GAUGE NRMB

1шт.

32

700706453

COLLAR

THREADED CLAMP COLLAR

1шт.
