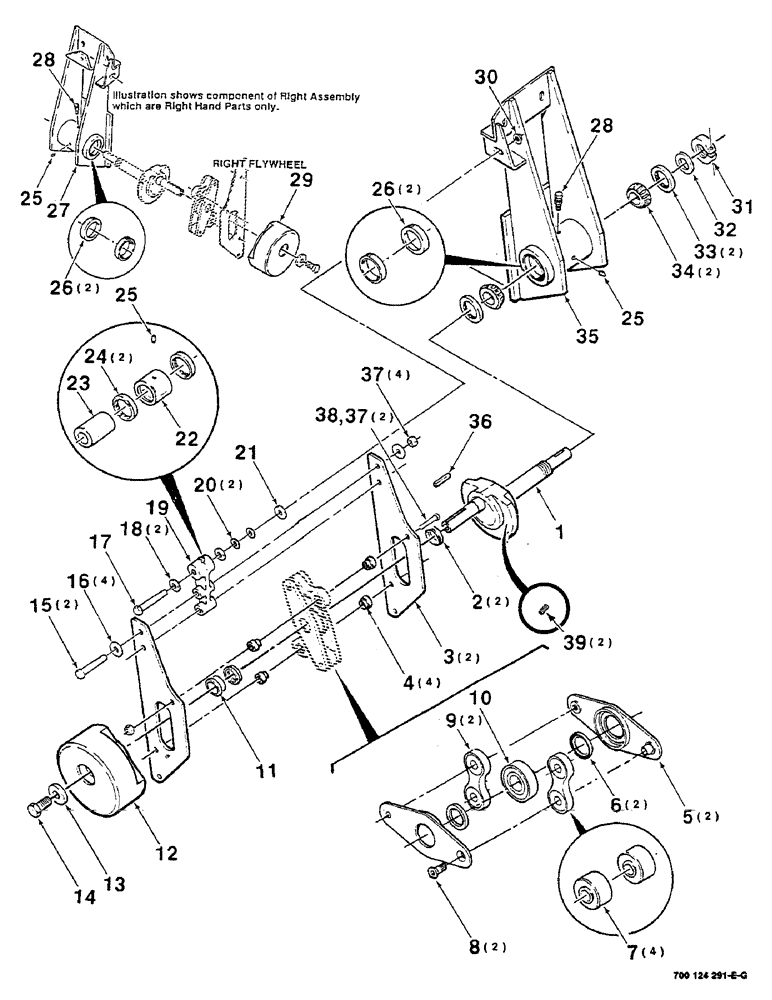

Запчасти Case IH 8840 (3-06) - SICKLE SWAYBAR ASSEMBLY (RIGHT AND LEFT), (S.N. CFH0032418 THRU CFH0032660) (58) - ATTACHMENTS/HEADERS

1

700130656

PITMAN

CRANK - Pitman (includes item 39)

1шт.

Ref #1 700130656 also uses 126-36 5/16X1-3/8 woodruff key

1шт.

2

700709815

RUBBER SEAL

- rubber

2шт.

3

700114636

PLATE

- swaybar, half

2шт.

4

700122815

SPACER

4шт.

5

700122818

SUPPORT

PLATE - link

2шт.

6

700709813

SEAL

- grease

2шт.

7

T39594

BALL BEARING,0.7505" ID x 1.7805" OD x 0.61"

BEARING

4шт.

8

164-130

HEX SOC SCREW,Flat Hd, 1/2" - 20 x 1 1/4"

1/2-13 X 1-1/4 HSFCSHCS

2шт.

9

700122817

LINK CONROD

LINK ASSEMBLY (includes item 7)

2шт.

10

173809C91

BEARING ASSY,35mm ID x 80mm OD x 21mm W

BEARING

1шт.

11

700121402

SPACER

1шт.

12

700117842

BALER FLYWHEEL

FLYWHEEL - left

1шт.

13

700114639

WASHER

1шт.

14

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

1шт.

15

326-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

2шт.

16

1660993

WASHER

4шт.

17

326-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 8

1шт.

18

700119659

WASHER,16.66mm ID x 44.45mm OD x 6.35mm Thk

2шт.

19

700114625

LINK

ASSEMBLY - upper (includes items 22, 23, 24 and 25)

1шт.

20

495-11066

WASHER,5/8", SAE

5/8 X 14 GAUGE WRMB

2шт.

21

495-21069

WASHER,5/8"

5/8 WIDE PLAIN WASHER

1шт.

22

B18254

NEEDLE BEARING,Needle, 25.4mm ID x 31.75mm OD x 25.4mm W

BEARING - needle

1шт.

23

700114599

BUSHING,16.27mm ID x 25.55mm OD x 38mm L

1шт.

24

697494R91

OIL SEAL

SEAL - grease

2шт.

25

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

3шт.

26

170254R1

BEARING, CUP

BEARING CUP

4шт.

27

700114609

HOUSING

ASM, right (includes item 26))

1шт.

28

152127H1

BREATHER,1/8"-27, Short

PLUG - vent

2шт.

29

700117843

BALER FLYWHEEL

FLYWHEEL, right

1шт.

30

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

1шт.

31

700706453

COLLAR

- clamp

1шт.

32

NLS

NO LONGER SERVICED

1шт.

33

700706454

SEAL

- grease

2шт.

34

298194R91

ROLLER BEARING,44.45mm ID x 29.37mm W

BEARING CONE

2шт.

35

700114608

HOUSING

ASM, left (includes item 26)

1шт.

36

761312

KEY

5/16 X 5/16 X 2-1/2 KEY

1шт.

37

429-1010

NUT,5/8"-11, G8

6шт.

38

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

39

483-13812

SET SCREW,Hex Soc, 3/8"-16 x 3/4"

3/8 X 3/4 CPHSSS

2шт.
