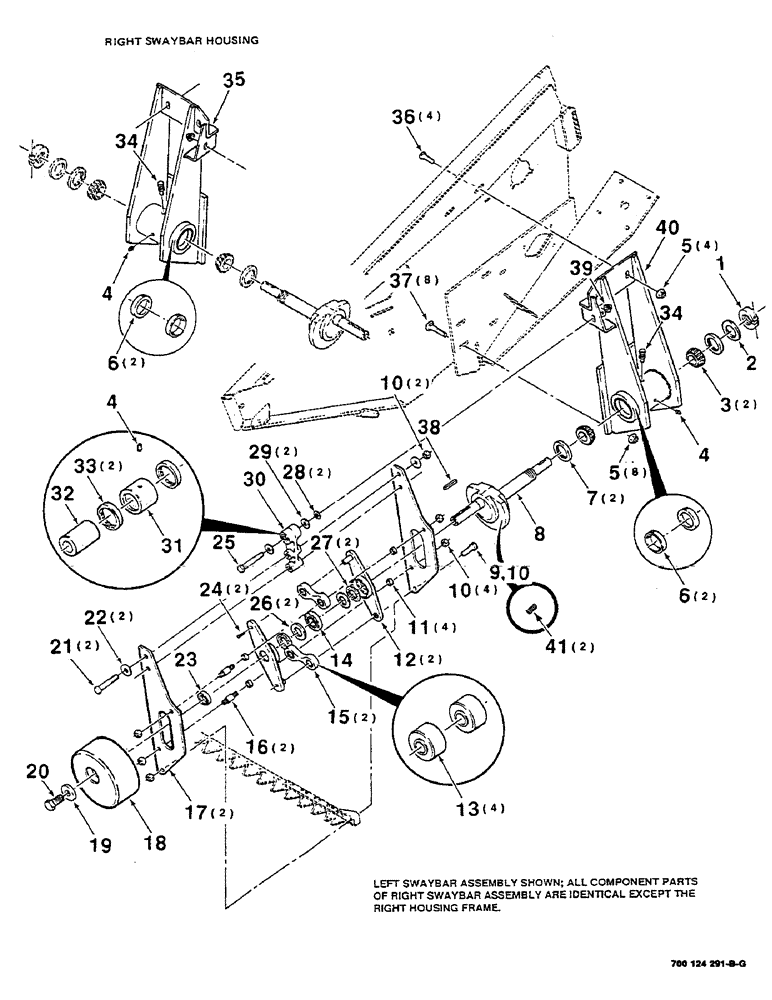

Запчасти Case IH 8840 (3-02) - SICKLE SWAYBAR ASSEMBLY (RIGHT AND LEFT), (S.N. CFH0032001 THRU CFH0032226) (58) - ATTACHMENTS/HEADERS

1

700706453

COLLAR

- clamp

1шт.

2

NLS

NO LONGER SERVICED

1шт.

3

298194R91

ROLLER BEARING,44.45mm ID x 29.37mm W

BEARING CONE

2шт.

4

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

3шт.

5

7704919

FLANGE NUT,Flg, 5/8"-11, G8

5/8-11 HFN GR8

12шт.

6

170254R1

BEARING, CUP

BEARING CUP

4шт.

7

700706454

SEAL

- grease

2шт.

8

700130656

PITMAN

CRANK - Pitman (includes item 41)

1шт.

9

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

Ref #8 700130656 also uses 126-36 5/16X1-3/8 woodruff key

1шт.

10

429-1010

NUT,5/8"-11, G8

7шт.

11

700114633

SPACER

4шт.

12

700114628

COVER PLATE

PLATE (S.N. CFH0032001 thru CFH0032226)

2шт.

700121401

COVER PLATE

PLATE (S.N. CFH0032227 thru CFH0032417)

2шт.

13

7714629

BALL BEARING,17mm ID x 40mm OD x 20.64mm W

BEARING

4шт.

14

173809C91

BEARING ASSY,35mm ID x 80mm OD x 21mm W

BEARING

1шт.

15

700114630

LINK ASSY.

LINK ASSEMBLY (includes item 13)

2шт.

16

700114635

PIN,16.99mm OD x 77mm L

- link

2шт.

17

700114636

PLATE

- swaybar, half

2шт.

18

700114638

BALER FLYWHEEL

FLYWHEEL (S.N. CFH0032001 thru CFH0032226)

2шт.

700117842

BALER FLYWHEEL

FLYWHEEL - L (S.N. CFH0032227 thru CFH0032417)

2шт.

700117843

BALER FLYWHEEL

FLYWHEEL - R (S.N. CFH0032227 thru CFH0032417)

2шт.

19

700114639

WASHER

1шт.

20

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

1шт.

21

326-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

2шт.

22

495-21069

WASHER,5/8"

5/8 WIDE PLAIN WASHER

2шт.

23

700114634

SPACER

1шт.

24

164-130

HEX SOC SCREW,Flat Hd, 1/2" - 20 x 1 1/4"

1/2-13 X 1-1/4 HSFCSHCS

2шт.

item# 24 p/n 164-130, per print found part to be .5-20 length 1.25 LLB 8-5-99

1шт.

25

326-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 8

1шт.

26

700114632

WASHER

- special

2шт.

27

700708612

WASHER

- felt

2шт.

28

495-11066

WASHER,5/8", SAE

5/8 X 14 GAUGE WRMB

2шт.

29

6855423

WASHER

2шт.

30

700114625

LINK

ASM - upper (includes items 31, 32, 33 and 4)

1шт.

31

B18254

NEEDLE BEARING,Needle, 25.4mm ID x 31.75mm OD x 25.4mm W

BEARING - needle

1шт.

32

700114599

BUSHING,16.27mm ID x 25.55mm OD x 38mm L

1шт.

33

697494R91

OIL SEAL

SEAL - grease

2шт.

34

152127H1

BREATHER,1/8"-27, Short

PLUG - vent

1шт.

35

700114609

HOUSING

ASM - swaybar, right (includes item 6)

1шт.

36

700709171

SQUARE BOLT

5/8-11 X 1-1/4 RHSNB GR8 NP

4шт.

37

700709172

SQUARE BOLT

5/8-11 X 1-3/4 RHSNB GR8 NP

8шт.

38

761312

KEY

5/16 X 5/16 X 2-1/2 KEY

1шт.

39

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

1шт.

40

700114608

HOUSING

ASM - swaybar, left (includes item 6)

1шт.

41

483-13812

SET SCREW,Hex Soc, 3/8"-16 x 3/4"

3/8 X 3/4 CPHSSS

2шт.
