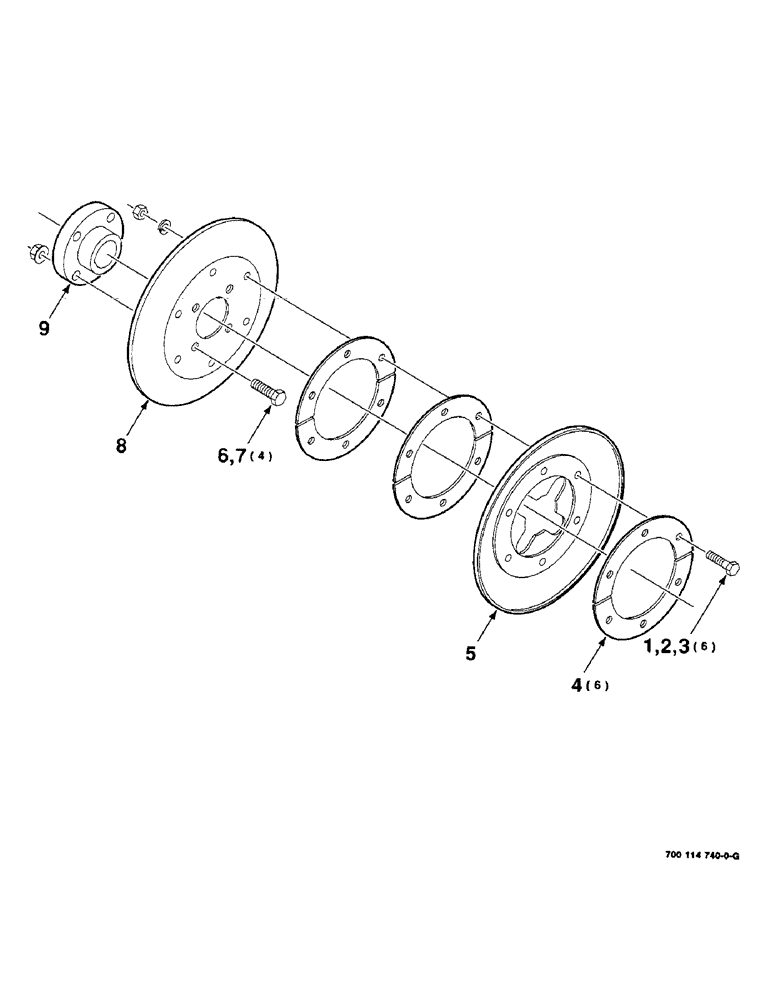

Запчасти Case IH 8840 (2-46) - SHEAVE ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

5/16-18 X 1-1/4 C

6шт.

2

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

3

425-105

NUT,5/16"-18, G5

6шт.

4

6181705

SHIM

- spacer

6шт.

5

2400026

SHEAVE

HALF

1шт.

6

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

7

231-5146

FLANGE NUT,3/8"-16

4шт.

8

2400027

SHEAVE

HALF

1шт.

9

6574859

HUB

1шт.
