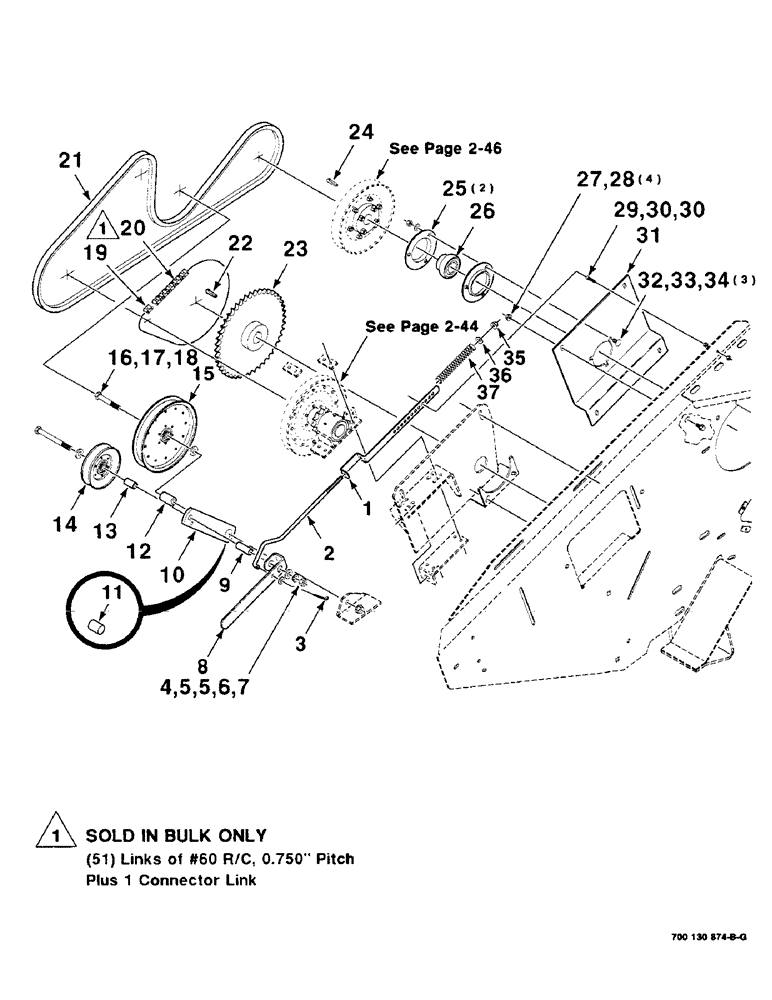

Запчасти Case IH 8840 (2-42) - REEL DRIVE ASSEMBLY (S.N. CFH0032865 AND LATER) (58) - ATTACHMENTS/HEADERS

1

700114569

ANCHOR

- adjustable

1шт.

2

700114570

ROD

SPRING

1шт.

3

432-1016

COTTER PIN,5/32" x 1"

5/32" x 1"

1шт.

4

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1/2-13 X 5 C

1шт.

5

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

2шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

7

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

8

700114571

LEVER

1шт.

9

700114572

TUBE,19.05 mm OD, 43 mm Length

- pivot

1шт.

10

700114727

ARM

ASSEMBLY (includes item 11)

1шт.

11

740217

BUSHING

- oilite

1шт.

12

1661945

SPACER

1шт.

13

6167472

SPACER

1шт.

14

053553

PULLEY

SHEAVE - idler

1шт.

15

54510

FRONT IDLER

IDLER - flat

1шт.

16

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1/2-13 X 3-1/4 C

1шт.

17

495-11053

WASHER,1/2", SAE

1шт.

18

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

19

241-1416

LINK

- connector, #60 R/C

1шт.

20

7086002

CHAIN (AG)

CHAIN - roller, #60 (10 foot bulk)

1шт.

21

55574

BELT

V-BELT

1шт.

22

61895

BUCKET TOOTH KEY

5/16 X 2-1/4 KEY - gib

1шт.

23

700114718

SPROCKET

WA - 44 tooth

1шт.

24

Q3914

KEY,Gib, 1/4" Sq x 1 1/2"

1/4 X 1-1/2 KEY - gib

1шт.

25

T27207

FLANGED BEARING

FLANGE - bearing

2шт.

26

485259R91

BEARING ASSY,1.2505" ID x 72 mm OD x 1.4844"

- spherical

1шт.

27

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

4шт.

28

231-5146

FLANGE NUT,3/8"-16

4шт.

29

61-32516

HEX SOC SCREW,1/4"-20 x 1"

1/4-20 X 1 HSHCS SPL

1шт.

30

425-104

NUT,1/4"-20, Cl 5

2шт.

31

700114731

SUPPORT

MOUNTING - auger, bearing

1шт.

32

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

3шт.

33

492-11038

LOCK WASHER,3/8"

3шт.

34

425-106

NUT,3/8"-16, Cl 5

3шт.

35

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

1шт.

36

495-21044

WASHER,3/8"

1шт.

37

1712967

SPRING

- compression

1шт.
