(2-38) - SHOCK ABSORBER DRIVESHAFT ASSEMBLY, (700715713 SHOCK

Запчасти Case IH 8840 (2-38) - SHOCK ABSORBER DRIVESHAFT ASSEMBLY, (700715713 SHOCK (58) - ATTACHMENTS/HEADERS

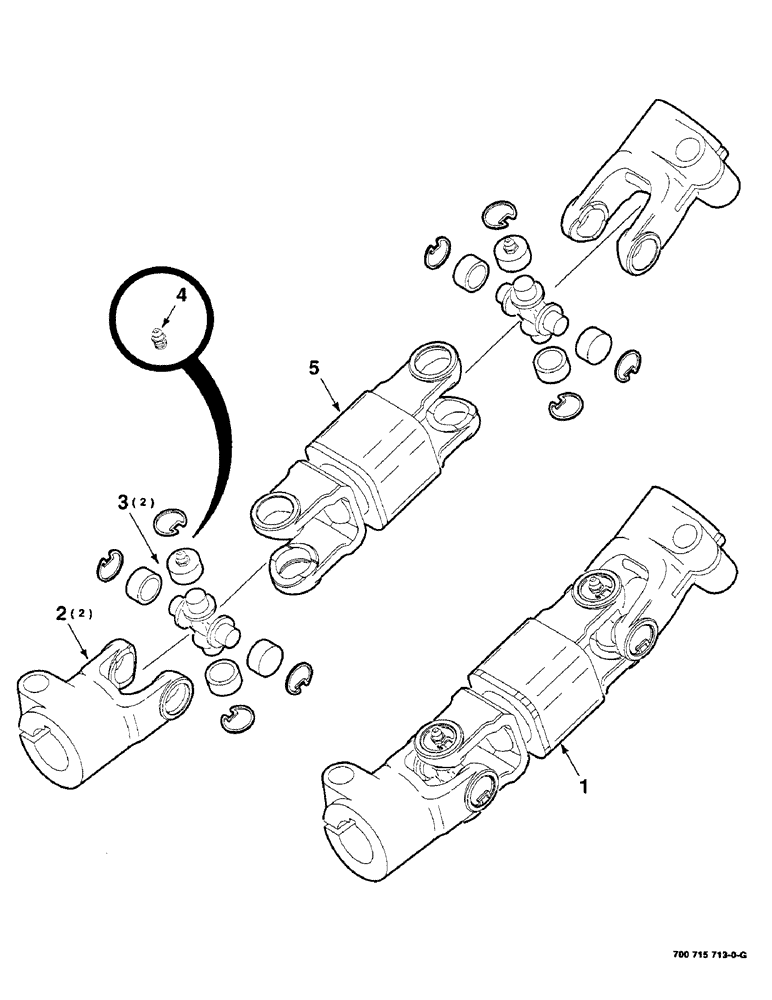

Схема запчастей Case IH 8840 - (2-38) - SHOCK ABSORBER DRIVESHAFT ASSEMBLY, (700715713 SHOCK (58) - ATTACHMENTS/HEADERS
2
1
3
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700715713

UNIVERSAL JOINT

SHOCK ABSORBER DRIVESHAFT ASSEMBLY, complete

1шт.

2

700705535

YOKE

CLAMP YOKE

2шт.

3

700711843

FLEXIBLE JOINT

CROSS AND BEARING REPAIR KIT (includes item 4)

2шт.

4

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1/4-27 X 65 DEGREE ZERK

1шт.

5

700712426

SHOCK ABSORBER

CENTER SECTION

1шт.
