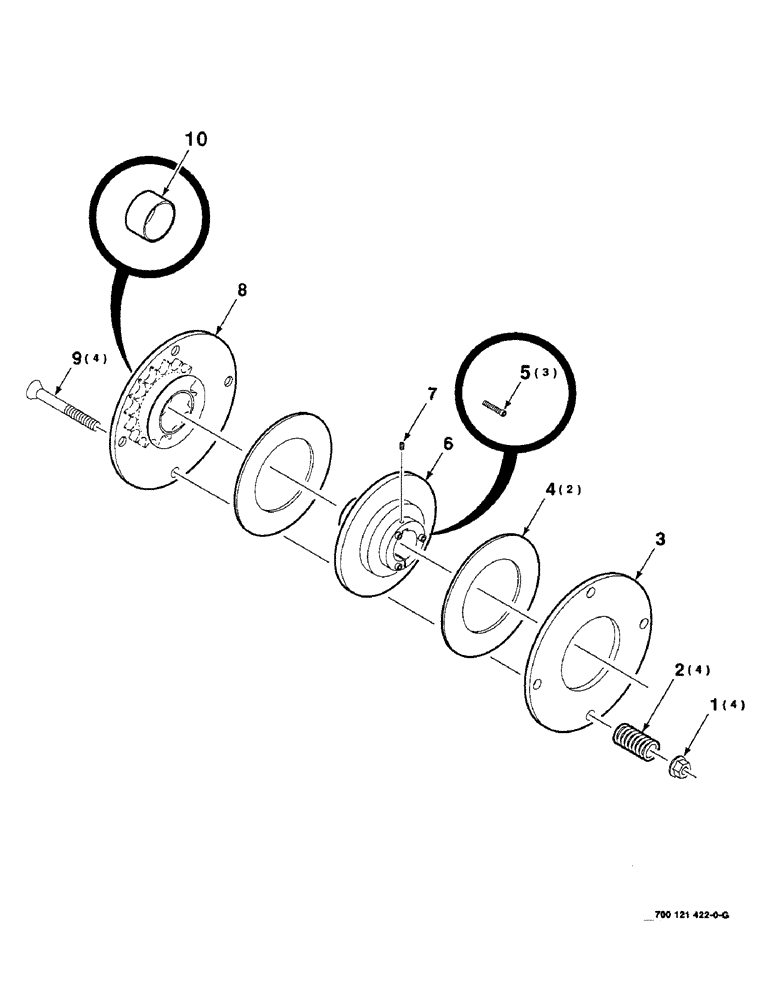

Запчасти Case IH 8840 (2-34) - CLUTCH ASSEMBLY - LOWER (58) - ATTACHMENTS/HEADERS

1

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

4шт.

2

58644

SPRING

- compression

4шт.

3

700121425

DISC

- clutch

1шт.

4

700711024

DISC

- friction

2шт.

5

61-31016

HEX SOC SCREW,#10 - 24 x 1"

SCREW, Hex Soc Hd, #10-24 x 1"

3шт.

6

700121423

HUB

ASSEMBLY (includes item 5)

1шт.

7

483-1104

SET SCREW,Hex Soc, #10-24 x 1/4"

#10-24 X 1/4 CPHSSS NP

1шт.

8

700121427

SPROCKET

ASSEMBLY - 50B16 tooth (includes item 10)

1шт.

9

771972

BOLT

3/8-16 X 3 HSFCHCS SPL

4шт.

10

700709826

BUSHING

1шт.
