(2-26) - GEARBOX ASSEMBLY (RIGHT) (700706594 GEARBOX ASSEMBLY

Запчасти Case IH 8840 (2-26) - GEARBOX ASSEMBLY (RIGHT) (700706594 GEARBOX ASSEMBLY (58) - ATTACHMENTS/HEADERS

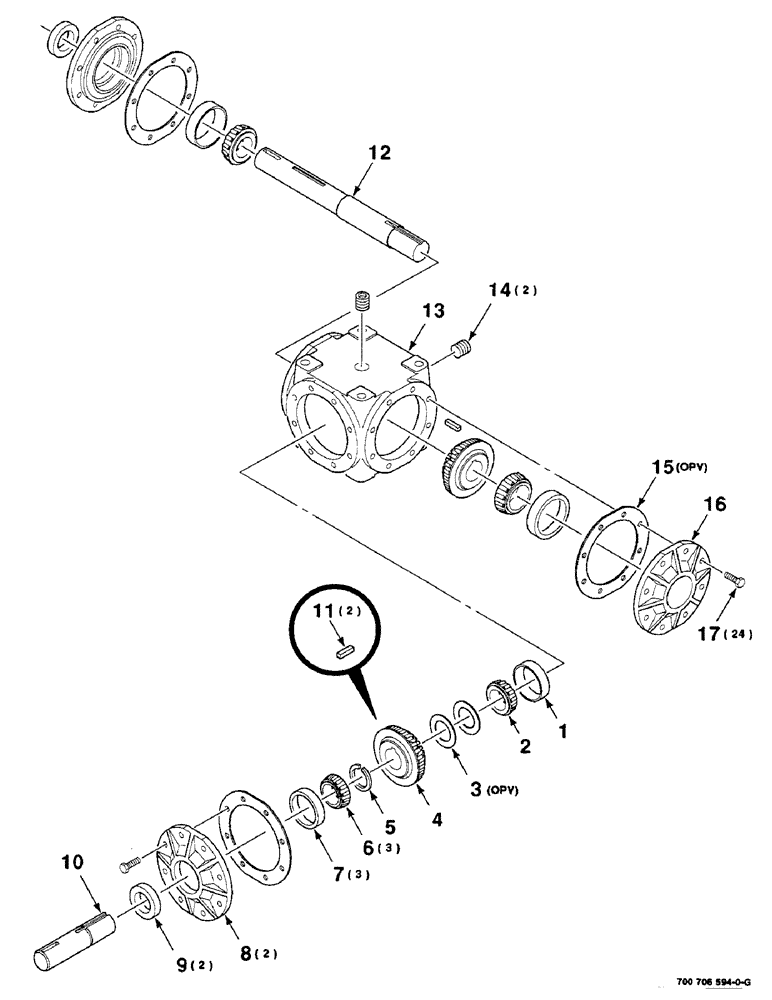

Схема запчастей Case IH 8840 - (2-26) - GEARBOX ASSEMBLY (RIGHT) (700706594 GEARBOX ASSEMBLY (58) - ATTACHMENTS/HEADERS
9
11
2
10
7
8
3
13
17
4
5
15
14
6
16
1
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700706594

GEARBOX

ASSEMBLY - complete

1шт.

1

651817R1

BEARING CUP

BEARING - cup

1шт.

2

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING - cone

1шт.

3

753426

SHIM

- (.005)

1шт.

753434

SHIM

- (.010)

1шт.

4

8806317

GEAR-SET

MATCHED GEARS (includes item 11)

1шт.

5

757229

RING, SNAP

RING - retainer

1шт.

6

T20939

ROLLER BEARING,1.25" ID x 0.771"

BEARING - cone

3шт.

7

710350

BRACKET,69.037 mm OD x 15.875 mm

BEARING - cup

3шт.

8

757120

CAP

2шт.

9

76961C1

OIL SEAL

- oil

2шт.

10

700707148

SHAFT

- short

1шт.

11

753574

KEY

- tapered

2шт.

12

700707149

SHAFT

- long

1шт.

13

700100292

HOUSING

1шт.

14

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

- hex countersunk

2шт.

15

1702216

GASKET

- aluminum (.015)

1шт.

1702224

GASKET

- aluminum (.005)

1шт.

1702232

GASKET

- aluminum (.003)

1шт.

16

757054

CAP

- blank

1шт.

17

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

C Hex, 5/16"-18 x 1", G5, Full Thd

24шт.
