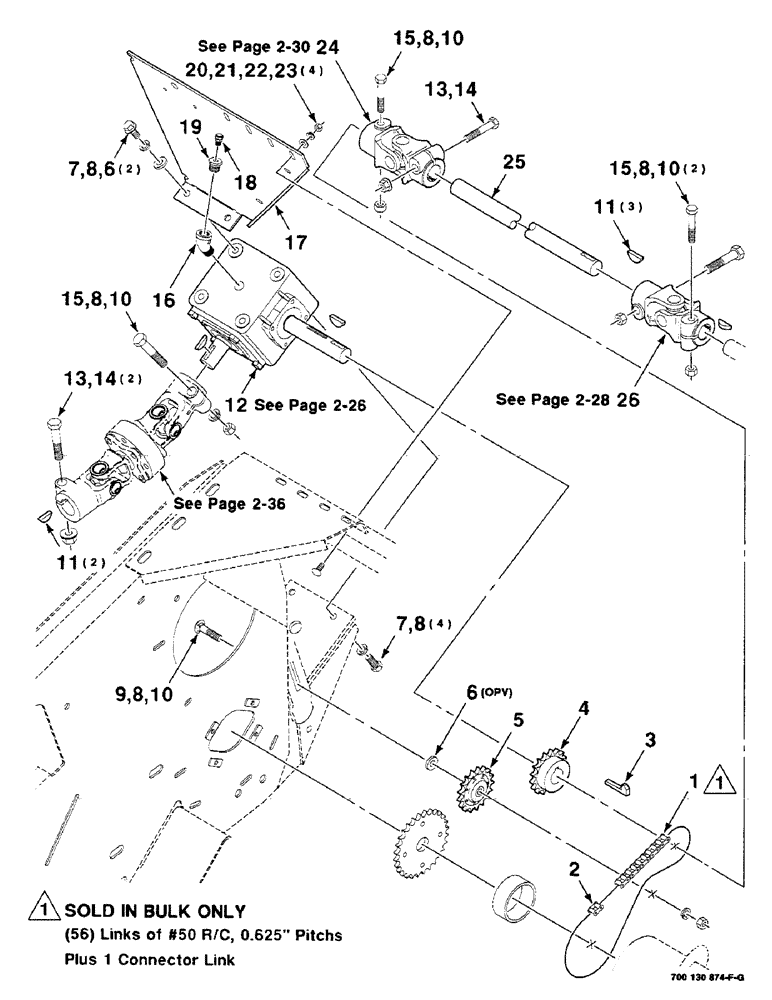

Запчасти Case IH 8840 (2-20) - DRIVE ASSEMBLY (RIGHT) (S.N. CFH0032001 THRU CFH0032864) (58) - ATTACHMENTS/HEADERS

1

700704752

CHAIN

- roller, #50 o-ring (10 foot bulk)

1шт.

2

700709539

LINK,15.88mm Pitch

LINK - connector, #50, Diamond

1шт.

700702950

LINK

- connector, #50, Daido

1шт.

3

61424

KEY

1/4 X 1/4 X 1-1/4 GIB KEY

1шт.

4

700708837

SPROCKET

- #50, 16 tooth

1шт.

5

7087398

DRIVE SPROCKET

SPROCKET - idler, 17 tooth

1шт.

6

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

3шт.

7

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

6шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

11шт.

9

433-836

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

1/2-13 X 2-1/4 RHSNB

1шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

5шт.

11

126-36

WOODRUFF KEY,#23, 5/16" x 1 3/8"

5шт.

12

700706594

GEARBOX

ASSEMBLY

1шт.

13

326-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

3шт.

14

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

2шт.

15

703736

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2-13 X 2-3/4 C

4шт.

16

137894

ELBOW,45 Degree, 1/2" NPT Street

1/2 X 45 DEGREE STREET ELL

1шт.

17

700114739

PANEL

- rear, right

1шт.

18

152127H1

BREATHER,1/8"-27, Short

1/8 PLUG - vent

1шт.

19

444030

REDUCER,1/2"-14 NPTF x 1/8"-27 Fem NPTF

1/8 X 1/2 BUSHING - reducer

1шт.

20

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

4шт.

21

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

4шт.

22

492-11038

LOCK WASHER,3/8"

4шт.

23

425-106

NUT,3/8"-16, Cl 5

4шт.

24

700715721

UNIVERSAL JOINT

U-JOINT ASSEMBLY

1шт.

25

700114741

SHAFT

(14 foot)

1шт.

700114742

SHAFT

(16 foot)

1шт.

26

700715720

UNIVERSAL JOINT

U-JOINT ASSEMBLY

1шт.
