(2-18) - U-JOINT ASSEMBLY - 16 FOOT (UPPER HAY CONDITIONER DRIVE)

Запчасти Case IH 8840 (2-18) - U-JOINT ASSEMBLY - 16 FOOT (UPPER HAY CONDITIONER DRIVE) (58) - ATTACHMENTS/HEADERS

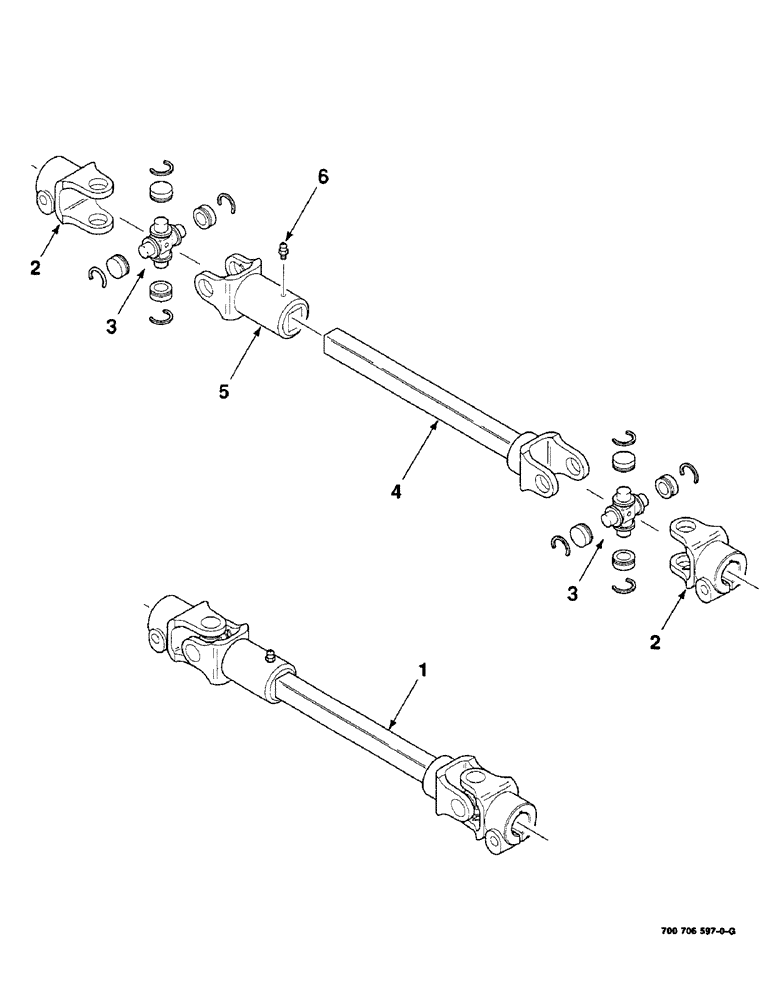

Схема запчастей Case IH 8840 - (2-18) - U-JOINT ASSEMBLY - 16 FOOT (UPPER HAY CONDITIONER DRIVE) (58) - ATTACHMENTS/HEADERS
2
3
6
3
2
5
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700706597

UNIVERSAL JOINT

U-JOINT ASSEMBLY COMPLETE

1шт.

2

757716

CLAMP

YOKE

2шт.

3

757443

U-JOINT SPIDER

CROSS AND BEARING REPAIR KIT

2шт.

4

700707159

YOKE

AND SHAFT

1шт.

5

700704955

YOKE

1шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

Выбрано товаров: 6
