(2-16) - U-JOINT ASSEMBLY - 14 FOOT (UPPER HAY CONDITIONER DRIVE)

Запчасти Case IH 8840 (2-16) - U-JOINT ASSEMBLY - 14 FOOT (UPPER HAY CONDITIONER DRIVE) (58) - ATTACHMENTS/HEADERS

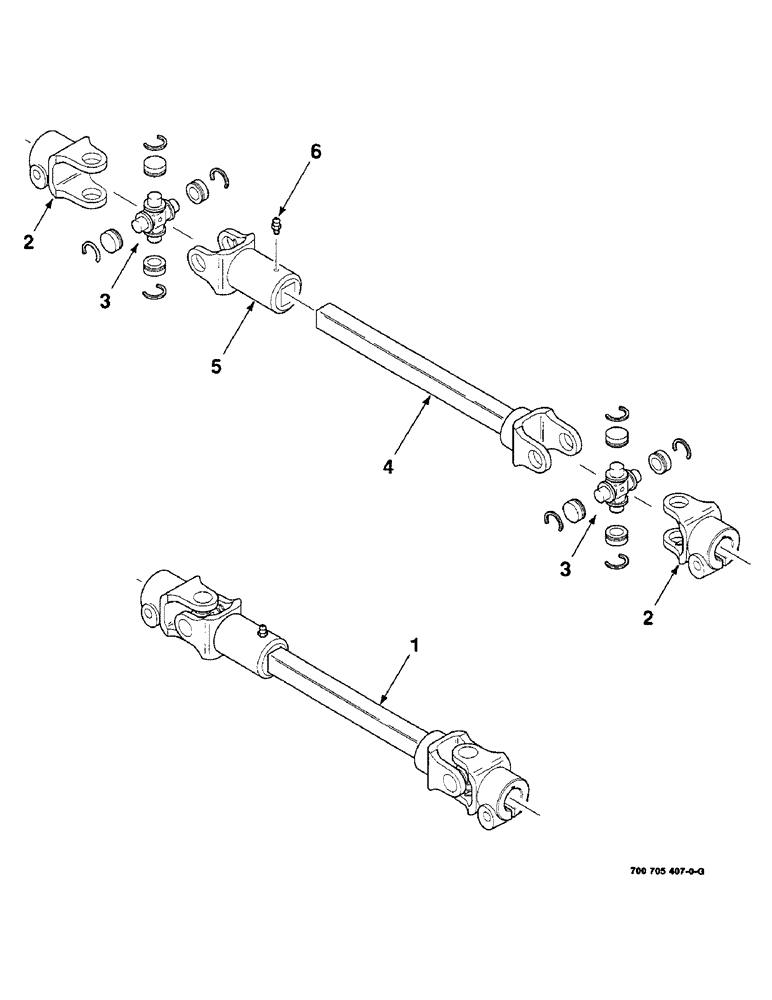

Схема запчастей Case IH 8840 - (2-16) - U-JOINT ASSEMBLY - 14 FOOT (UPPER HAY CONDITIONER DRIVE) (58) - ATTACHMENTS/HEADERS
2
4
3
3
6
1
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700705407

DRIVE SHAFT

U-JOINT ASSEMBLY COMPLETE

1шт.

2

757716

CLAMP

YOKE

2шт.

3

757443

U-JOINT SPIDER

CROSS AND BEARING REPAIR KIT

2шт.

4

700704954

YOKE

AND SHAFT

1шт.

5

700704955

YOKE

1шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.
