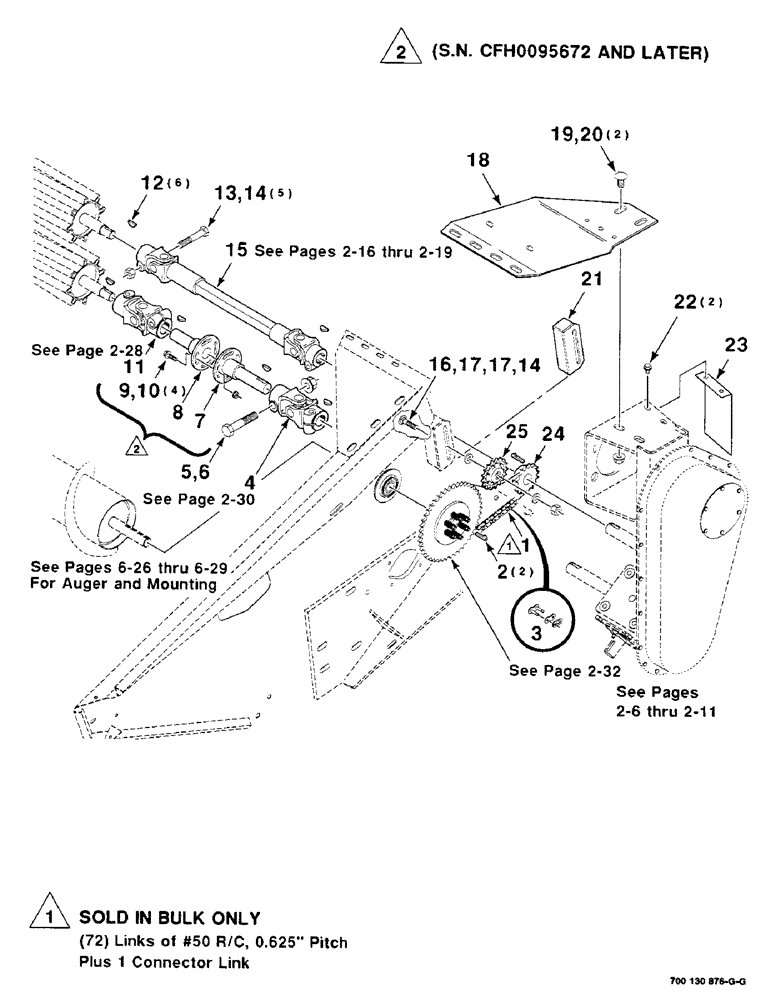

Запчасти Case IH 8840 (2-14) - AUGER DRIVE ASSEMBLY (S.N. CFH0095400 AND LATER) (58) - ATTACHMENTS/HEADERS

1

700704752

CHAIN

#50 ROLLER CHAIN (o-ring, 10 foot bulk)

1шт.

2

61424

KEY

1/4 X 1-1/4 GIB KEY

2шт.

3

700702950

LINK

- connector, #50, Daido

1шт.

700709539

LINK,15.88mm Pitch

LINK - connector, #50, Diamond

1шт.

4

700715721

UNIVERSAL JOINT

U-JOINT ASSEMBLY

1шт.

5

326-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

1шт.

6

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

1шт.

7

700133250

SHAFT

left (14 foot)

1шт.

700133251

SHAFT

left (16 foot)

1шт.

8

700133248

SHAFT

14' right

1шт.

REF 8 (700133248): If you are looking for the shaft that is for 16 foot, it is 700133248 (works for both the 14 and 16 foot) svp 4/7/98

1шт.

9

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

4шт.

10

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

4шт.

11

700715720

UNIVERSAL JOINT

U-JOINT ASSEMBLY

1шт.

12

126-36

WOODRUFF KEY,#23, 5/16" x 1 3/8"

6шт.

13

703736

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2-13 X 2-3/4 C

5шт.

14

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

6шт.

15

700705407

DRIVE SHAFT

U-JOINT ASSEMBLY (14 foot)

1шт.

700706597

UNIVERSAL JOINT

U-JOINT ASSEMBLY (16 foot)

1шт.

16

433-832

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

1/2-13 X 2 RHSNB

1шт.

17

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

2шт.

18

700119007

SUPPORT

- upper

1шт.

19

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 X 1 RHSNB

2шт.

20

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

21

700114672

MOUNTING PARTS

IDLER MOUNTING

1шт.

22

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

23

700114536

SHIELD

- rear

1шт.

24

700708837

SPROCKET

- 50B16 tooth

1шт.

25

7087398

DRIVE SPROCKET

SPROCKET - idler, 50B17 tooth

1шт.
